InWin A5 Black Mid Tower

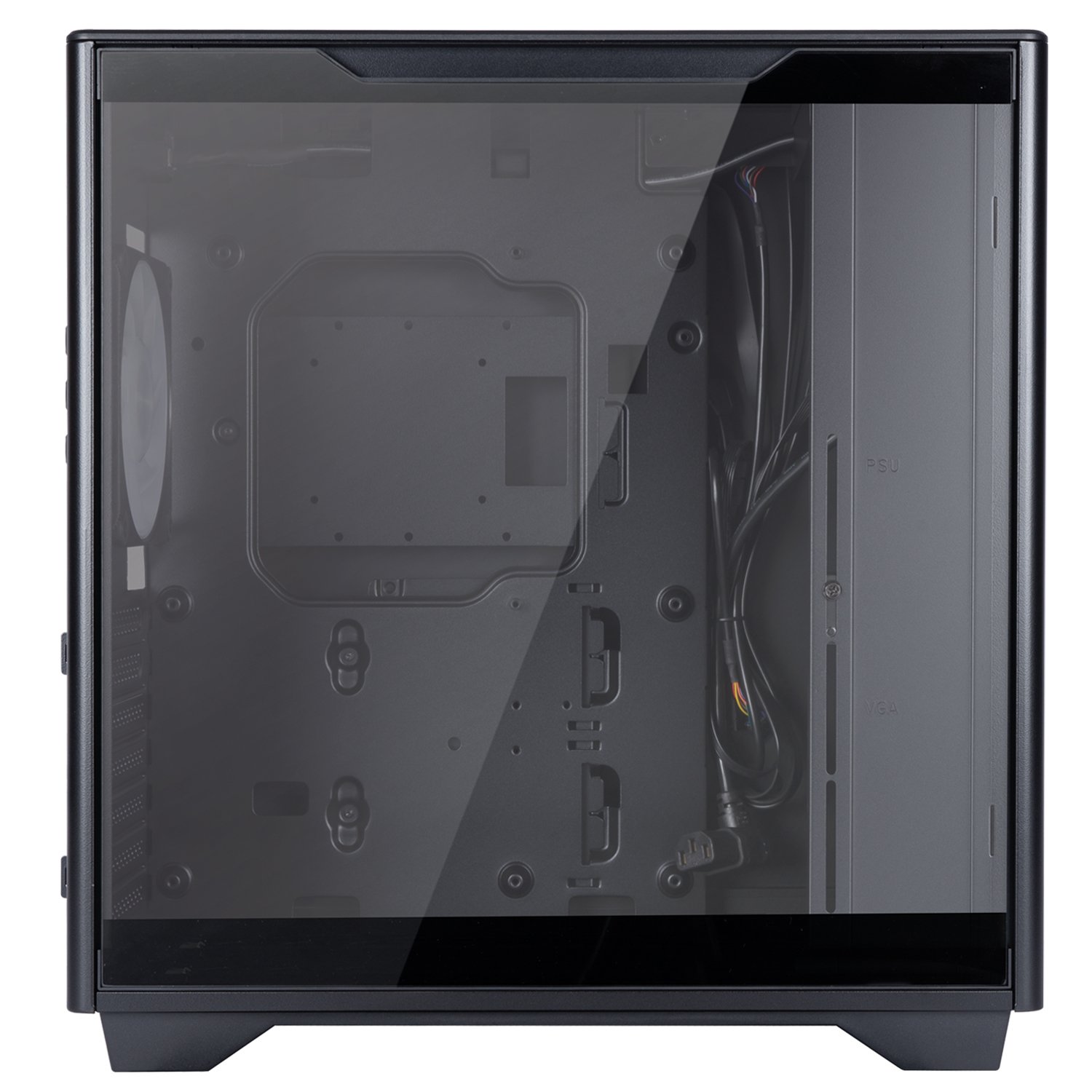

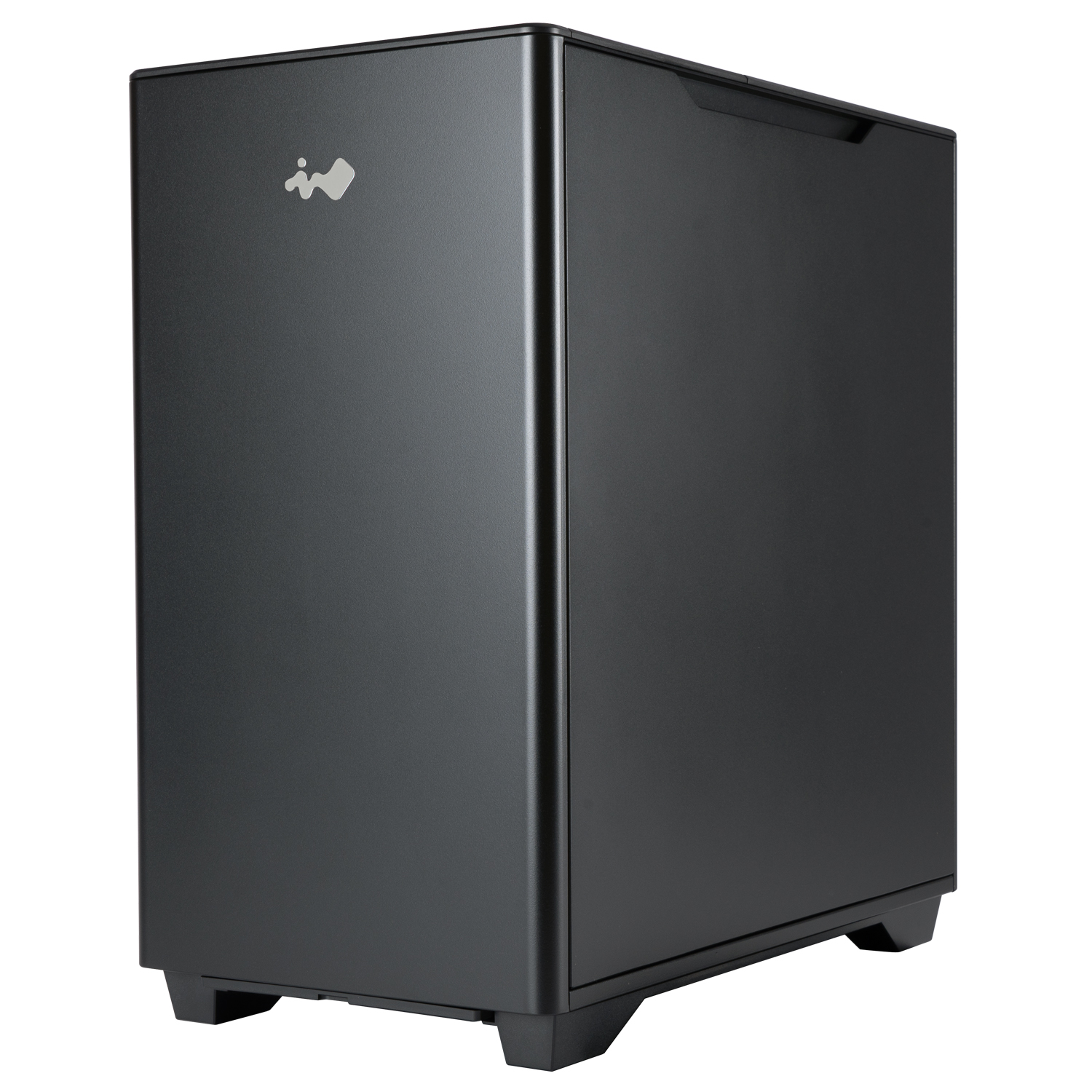

The A5 is a compact case that does not occupy much space and yet makes the most of its modest dimensions. It’s smaller than most mid towers, 37% smaller by volume than a standard mid tower, but allows PC builders to assemble a powerful rig! The tinted tempered glass side panel complements the A5’s overall modern vibe. The front panel is pristinely clean and is embellished with a golden sheet. The toolless tinted tempered glass side panel offers a refreshing view of the internal hardware! Meanwhile, the top panel, steel side panel, and bottom filter are screwless too for easy access and cleaning.

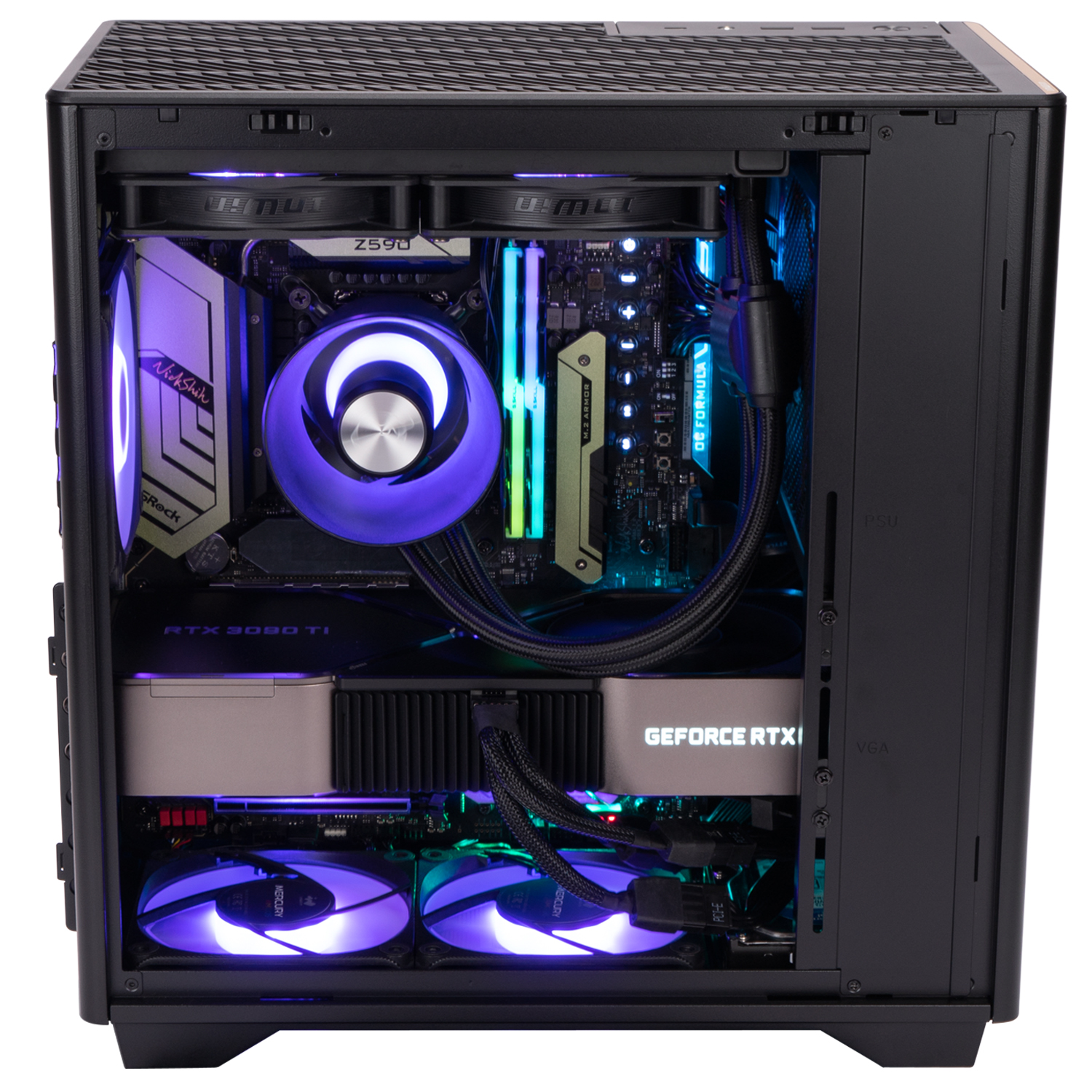

This mid tower can support up to E-ATX system builds while accommodating high-end graphics cards and power supply.

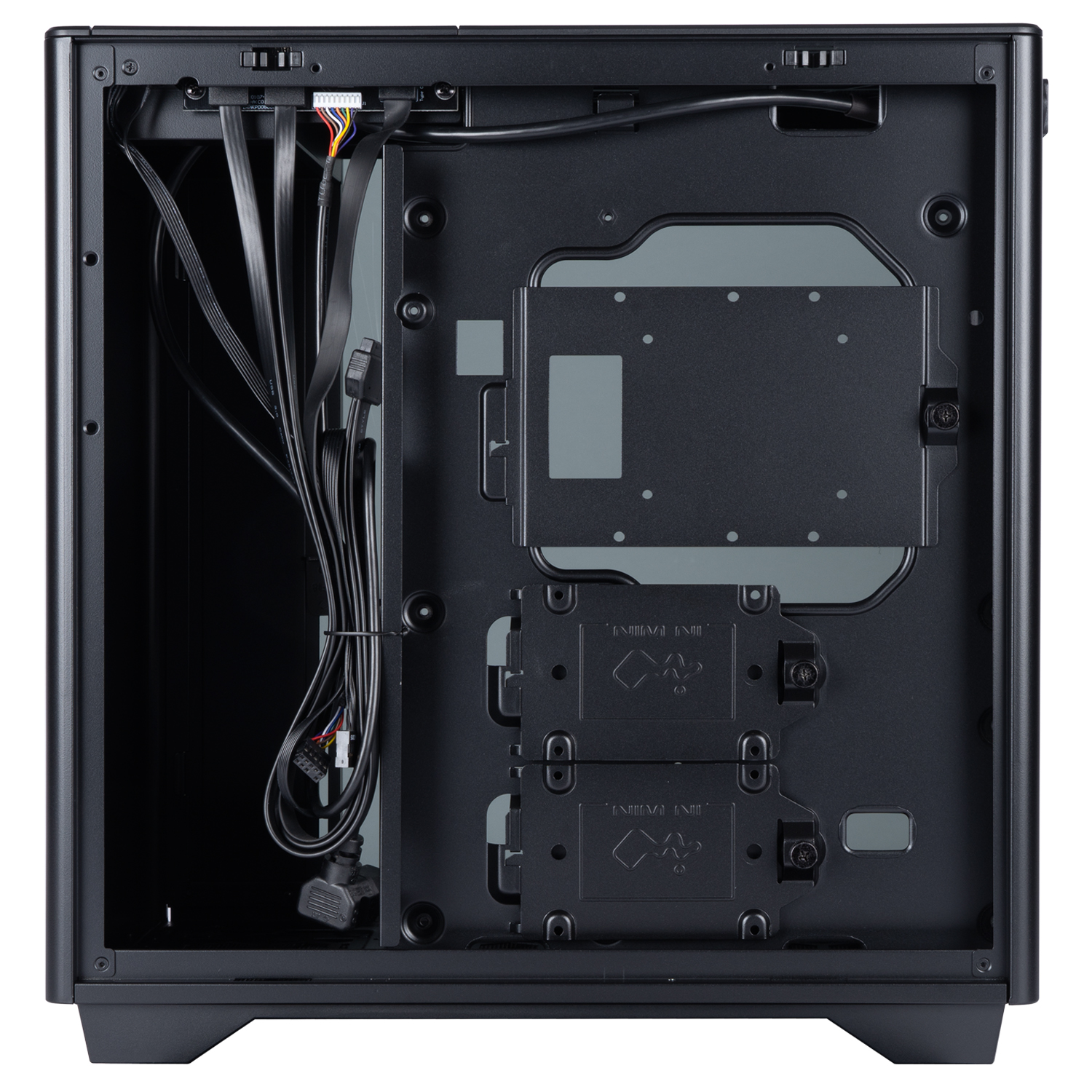

The A5 supports multiple 2.5” / 3.5” storage devices. The case offers strategically placed channels behind the motherboard tray for clean and easy cable management.

Since heat rises, the A5’s internal layout works in accordance to this fact. The top and bottom feature ventilated filter panels to combat dust and heat. With the PSU secured at the front, air can naturally propel upwards in the main chamber.

The A5 features one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports for fast charging speeds and outstanding data transfer rates and a headset audio jack utilizing the international CTIA standard.

Pre-installed silent ARGB fan AM120S provides powerful cooling performance within a slim 20 mm frame.

Highlights

• Case Type: Mid Tower
• Materials: SECC, Tempered Glass, PC-ABS
• Motherboard Compatibility: 12" x 11" E-ATX, ATX, Micro-ATX, Mini-ITX
• Expansion Slots: 7
• Drive Bays: 2 x 2.5", 2 x 2.5"/3.5"
• I/O Ports: 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1, HD Audio Combo (CTIA – SPK/Mic)
• Fans: Top: 2 x 120 mm, Rear: 1 x Mercury AM120S ARGB Fan, Bottom: 2 x 120 mm
• Maximum GPU Length: 340 mm
• Maximum CPU Heatsink Height: 162 mm
• Water Cooling Radiator: Top: 1 x 240 mm
• Power Supply Compatibility: PSII: ATX12V Length between 140 - 200 mm (PSUs longer than 170 mm will need to build with GPUs 280 mm or shorter)
• Product Dimensions (L x W x H): 15.7 x 8.5 x 16", 399 x 215 x 407 mm
