CTE E600 MX Hydrangea Blue

For our CTE E600 MX Hydrangea Blue we wanted to provide as many options as possible to build your system the way you want. Built with features such as three different GPU mounting points, two interchangeable front panels, and dual chambers for maximum flexibility. On the cooling side the E600 MX Hydrangea Blue is able to support up to 420mm AIO radiators on the front, rear, and side mounts as well as up to fourteen 120mm fans or twelve 140mm fans. (400mm riser cable included)

Included with the CTE E600 MX Hydrangea Blue, are one Tempered Glass panel to match the side panel and provide a panoramic view as well as a perforated panel for configurations that want as much airflow as possible. Accenting the interchangeable front panels is a fan tray capable of accepting up to 420mm AIO radiators and 360mm Distro Plates, as well as being fully removable for an open clean view into the chassis.

There are three different ways to mount your GPU: 1. Floating GPU: Placing the GPU in the middle of the chassis by using the enclosed floating GPU bracket and pre-configured 400mm long PCI-e 4.0 riser cable 2. Up Right: Hanging the GPU vertically 3. Up Right Forward: Placing it up-right with the graphics card facing forward to the side panel on the rotational PCI-e slots

The CTE E600 MX Hydrangea Blue comes with a 400mm PCI-e 4.0 Riser Cable to make best use of the three different GPU mounting options. Offering up to 16GT/S and supporting up to 64 GB/s (bidirectional) data transmission, the E600 MX Hydrangea Blue is ready for the most demanding of GPUs. Did we also mention the floating bracket also has three separate mounting points, so your GPUs is always centered.

The CTE E600 MX Hydrangea Blue offers multiple mounting locations and plenty of room to create your own configurations. DIY radiators up to 420mm in length can be installed on the front, rear, bottom and M/B side, and for AIO compatibility, up to 420mm/360mm radiators can be installed on the front, rear and M/B side, giving PC enthusiasts plenty of flexibility to create their ideal setup.

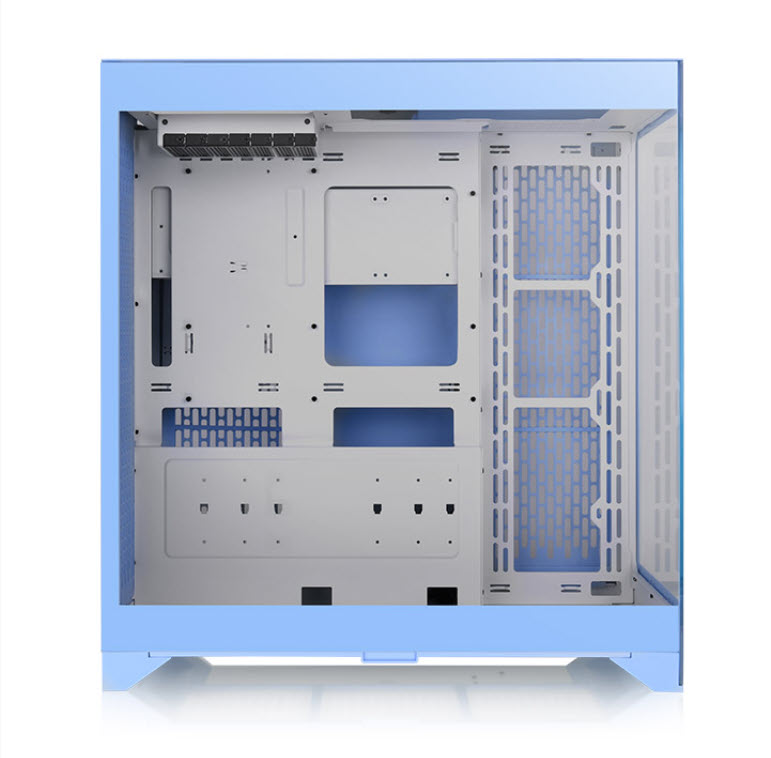

The focus for CTE (Centralized Thermal Efficiency) was to provide high level of thermal performance by altering our approach to traditional case design. The result was a design that utilizes a 90- degree rotated motherboard tray to provide not only more airflow pathways but also more efficient airflow pathways.

With the new fan trays being able to accept up to three 140mm or 120mm fans as well as up to a 420mm AIO Radiator the CTE chassis provides lots of options whether you choose Air, AIO, or DIY Liquid Cooling for your build. Since the motherboard tray has been rotated, direct intake airflow from each of the motherboard trays can more efficiently be directed toward components like the CPU and GPU and then exhausted with the assistance of natural convection, the system.

The rotation of the motherboard tray not only allows the CTE design to bring the CPU and GPU close to intake sources but goes one step further in providing them each their own intake sources with space for up to three 140mm/120mm fans or a radiator up to 420mm.

Highlights

• Series: CTE
• CASE TYPE: Mid Tower
• SIDE PANEL: 4mm Tempered Glass x 2
• MOTHERBOARD: 6.7" x 6.7" (Mini ITX)
• EXPANSION SLOTS: 7
• Drives: 2 x 2.5", 2 x 3.5"
• I/O PORT: USB 3.0 x 2
• PSU: Standard PS2 PSU (optional)
• FAN SUPPORT: Front - 3 x 120mm/3 x 140mm, Top - 2 x 120mm, Right - 3 x 120mm/3 x 140mm, Rear(M/B Side) - 3 x 120mm/3 x 140mm, Bottom - 3 x 120mm/3 x 140mm
• RADIATOR SUPPORT: Front: 1 x 360mm
• CPU cooler max height: 166mm
• VGA max length: 415mm (with radiator), 443.8mm (without radiator)
• PSU max length: 220mm
