Fractal Design Ridge Black

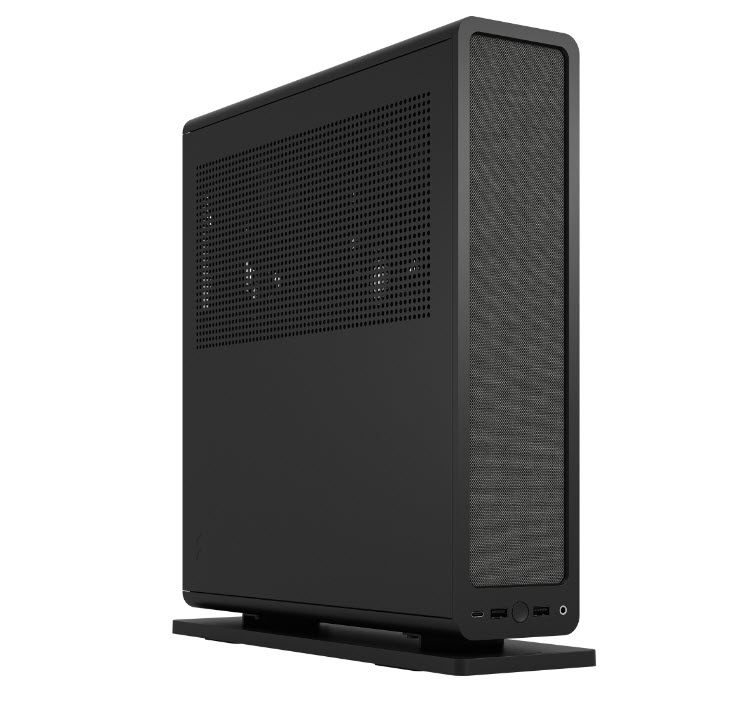

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
Carefully designed to occupy as little desktop space as possible, the discreet Ridge blends in as easily in the den as it does in the living room. This flexible SFF case gives you a lot of creative freedom when building your system. For example, you can use a 120 mm radiator (without full-length GPU), a 57mm thick GPU with the included 2x 140 mm fans and even a 70 mm CPU cooler. All panels are ventilated, enabling the Ridge to run much cooler than other cases its size and the front fabric can be swapped out fast to make the case truly your own.
Highlights
- Form Factor: SSF
- Motherboard: Mini-ITX
- Expansion slots: 3-slot
- Front interface: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
- Dedicated 2.5" drive mounts: 4 x Total
- Total fan mounts: 2 x 120/140 mm and 3 x 80 mm

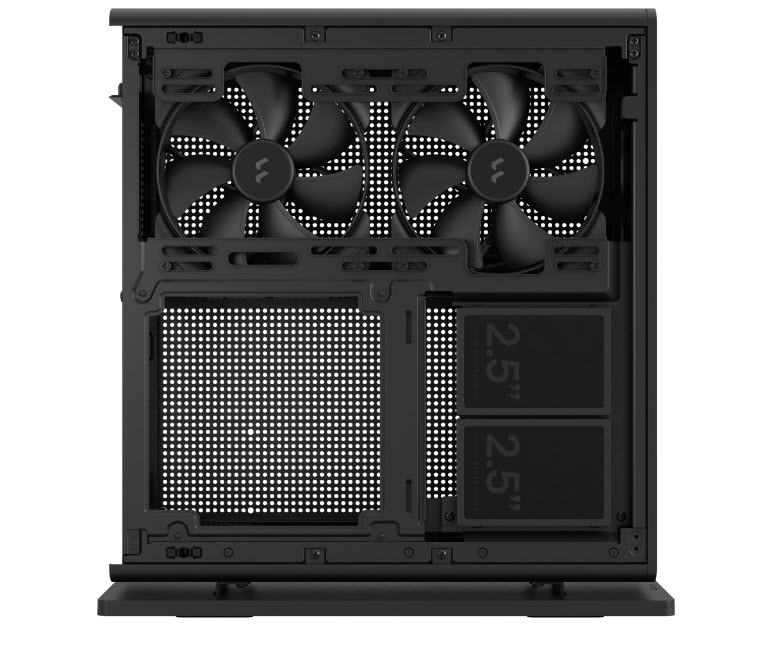

- Side fan: 2 x 120/140 mm (2 x PWM Aspect fan 140 mm included)
- Top fan: 3 x 80 mm (not included)
- Cable routing space: 13.8 mm (behind PSU)
- Tool-less slide with thumbscrew lock: Side panels
- Captive thumbscrews: Side panels
- Left side panel: Steel
- Right side panel: Steel
- Power supply type: SFX, SFX-L
- PSU max length: SFX-L
- Side radiator: 120 mm when =175mm long GPUs are installed (280 mm without GPU)
- GPU max length: 325 mm with SSD installed. 335 mm without SSD installed.
- GPU max height: 125 mm with top fan(s) installed, 137 mm without top fans
- GPU max thickness: 57 mm with 2x 140 mm fans installed, 82 mm without side fans
- CPU cooler max height: 70 mm
- Package contents: Case, Accessory box, Manual
- Warranty: 2 Years
