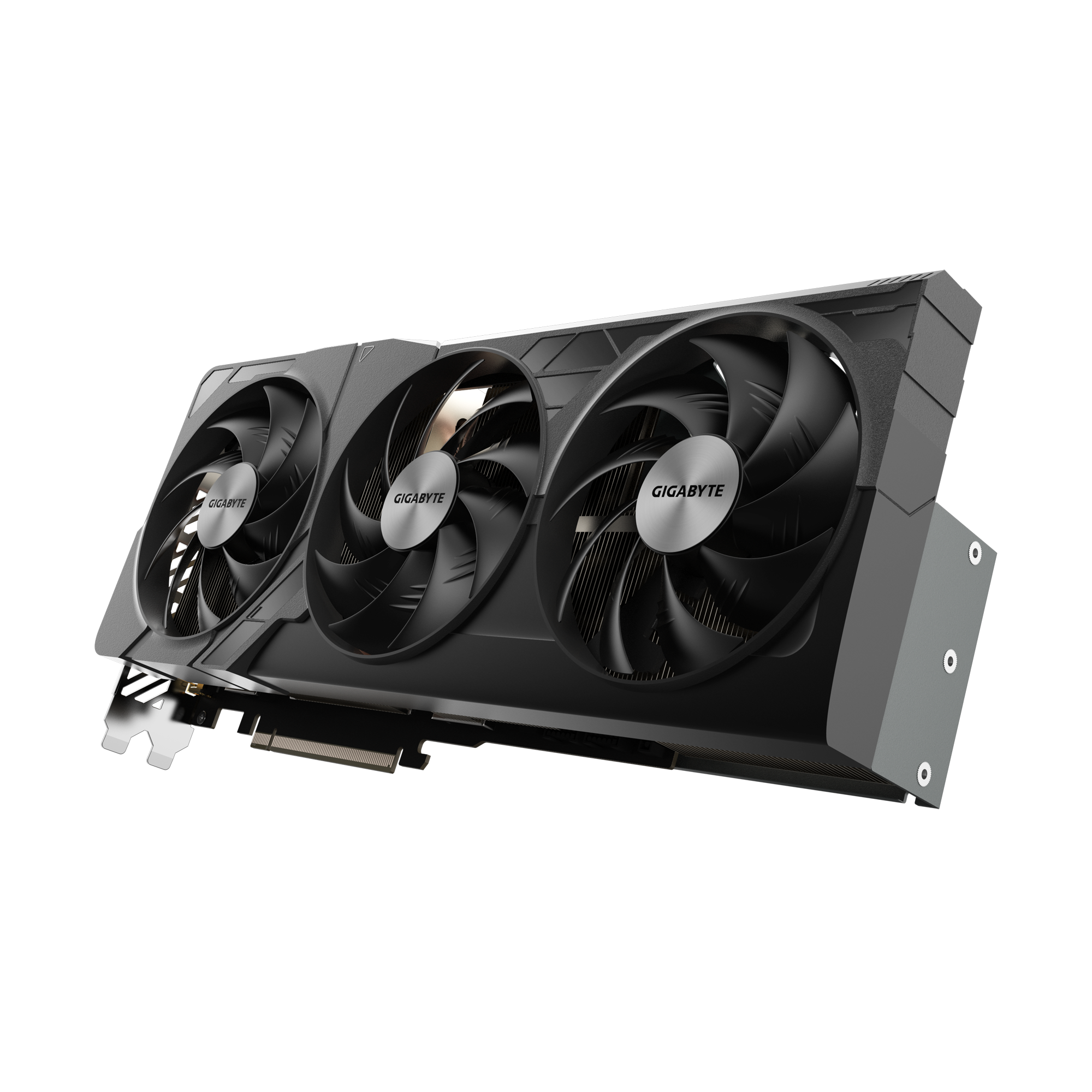

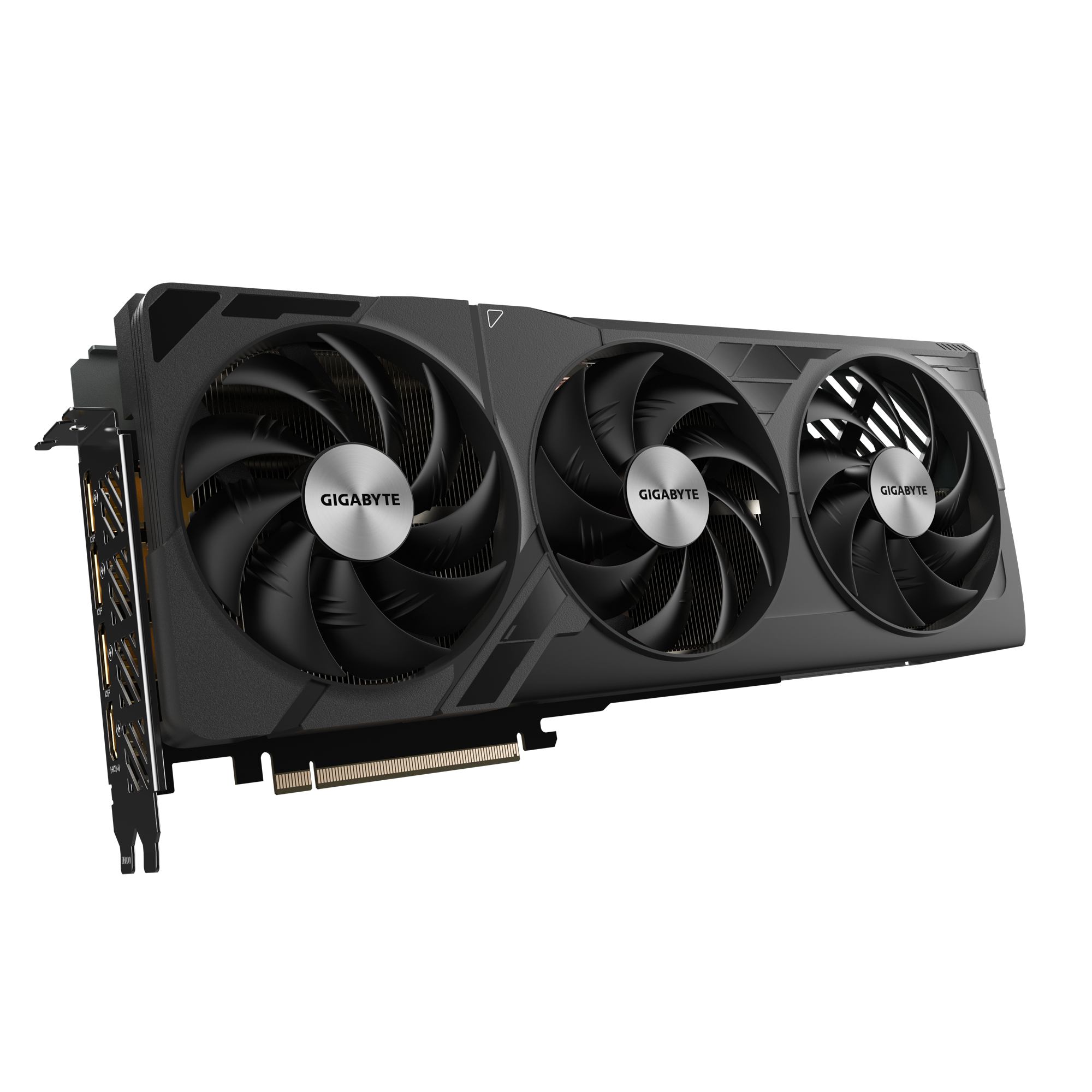

The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

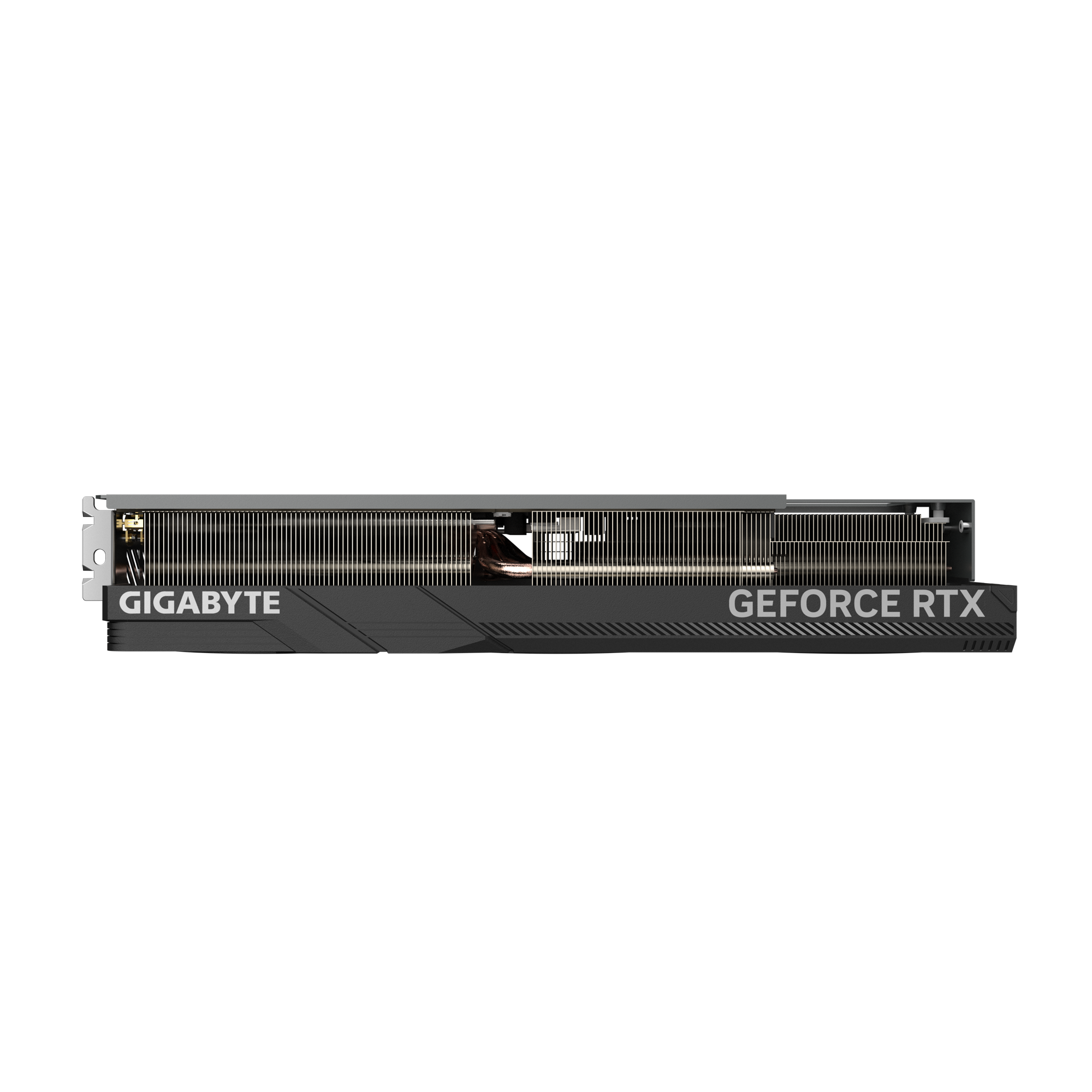

Extended heatsink design allows air flow to pass through, providing better heat dissipation. The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

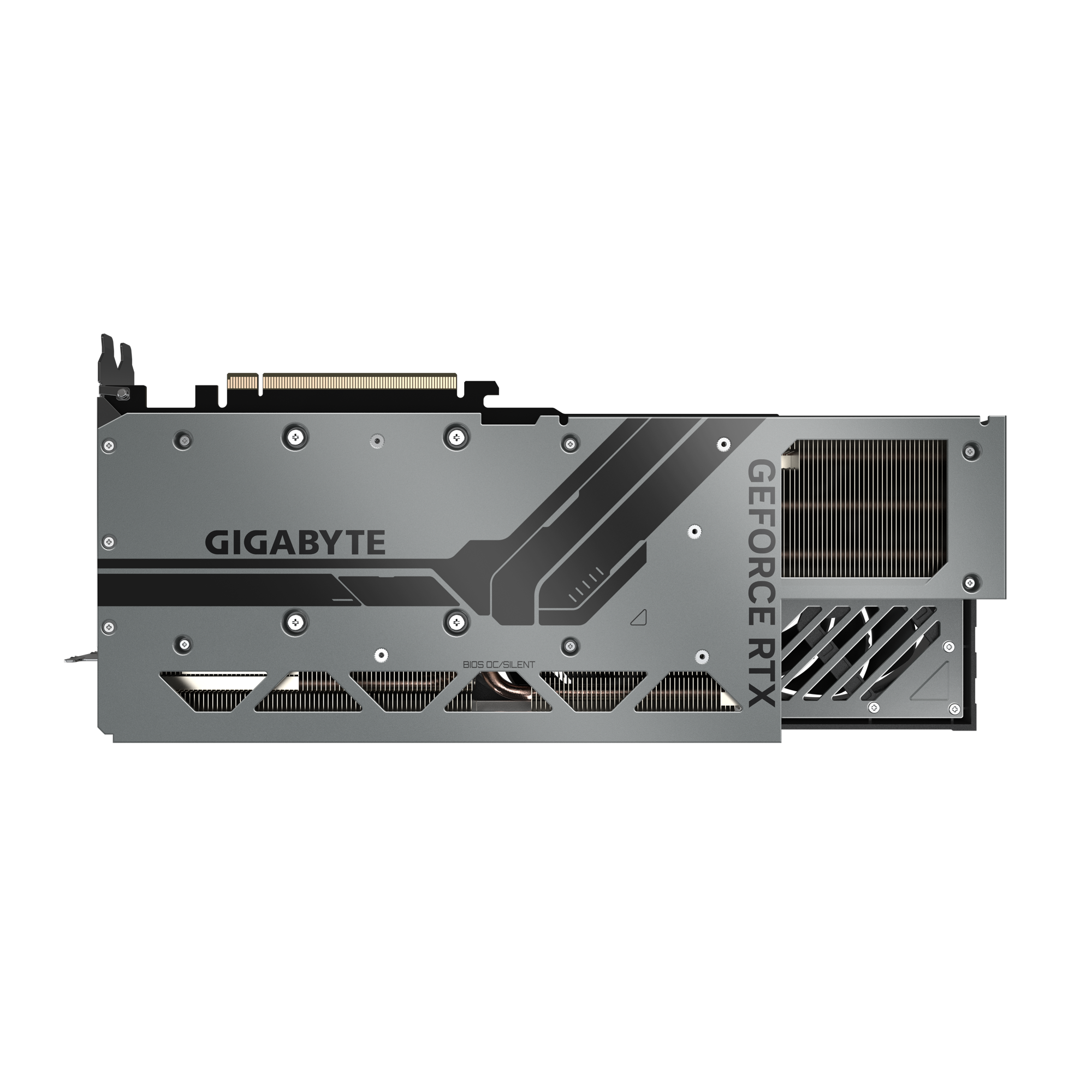

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
Highlights
- Graphics Processing: GeForce RTX™ 4080 SUPER
- Core Clock: 2550 MHz
- CUDA® Cores: 10240
- Memory Clock: 23 Gbps
- Memory Size: 16 GB GDDR6X
- Memory Bus: 256 bit
- Card Bus: PCI-E 4.0 x 16
- Digital max resolution: 7680 x 4320
- Multi-view: 4
- Card size: L=330 W=136 H=58 mm
- PCB Form: ATX
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Recommended PSU: 750 W
- Power Connectors: 16 Pin x 1
-

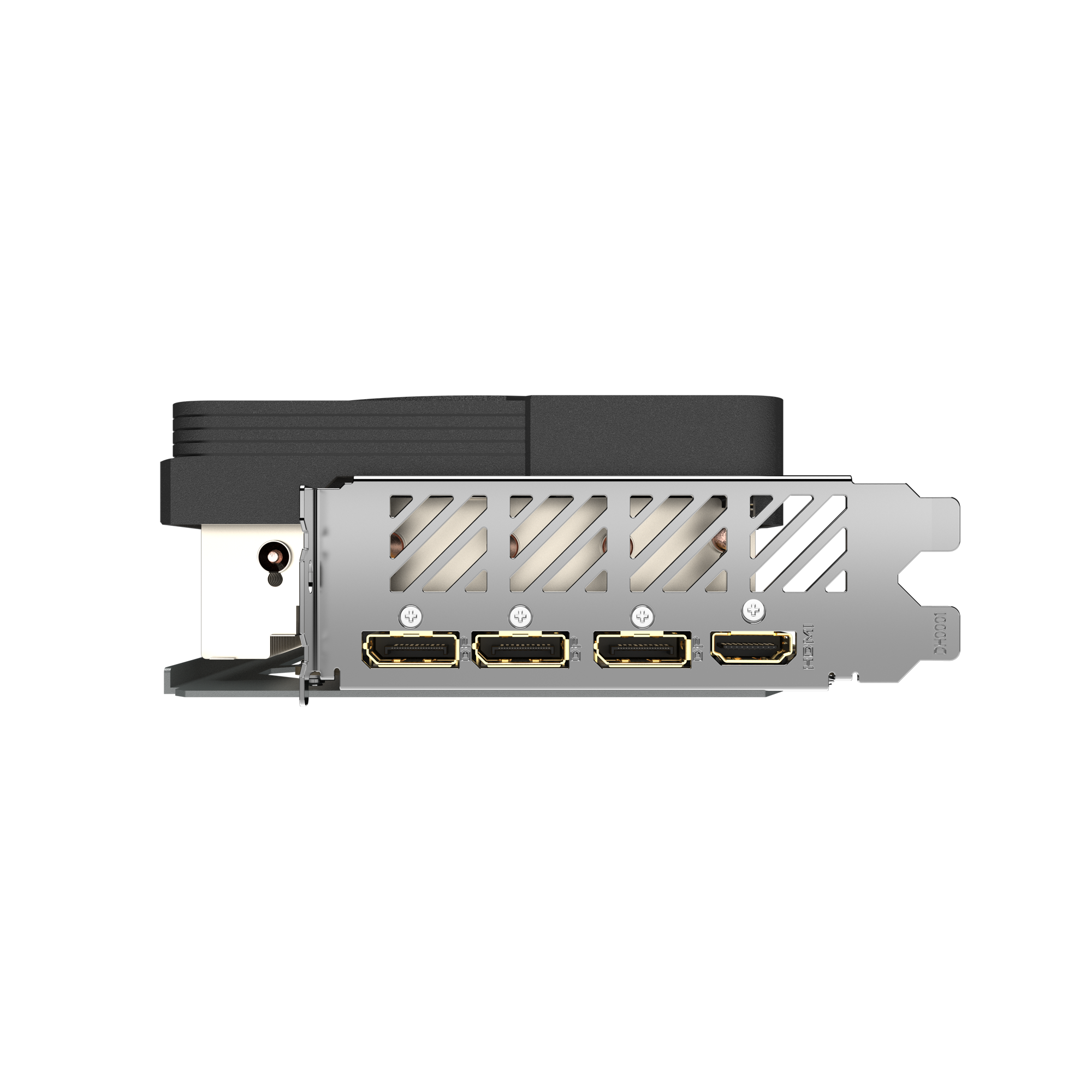

Output: DisplayPort 1.4a x 3, HDMI 2.1a x 1
-
Accessories: Quick guide,
Anti-sag bracket,
Anti-sag bracket installation guide,
One 16 pin to triple 8-pin power adapter
