GeForce RTX 4060

Play with style! GAMING is upgraded with TWIN FROZR 9 to sustain intense performance during gaming and content creation. A high-speed style matches high-performance capabilities for gamers who want to go all out.

MSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.

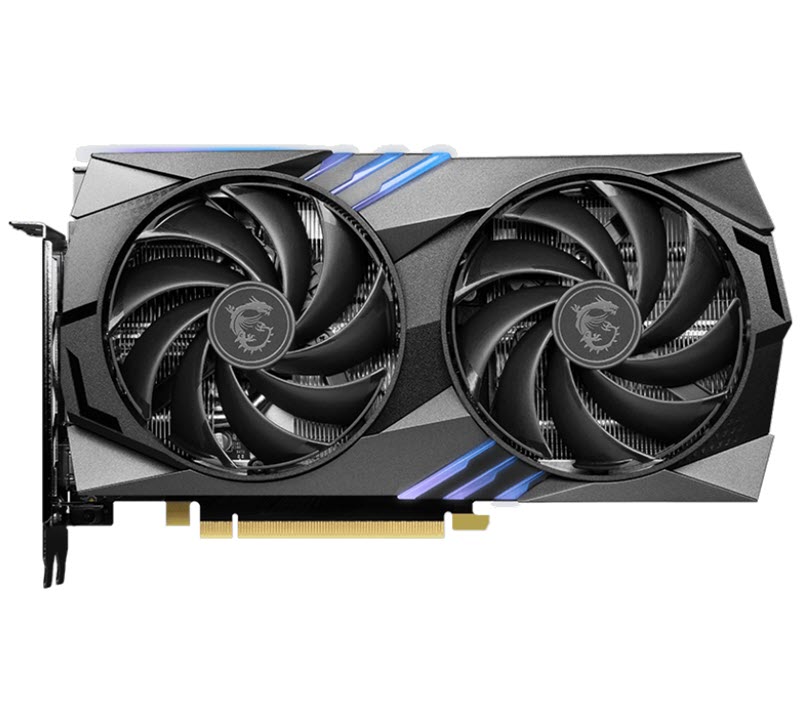

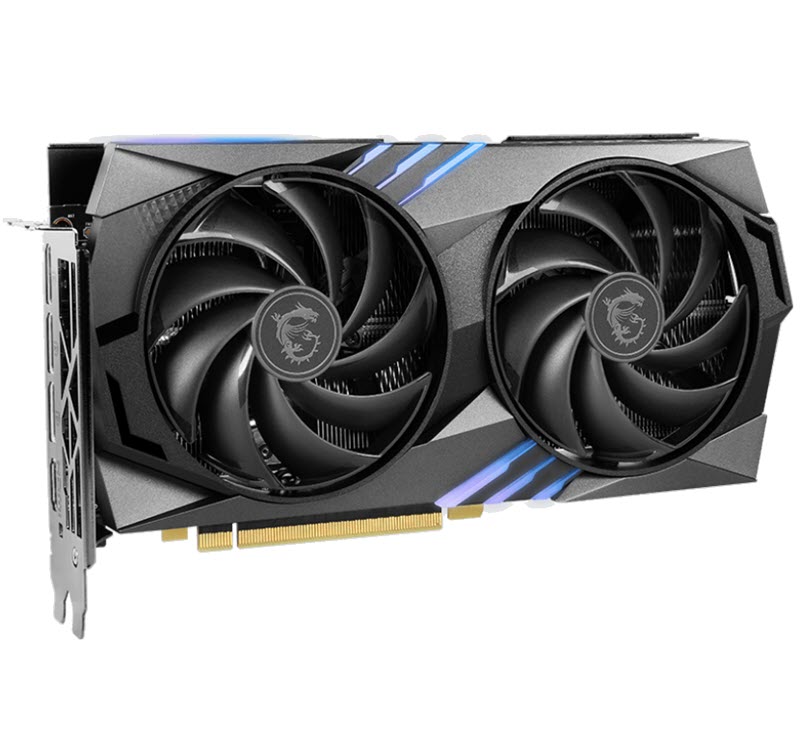

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

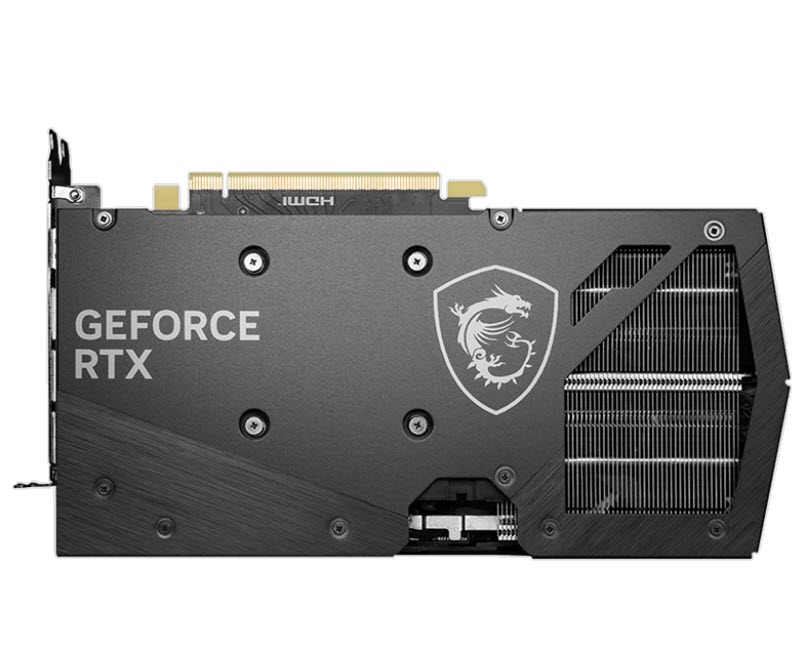

Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.

Highlights

Graphics Processing Unit: NVIDIA® GeForce RTX™ 4060 Ti
Interface: PCI Express® Gen 4 x16 (uses x8)
Core Clocks: Extreme Performance: 2655 MHz (MSI Center)Boost: 2640 MHz
CUDA® CORES: 4352 Units
Memory Speed: 18 Gbps
Memory: 8 GB GDDR6
Memory Bus: 128-bit

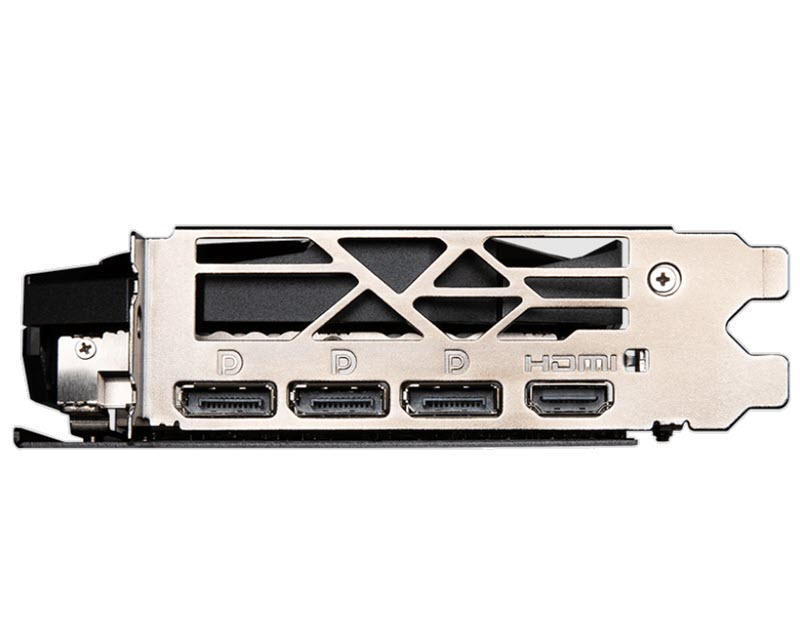

Output: DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate(VRR) as specified in HDMI™ 2.1a)
HDCP Support: Yes
Power consumption: 160 W
Recommended PSU: 550 W
Power connectors: 8-pin x 1
Card Dimension (mm): 247 x 130 x 42 mm
DirectX Version Support: 12 Ultimate
OpenGL Version Support: 4.6
Maximum Displays: 4
G-SYNC® Technology: Yes
Digital Maximum Resolution: 7680 x 4320
