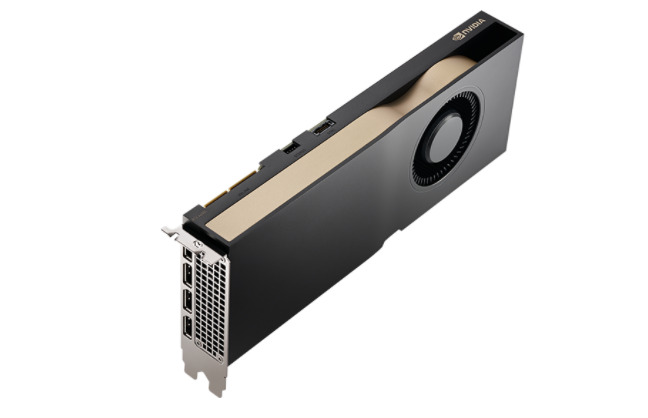

PNY NVIDIA RTX A4500

Highlights

• Architecture: NVIDIA Ampere Architecture
• Process Size: 8nm | Samsung
• Transistors: 28.3 Billion
• Die Size: 628.4 mm2
• CUDA Cores: 7168
• Tensor Cores: 224
• RT Cores: 56
• Single Precision Performance: 23.7 TFLOPS
• RT Core Performance: 46.2 TFLOPS
• Tensor Performance: 182.2 TFLOPS
• GPU Memory: 20GB GDDR6 with ECC
• Memory Interface: 320-bit
• Memory Bandwidth: 640 GB/sec
• Display Connectors: 4x DisplayPort 1.4a
• NVENC | NVDEC: 1x | 2x (+ AV1 decode)
• System Interface: PCI Express 4.0 x16
• Form Factor: 4.4" H x 10.5" L Dual Slot
• Thermal Solution: Active Fansink
• Maximum Power Consumption: 200 W
• Power Connector: 1x 8-pin PCIe
• Max Digital Resolution: 7680 x 4320 x36 bpp at 60 Hz
• NVIDIA 3D Vision and 3D Vision Pro: Optional 3-pin mini DIN connector bracket
• Frame Lock: Compatible with NVIDIA Quadro Sync II
• NVLink: 2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A4500
• NVLink Interconnect: 112.5 GB/sec bidirectional
