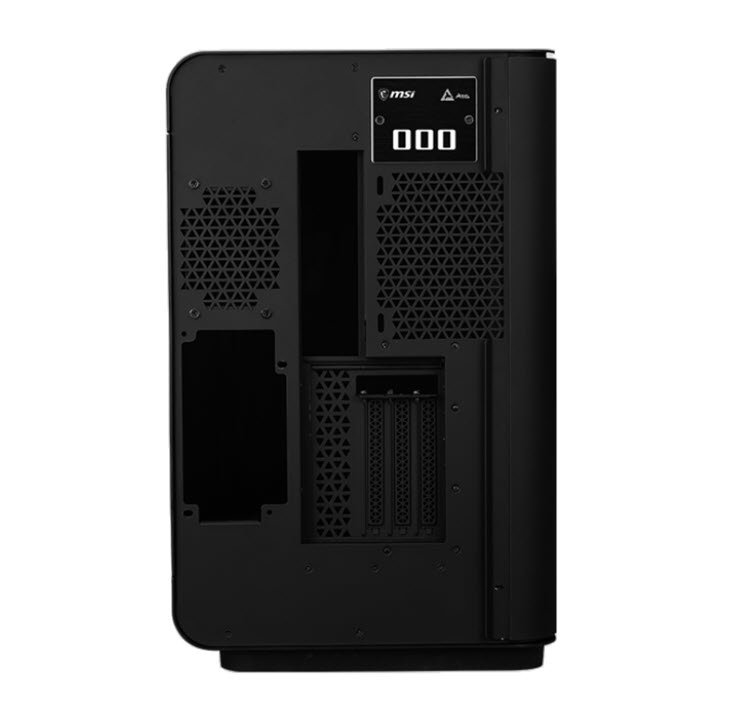

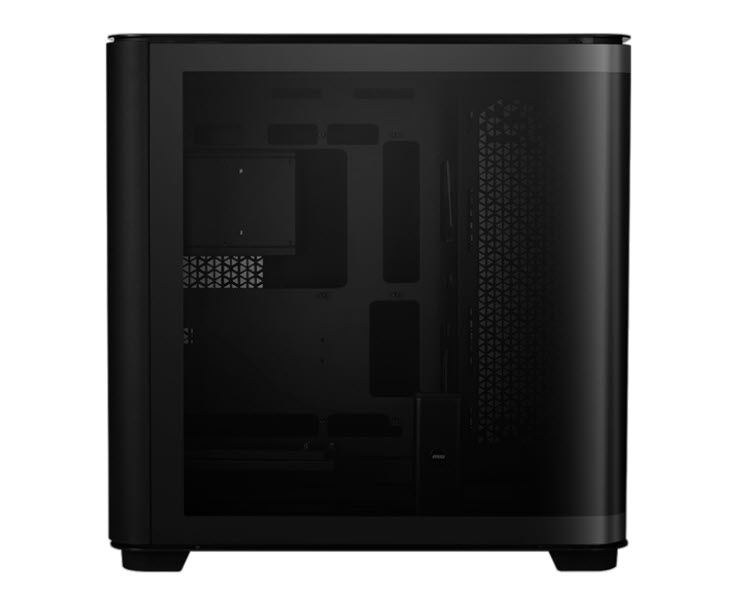

MEG MAESTRO 700L PZ

The MEG, an artifact infused with the ancient world's mystical powers, breathes its divine essence into the creation of the MEG MAESTRO 700L PZ. Crafted in unparalleled artistry and technological brilliance, this chassis proudly bears the emblem — a tribute to the timeless legacy of the MEG.

NCT cutting triangular ventilation, the whole chassis has more than 3600 triangular holes to improve heat dissipation.

The casing presents a meticulously designed feature with an intricate hairline texture, creating an elegant and distinctive appearance. This texture not only enhances the overall aesthetics but also reflects a meticulous attention to detail.

The coding on the chassis reflects the unique ideas and creativity of each individual when it comes to their PC BUILD.

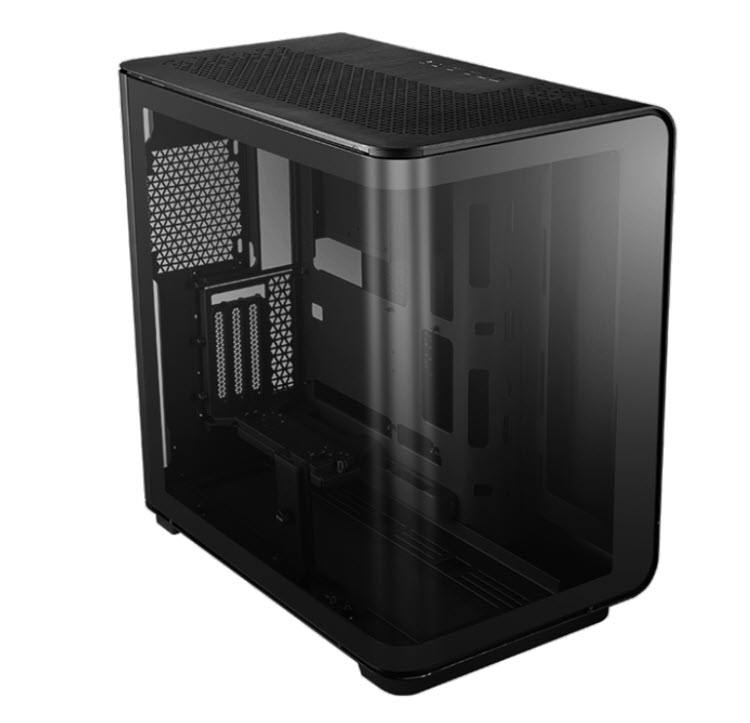

This case features a one-piece 270-degree tempered glass with a safety film , providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.

Supporting Back-connect motherboards not only simplifies the installation process but also makes it easy to cable management. Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.

This case reserves ample space for cable routing, ensuring expedited and simplified cable management processes.

Synergize with MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for 20 Gbps high speed data transmission.

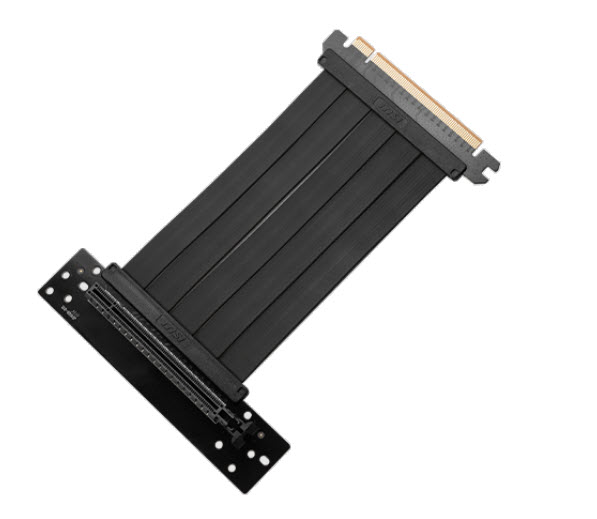

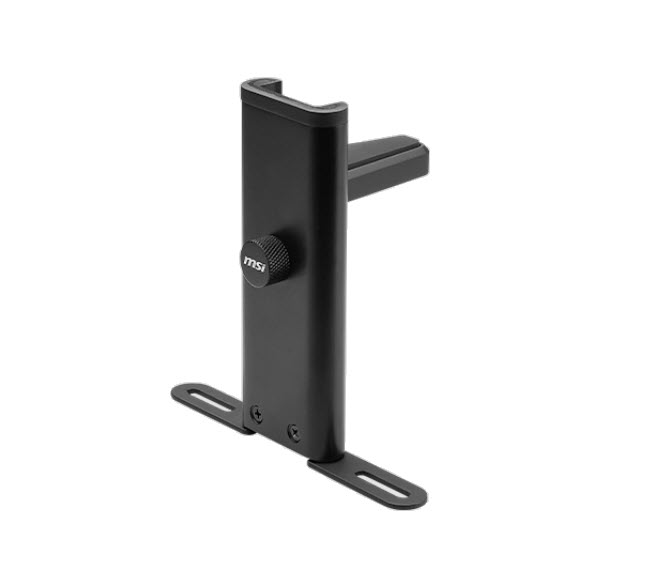

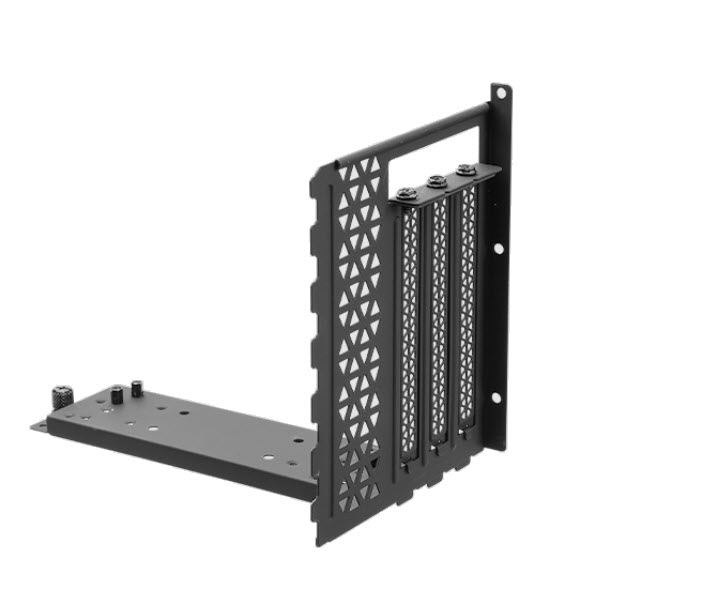

Vertical GPU bracket and PCIe 4.0 riser cable as accessories that allows you to mount your graphics card vertically.

Highlights

• CASE FORM FACTOR: Mid-Tower
• MOTHERBOARD SUPPORT: E-ATX (up to 305 x 280 mm), ATX (Back-connect supported), M-ATX / ITX
• EXPANSION SLOTS: 7
• I/O PORTS: 1 x Power Button, 1 x Reset Button, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Audio-Out / Mic-in
• DRIVE MOUNT SUPPORT: 2 x 2.5”/3.5" combo bay
• MAXIMUM GPU LENGTH: 430 mm / 16.93 inches
• MAXIMUM CPU COOLER HEIGHT: 170 mm / 6.69 inches
• POWER SUPPLY SUPPORT: ATX
• MAXIMUM PSU LENGTH: 230 mm / 9.06 inches
• FAN SIZE SUPPORT: Top: 3 x 120 mm / 3 x 140 mm, Front: NA, Rear: 1 x 120 mm, Side: 3 x 120 mm, Bottom: 3 x 120 mm / 3 x 140 mm
• RADIATOR SIZE SUPPORT: Top: 120 / 240 / 360 mm (thickness: 80 mm), Front: NA, Rear: 120 mm, Side: 120 / 240 / 360 mm (thickness: 80 mm), Bottom: 120 / 240 / 360 mm
• DIMENSIONS (DxWxH): 470 x 300 x 474 mm / 18.5 x 11.81 x 18.66 inches
