CM QUBE 500 Flatpack Black - No PSU, Mid-Tower, ATX, TG
Product Type:
Cases
Type Detail:
Mid ATX
Manufacturer:
Cooler Master
Manufacturer #:
Q500-KGNN-S00
Part Status:
Special Order Only
Milwaukee PC SKU:
350056
Price:
$101.99

Quick Tech Specs

Form Factor: ATX
Type: Mid Tower
Brand: Cooler Master
P.Supply Incl.: NONE
Expantion Slots: 7 Slots
Internal 3.5" Bays: 4 Bays
Internal 2.5" Bays: 3 Bays
Front USB 3.+ Ports: 2 Ports
Front USB-C: 1-Port
Material: Steel
Window: YES
120mm Fans: 1 Fan
Warranty: 2 Years


QUBE 500 Flatpack Black

Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience. Welcome to the future of PC DIY.

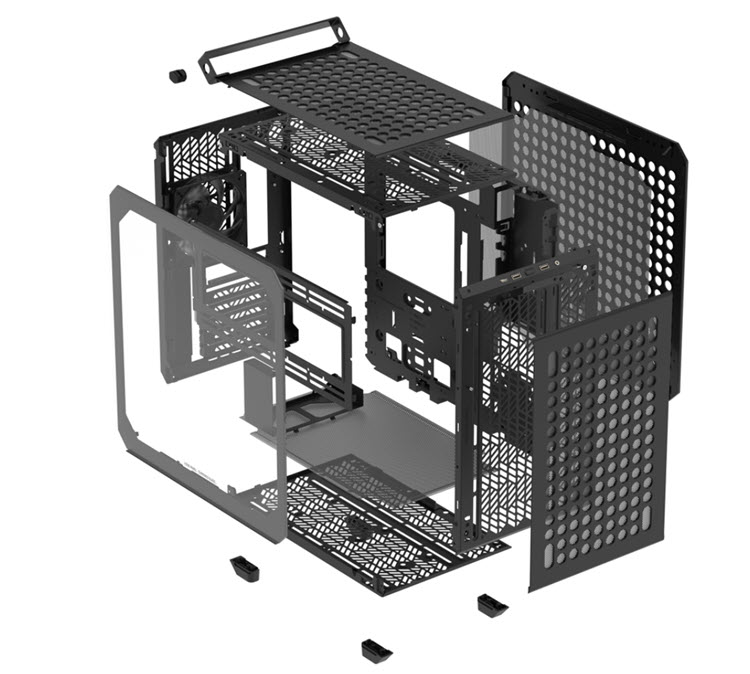

Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.

An unprecedented level of customizability allows for full creative expression.

The symmetric design allows you to switch the steel panel and the glass panel with each other for a non-transparent build.

The Qube 500 can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.

From the moment you open the box, the build begins with fun and easy step-by-step instructions.

The Qube 500 is compatible with 280mm water coolers, 172mm air coolers, 173mm ATX PSUs, E-ATX motherboards and smaller, and 360mm GPUs.

The Qube 500 provides up to 4x 3.5” HDD mounting positions and up to 3x 2.5” SSD mounting positions.

Highlights

  • Size: Mid-Tower
  • Motherboard Support: ITX, Micro ATX, ATX, E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
  • Expansion Slots: 7
  • I/O Panel - USB Ports: 2 x USB 3.2 Gen 1 Type A, 1 x USB 3.2 Gen 2 x 2 Type C
  • I/O Panel - Audio In / Out: 1 x 3.5mm Combo
  • 3.5" Drive Bays: 4
  • 2.5" Drive Bays: 3
  • Pre-installed Fans - Rear: 1 x 120mm (1800 RPM) SF Black PWM
  • Fan Support - Front: 1 x 120/140mm (x 2 if PSU is mounted in bottom)
  • Fan Support - Top: 2 x 120/140mm
  • Fan Support - Rear: 1 x 120mm
  • Fan Support - Bottom: 2 x 120/140mm
  • Fan Support - Left side: 2 x 120/140mm
  • Radiator Support - Front: 120mm, 140mm, (240/280mm w/ PSU in bottom)
  • Radiator Support - Top: 120mm, 140mm, 240mm, 280mm, (280mm can be used within 53mm thickness)
  • Radiator Support - Rear: 120mm
  • Radiator Support - Bottom: 120mm, 140mm, 240mm, 280mm
  • Radiator Support - Left side: 120mm, 140mm, 240mm, 280mm
  • Clearance - CPU Cooler: 164mm-172mm (Remove the water cooling bracket)
  • Clearance - PSU: 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space)
  • Clearance - GFX: 365mm
  • Cable Routing - Behind Motherboard Tray: 29-32mm
  • Handle: Black x 1
  • Gem Mini: Black x 1
  • Dust Filters: Front, Top, Bottom, Right side
  • Power Supply Support: SFX, SFX-L, ATX
  • Warranty: 2 years
