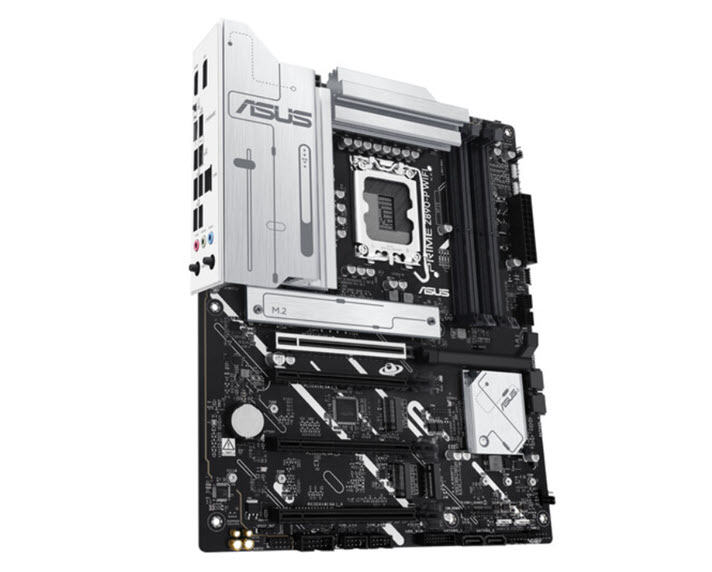

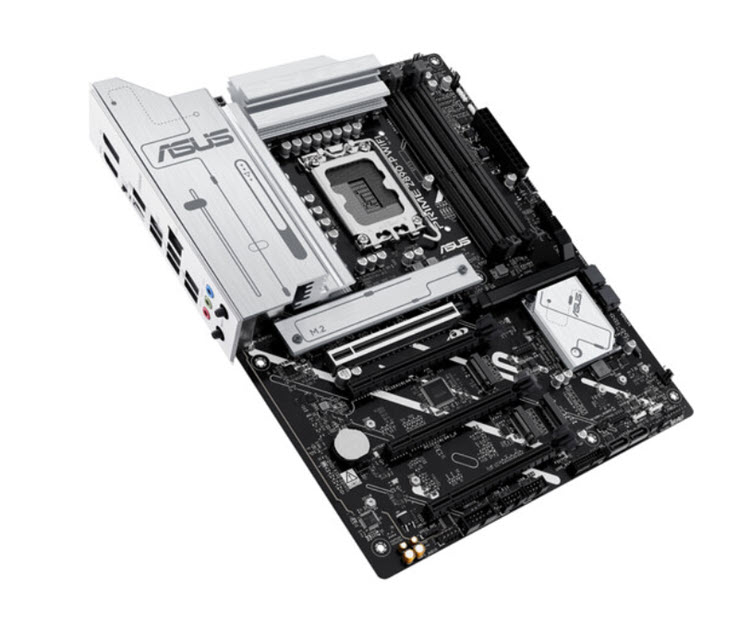

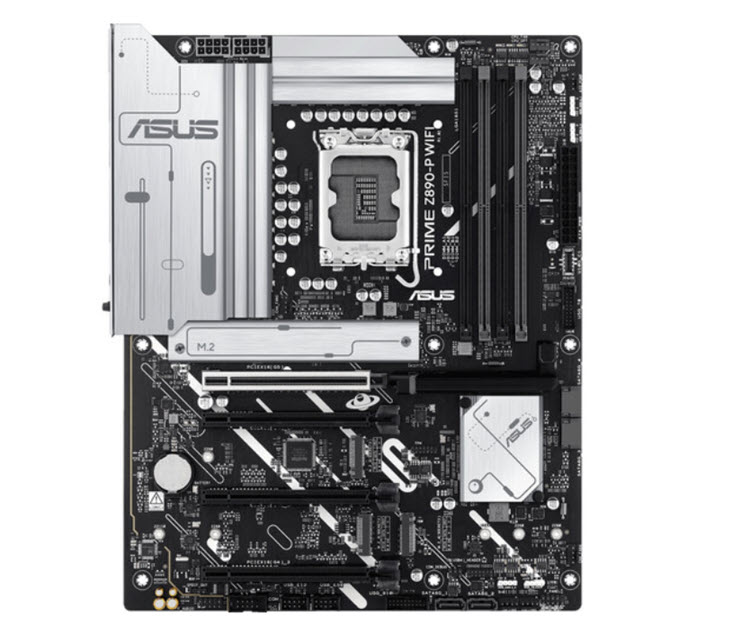

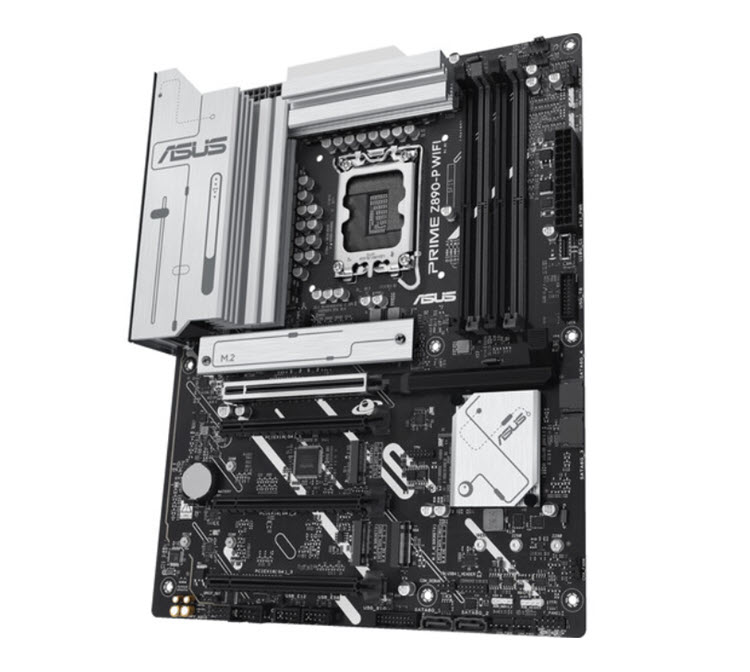

Prime Z890-P WIFI

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, AI Networking II for real-time bandwidth optimization and AI Cooling II for automated temperature control.

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME Z890-P WIFI is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

The PRIME Z890-P WIFI offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

The PRIME Z890-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

The PRIME Z890-P WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections, and Thunderbolt™ 4 which expands compatibility and bandwidth even further.

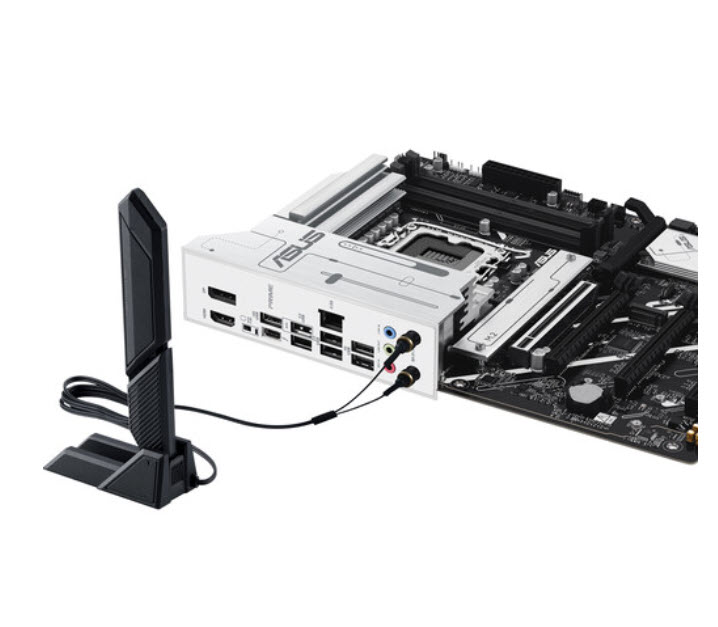

The next-gen WiFi 78 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

The PRIME Z890-P WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

A physical lever unlocks the first PCIe ????slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.

News & Updates

• 2024/10/24: A new BIOS has been released addressing various bugs, including no display from the graphics card when installing Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.

Form Factor

• ATX Form Factor, 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )

CPU

• Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 192 GB, DDR5, Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture, DIMM Fit, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

• 1 x DisplayPort**, 1 x HDMITM port***, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****, * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. - ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. - *** Supports 4K@60Hz as specified in HDMI 2.1. - **** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. - **** In DP alt mode, supports up to UHBR20.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2); 1 x PCIe 5.0 x16 slot, Intel® Z890 Chipset; 2 x PCIe 4.0 x16 slots (support x4 mode). 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® Core™ Ultra Processors (Series 2)*, M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset; M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports; * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

LAN

• 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate., Bluetooth® v5.4

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 8 ports); 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)** Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E 4 port share the bandwidth. ** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

OS Support

• Windows 11 (22H2 & later)

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, Storage related; 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin Front Panel System header, 1 x Thunderbolt™ (USB4®) header

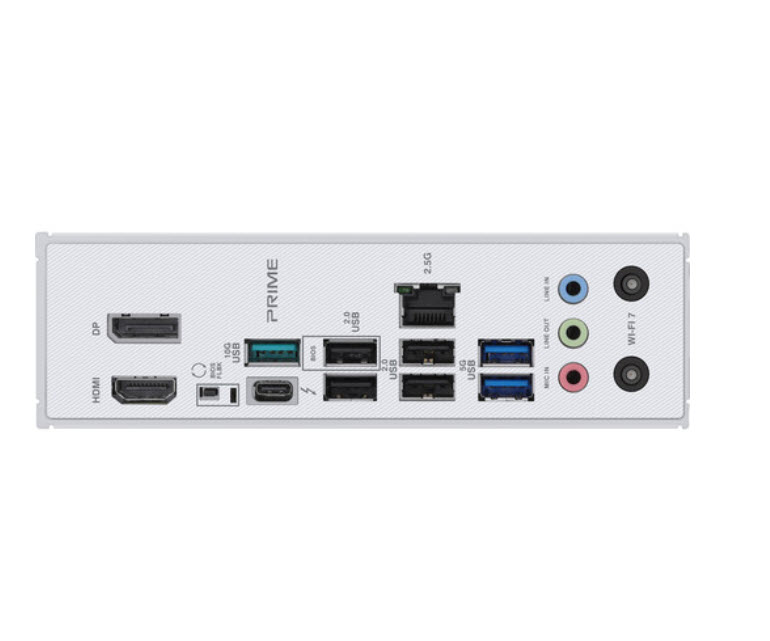

Back I/O Ports

• 1 x Thunderbolt™ 4 USB Type-C® port, 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMITM port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button

Software Features

• ASUS Exclusive Software, Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, ASUS CPU-Z, TurboV Core, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, NPU Boost (Intel K-series Processors only)

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O, ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield, Aura Sync - Aura RGB header - Addressable Gen2 headers

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

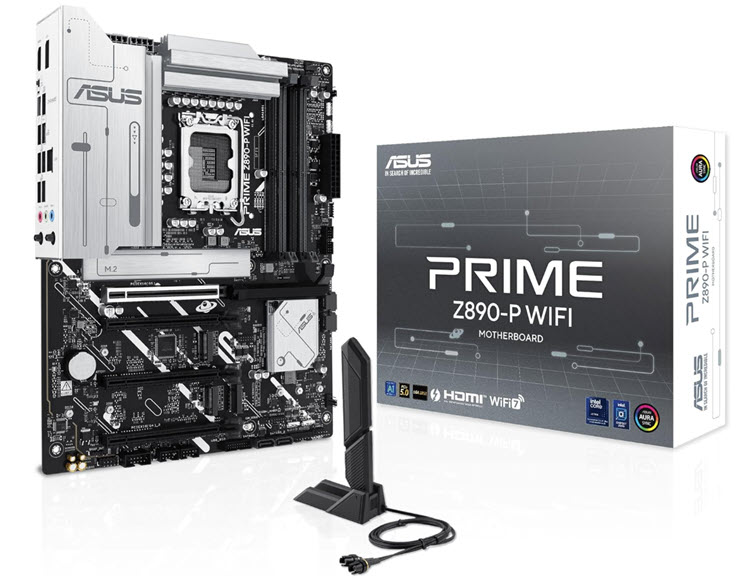

• Cables; 2 x SATA 6Gb/s cables, Miscellaneous; 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, Documentation; 1 x Quick start guide
