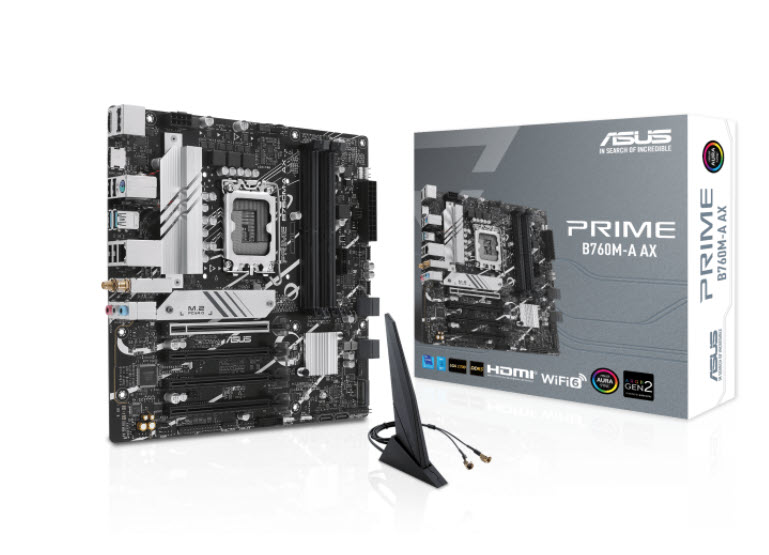

Asus PRIME B760M-A AX - MATX, B760, s1700, 4xDDR5, 2xM.2, 6xSATA, 2.5Gb, Wi-Fi 6, BT5.2, 1xDP, 2xHDMI, AURA Sync
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
Asus
Manufacturer #:
PRIME-B760M-A-AX
Part Status:
Special Order Only
Milwaukee PC SKU:
264866
Price:
$169.99

Quick Tech Specs

Processor Manufacture: Intel / 13th/12th Gen
Socket: LGA 1700
Chipset Manufacture: Intel / B760
Form Factor: Micro ATX
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR5
PCI Express x16 Slots: 4 Slots
WiFi Onboard: Wi-Fi 6 / BT 5.2
RAID Support: RAID 0/1/5/10 / SATA RAID
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
M.2 Slots: 2 Slots
USB 3.x Ports (3.0 or higher): 2 Ports
Network Ports: 2.5 Gigabit
HDMI Ports: 2 Ports
USB 2.0 Ports: 4 Ports
Display Ports: 1 Port


PRIME B760M-A AX

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

Form Factor

  • mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

CPU

  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

  • Intel® B760 Chipset

Memory

  • 4 x DIMM, Max. 128 GB, DDR5 7200+(OC)/7000(OC)/6800(OC) /6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600 / 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II

Graphics

  • 1 x DisplayPort**, 2 x HDMITM ports***, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4., *** Supports 4K@60Hz as specified in HDMTM 2.1.

Expansion Slots

  • Intel® 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot, Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x16 slot (supports x1 mode)

Storage

  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*, Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports, * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

LAN

  • 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

USB Ports

  • Rear USB (Total 6 ports); 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 1 connectors (support USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports

OS Support

  • Windows® 11, Windows® 10 64-bit

Internal I/O Ports

  • Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related; 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x RTC Battery header

Back I/O Ports

  • 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 2 x HDMITM ports, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Software Features

  • ASUS Exclusive Software, Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving, AI Suite 3 - Digi+ VRM - PC Cleaner, ASUS CPU-Z, Norton Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

  • ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - ProCool, Aura Sync - Aura RGB header - Addressable Gen 2 headers

BIOS

  • 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

  • WOL by PME, PXE

Accessories

  • Cables; 2 x SATA 6Gb/s cables, Miscellaneous; 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, Documentation; 1 x User guide
