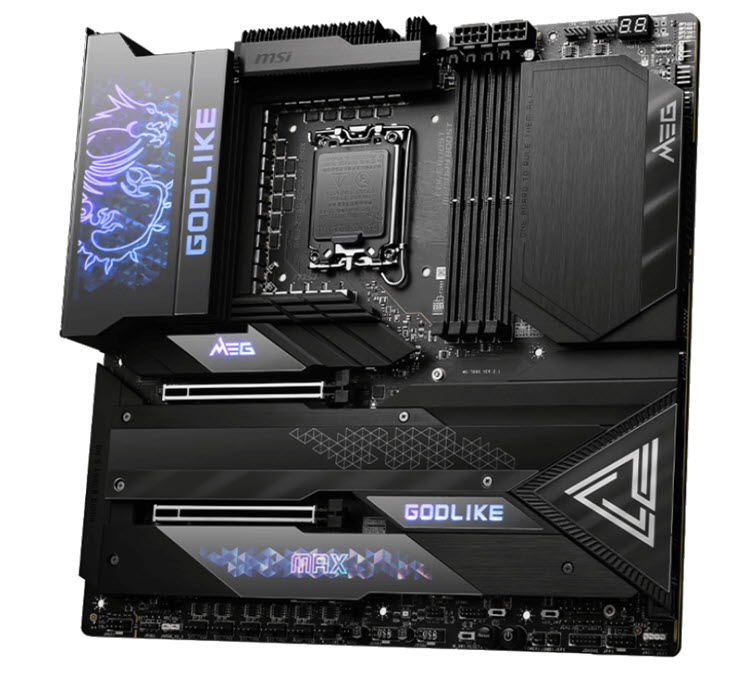

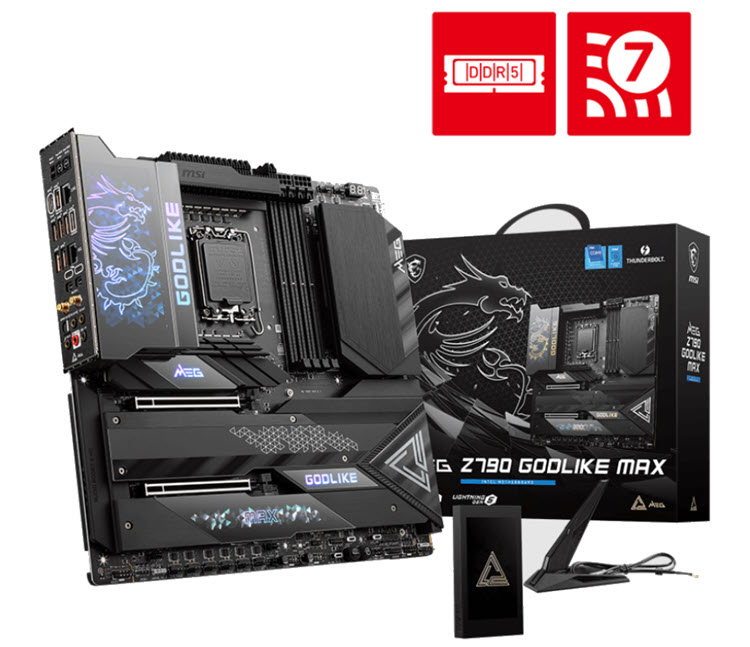

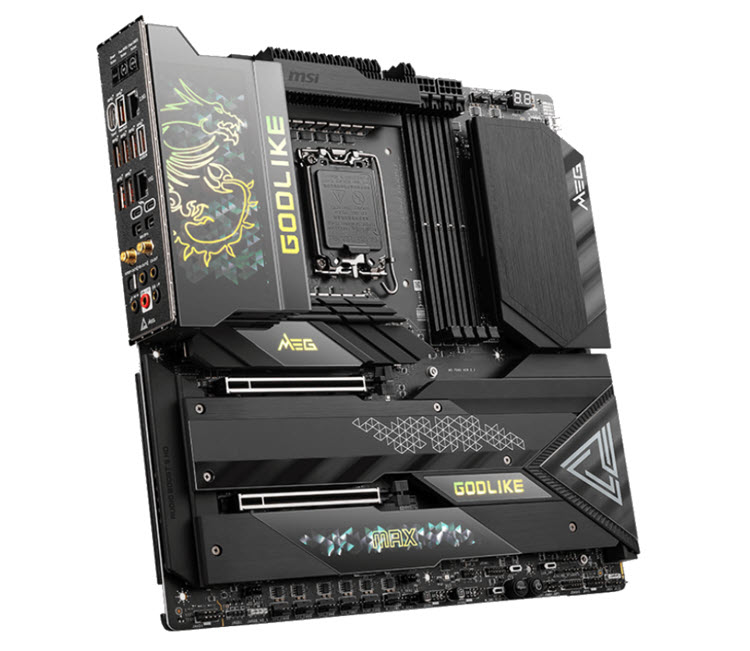

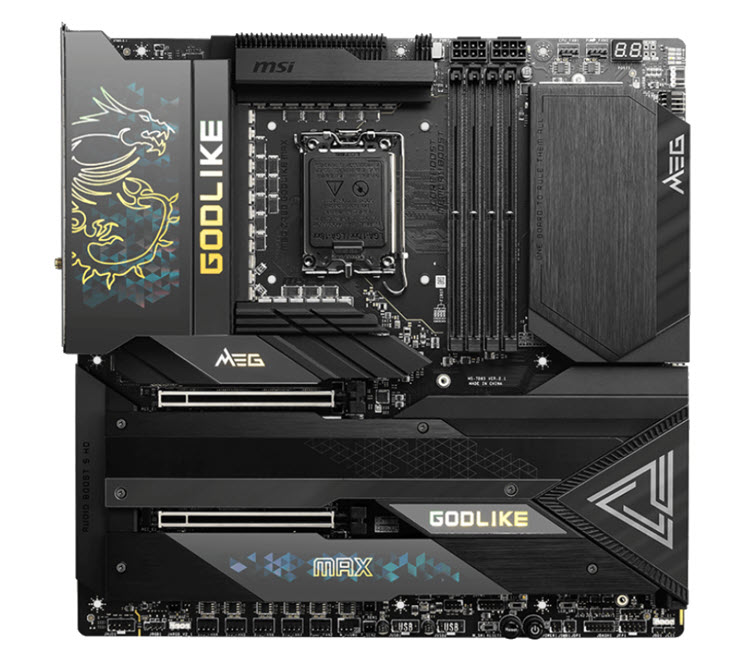

MEG Z790 GODLIKE MAX

Experience the pinnacle of innovation with the best of the best MEG Z790 GODLIKE MAX Gaming Motherboard. Its black and robust heatsink design features an embedded crystal cutting pattern within black mirrors, setting a new standard for Intel Z790 motherboards. Equipped with Wi-Fi 7, high-speed data transmission, and the groundbreaking M-Vision Dashboard, this board is engineered to unleash the gaming potential of Intel® 14th Gen and 13th Gen Core processors. Dominate competitive tournaments and immerse yourself in unrivaled performance. Step into the future of gaming with MEG Z790 GODLIKE MAX.

M-Vision Dashboard: The 4.5-inch full-color IPS touchpanel not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.

The heat dissipation module is one of the biggest contributors to keeping GODLIKE efficient and cool. The flagship and exclusive cooling solution make it unnecessary for gamers to worry about temperature problems.

The premium power solution, superior layout design, advanced PCB material and enhanced tuning parameter provide the extreme performance and long-lasting system stability without any compromise.

Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.

Lightning Gen 5 M.2 solution delivers 12,311MB/s read speed and 11,507 write speed to meet the demanding hardcore users. Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster. The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation. The patented magnetic M.2 Shield Frozr design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.

The Wi-Fi 7 provides the latest wireless communication speeds to a whooping 5.8Gbps, 2.4x times faster than the previous Wi-Fi 6 standards. Wi-Fi 7 enables devices to simultaneously send and receive data across multiple frequency bands and channels to have a much more smoother experience as the number of wireless devices increases. Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.

Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, Multi-Port Accessory Architecture and USB 4.0 Compliant.

Take a huge step of DDR performance upgrade with the latest DDR5 memory. Combining a dedicated SMT welding process and with MSI memory boost technology, the MEG Z790 GODLIKE MAX is ready to deliver world-class memory performance.

The latest and the fastest PCI-e data transfer solution can reach 128GB/s of unidirectional transfer bandwidth of a x16 interface that has doubled compared to its previous generation. Optimized by Steel Armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Form Factor

• E-ATX, 310mmx304.8mm

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

Chipset

• INTEL Z790

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC) / 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC) / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) / 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz, Supports Intel® XMP3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory

MULTI-GPU

• AMD MULTI-GPU Support

ONBOARD THUNDERBOLT

• Thunderbolt chip JHL8540, 2 x Thunderbolt4 (USB-C) ports Q’ty, Supports up to 40Gbps transfer rate with Thunderbolt devices, Supports up to 20Gbps transfer rate with USB4 devices, Supports up to 10Gbps transfer rate with USB 3.2 devices, Supports up to 5V/3A,15W power charging, Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices, Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)

Expansion Slots

• 2 x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

Storage

• 7 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices, M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices, M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 6 x SATA 6G, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

LAN

• Marvell® AQC113CS-B1-C 10Gbps LAN, Intel® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH

• Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM

Audio

• Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA, 7.1-Channel USB High Performance Audio, Supports S/PDIF output, Supports up to 32-Bit/384 kHz playback on front panel

USB Ports

• 4 x USB 2.0 (Front), 4 x USB 3.2 Gen1 Type A (Front), 7 x USB 3.2 Gen2 Type A (Rear), 1 x USB 3.2 Gen2 Type C (Rear), 2 x USB 3.2 Gen2x2 Type C (Front)

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Front Type-C Quick Charge Connector(PD_PWR1), 1 x CPU Fan, 2 x Pump Fan, 7 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Water Flow connector, 1 x Slow Mode Booting Jumper(JSLOW), 1 x Front Audio (JAUD), 2 x Thermal Sensor connectors(T_SEN), 1 x Tuning Controller connector(JDASH), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 4 x USB 3.2 Gen1 Type A ports, 2 x USB 3.2 Gen 2x2 Type C ports, V-check point, 1 x ARGB+FAN Header (JAF_1)

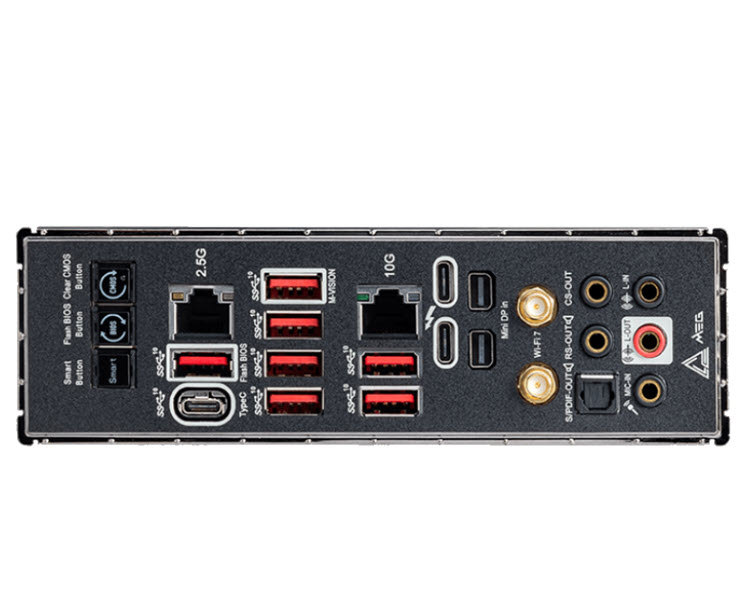

Back I/O Ports

• Clear CMOS Button, Flash BIOS Button, 2.5G LAN, 10G Super LAN, 2 x Thunderbolt 4 40Gbps (Type-C), Wi-Fi / Bluetooth, 5 x HD Audio Connectors, Smart Button, 1 x USB 3.2 Gen 2 10Gbps (Type-C), 7 x USB 3.2 Gen 2 10Gbps (Type-A), 2 x Mini DisplayPort Input (for Thunderbolt pass through), Optical S/PDIF-Out

LED FEATURE

• 1 x EZ LED Control switch, 4 x EZ Debug LED, 1 x 2-Digit Debug Code LED
