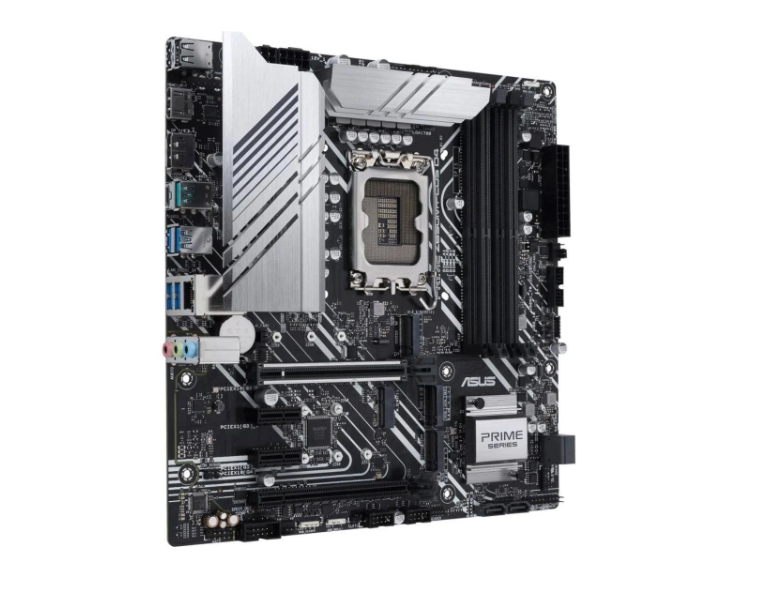

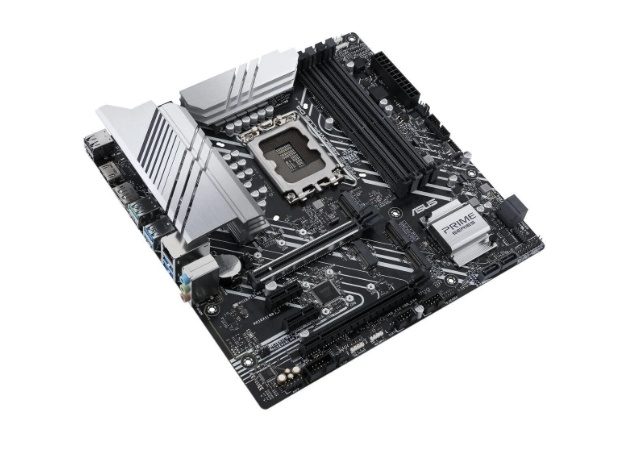

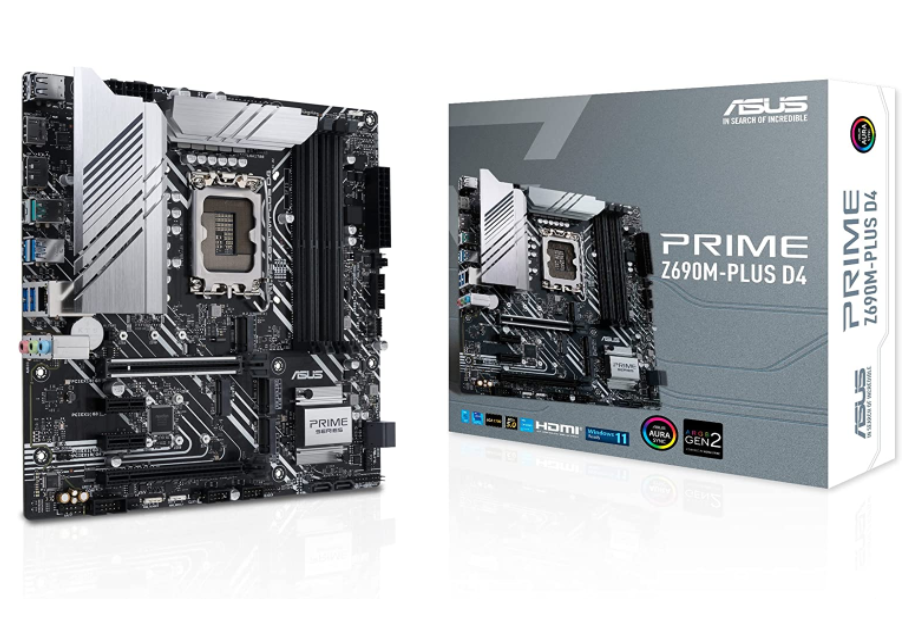

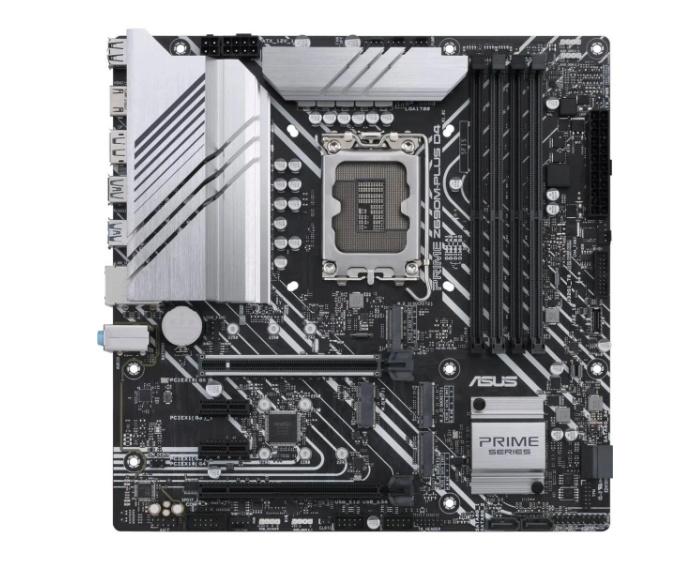

ASUS PRIME Z690M-PLUS D4

Form Factor

• microATX, 24.4cm x 24.4cm

CPU

• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Z690

Memory

• 4 x DIMM, Max. 128GB, DDR4, 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/ 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933 /2800/2666/2400/2133 Non-ECC, Un-buffered Memory*, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II

Graphics

• 1 x DisplayPort, 1 x HDMI® port*

Expansion Slots

• Intel® 12th Gen Processors*, 1 x PCIe 5.0/4.0/3.0 x16 slot, Intel® Z690 Chipset**, 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots, * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280, - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset**, M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

LAN

• 1 x Intel® 1Gb Ethernet ASUS LANGuard

Audio

• ALC887/897 Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB:Total 8 ports; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB:Total 7 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports*, * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• Fan and cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related; 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x M.2 slot (Key E), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ header

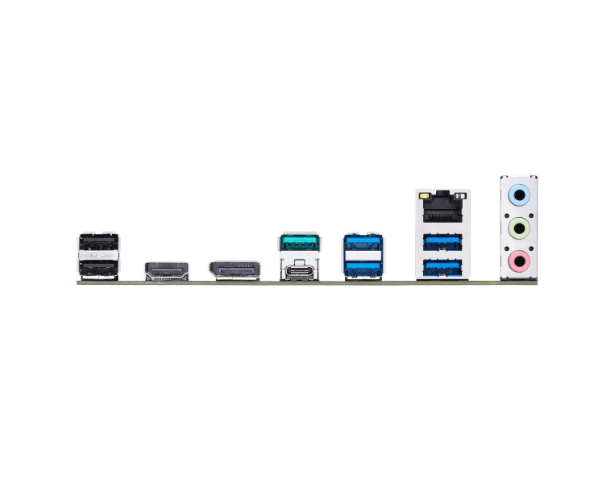

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Intel® 1Gb Ethernet port, 3 x Audio jacks

Software Features

• ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4, AI Suite 3 -Performance And Power Saving Utility TurboV EVO, EPU, DIGI+ VRM, ASUS CPU-Z, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB header - Addressable Gen 2 headers

Accessories

• Cables 2 x SATA 6Gb/s cables, Miscellaneous 1 x I/O Shield, 2 x M.2 SSD screw packages, Installation Media 1 x Support DVD, Documentation 1 x User guide

Wireless & Bluetooth

• M.2 slot only (Key E, CNVi & PCIe). M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
