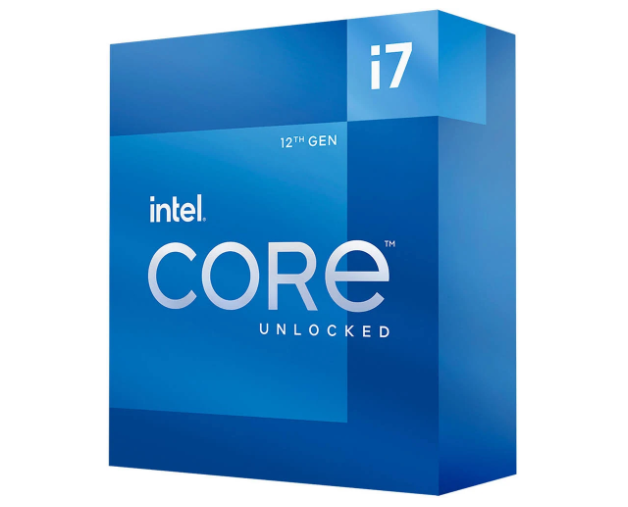

Intel Core i7-12700K Processor - s1700, 3.6/5.0GHz, 8P/6E/20t, UHD Graphics 770, Unlocked

Product Type:

CPU

Type Detail:

Intel Socket 1700 (12/13/14 Gen)

Manufacturer:

Intel

Manufacturer #:

BX8071512700K

Part Status:

Current Stock

Milwaukee PC SKU:

160960

Price:

$364.99

Quick Tech Specs

Manufacture:	Intel / 12th Gen
Socket:	LGA 1700 / Unlocked
Family:	Core I7 / 12700K
Clock Speed:	3.60 GHz
Max Clock Speed:	Max Clock Speed / 5.00 GHz
Cores:	Tetradeca-Core (14) / 8 P cores - 6 E cores
Graphics Controller:	None
Heatsink and Fan:	Not Included
Hyper-Threading:	Yes
Cache:	CPU Cache / 25 MB Intel® Smart Cache
L2 Cache:	12MB
Thermal Power:	Approx. TDP / Base Power 125 W/Turbo Power 190 W
Threads:	20
Virtualization Technology:	Yes

Intel Core i7-12700K Processor Unlocked

Essentials

Lithography: Intel 7
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020A
Embedded Options Available: No

Performance

Total Cores: 12
# of Performance-cores: 8
# of Efficient-cores: 4
Total Threads: 20
Max Turbo Frequency: 5.00 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency: 5.00 GHz
Performance-core Max Turbo Frequency: 4.90 GHz
Efficient-core Max Turbo Frequency: 3.80 GHz
Performance-core Base Frequency: 3.60 GHz
Efficient-core Base Frequency: 2.70 GHz
Cache: 25 MB Intel® Smart Cache
Total L2 Cache: 12 MB
Processor Base Power: 125 W
Maximum Turbo Power: 190 W

Memory Specifications

Max Memory Size (dependent on memory type): 128 GB
Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s

Graphics Specifications

Processor Graphics: Intel® UHD Graphics 770
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.50 GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 32
Max Resolution (HDMI): 4096 x 2160 @ 60Hz
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
DirectX Support: 12
OpenGL Support: 4.5
Multi-Format Codec Engines: 2
Intel® Quick Sync Video: Yes
Intel® Clear Video HD Technology: Yes
# of Displays Supported: 4
Device ID: 0x4680
OpenCL Support: 2.1

Expansion Options

Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20

Advanced Technologies

Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Intel® Optane™ Memory Supported: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes

Security & Reliability

Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® OS Guard: Yes
Execute Disable Bit: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBE): Yes
Intel® Control-Flow Enforcement Technology: Yes
