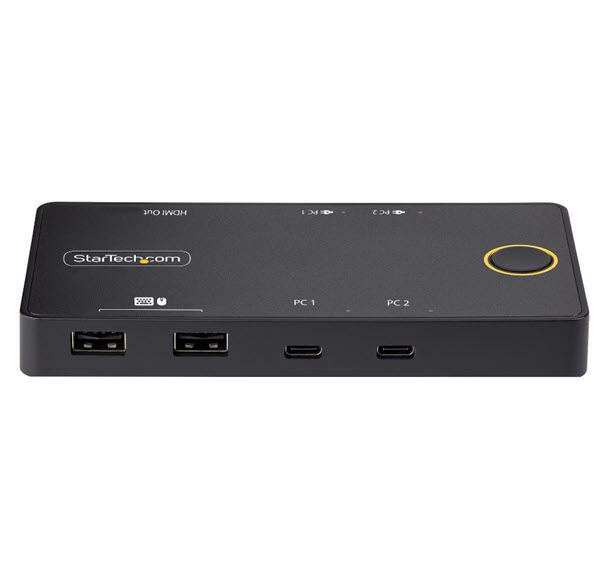

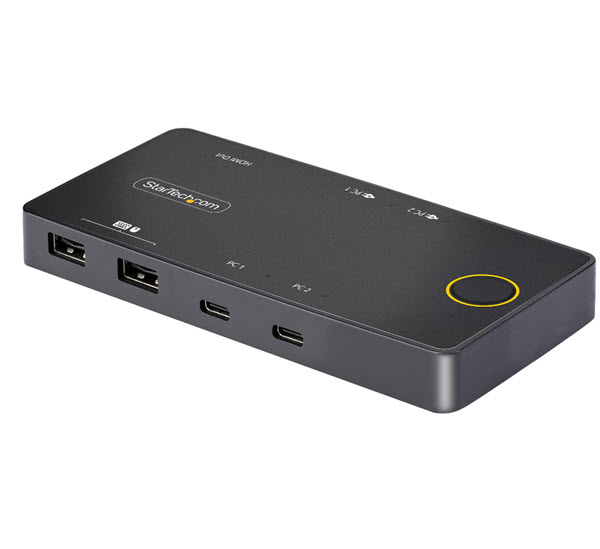

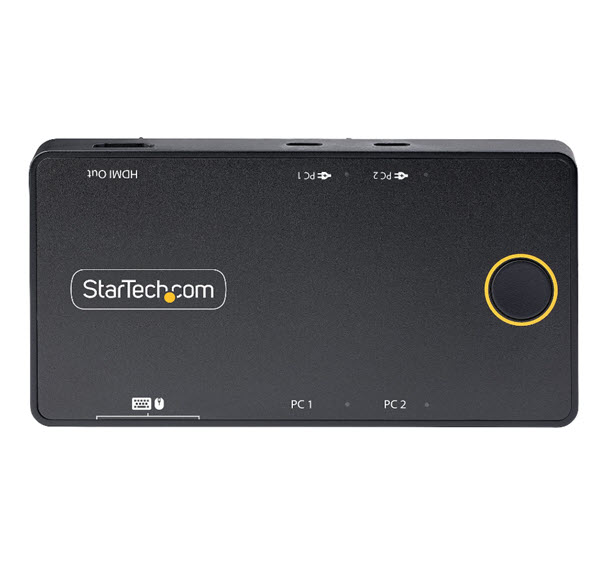

2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor
DUAL LAPTOP CHARGING: 100W Power Delivery Pass-Through is enabled using dedicated USB-C Power Adapters (not included), with 10W reserved and up to 90W charging available for each host laptop simultaneously using the two PD 3.0 pass-through ports
4K 60HZ USB-C KVM SWITCH: Enables fast switching of a keyboard, video, and mouse using a single USB-C cable connected to a laptop that supports USB-C DP Alt Mode; It features a 4K 60Hz HDMI output, two USB HID ports, and pushbutton switching
COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook); Works with USB-C, USB4, Thunderbolt 3/4 laptops
READY TO DEPLOY: Compact KVM is bus powered and includes two 3ft/1m USB-C host cables; Small form factor is sturdy and features attached rubber feet, keeping the KVM in place during use; Streamlined Port Layout; LED Indicators for Port and Charging Status
Highlights
- Console Interface(s): 2 - USB 2.0 Type-A (4 pin, 480Mbps),
1 - HDMI,
2 - USB Type-C (24 pin) USB Power Delivery Only
- Host Connectors: 2 - USB 3.2 Gen 2 USB Type-C (Power Delivery + Data, 24 Pin, 10 Gbps)
- Audio: Yes
- KVM Ports: x 2
- PC Interface: USB-C
- PC Video Type: HDMI
- Number of Monitors Supported: 1
- Rack-Mountable: No
- Cables Included: Yes
- Industry Standards: HDMI 2.1 TMDS
- Chipset ID: VLI - VL103R,
VLI - VL171,
Parade - PS186,
VLI - VL817
- LED Indicators: 2 - Power Input LED: Solid Blue = USB-C Power Adapter connected,
2 - Host Connection LED: Solid Blue = Port Selected
- Maximum Data Transfer Rate: 480Mbps (USB 2.0)
-
Maximum Digital Resolutions Supported Resolutions: 4096 x 2160 @ 60Hz,
5120 x 1440 @ 60Hz,
4096 x 2160 @ 60Hz,
3840 x 2160 @ 60Ha,
3840 x 2160 @ 60Hz,
3440 x 1440 @ 60Hz,
2560 x 1440 @ 60Hz,
2560 x 1080 @ 75Hz,
1920 x 1200 @ 60Hz,
1920 x 1080 @ 60Hz
- Wide Screen Supported: Yes
- Audio Specifications: HDMI - 7.1 Channel Audio
- Auto Scan: None
- Port Selection Support: Push Button
- General Specifications: Power Delivery Pass-through: 100W, Maximum Device Charging: 90W
- Power Source: Bus Powered and Host USB-C Power Adapter
- Note: Host device must support USB-C DP Alt Mode for video functionality to work,
Host device must support Power Delivery to charge when a USB-C Power Adapter is connected to the Power Delivery Pass-through Port
- Included in Package: KVM Switch, USB-C Host Cables, Quick-Start Guide
- Warranty: 2 Years
