AX3000 Dual Band WiFi 6 PoE+ Access Point
TRENDnet’s high-performance AX3000 Dual Band WiFi 6 PoE+ Access Point, model TEW-923DAP, features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 2402Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The access point also supports Access Point (AP) and Repeater modes.
Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments, and includes a convenient wall / ceiling mounting plate.
Two concurrent high-speed WiFi 6 bands to maximize device networking speeds: 2402Mbps on 5GHz and 573Mbps on 2.4GHz.
Saves installation time and setup costs with 2.5GbE PoE+ support, delivering power and data over one set of cables.
MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.
Highlights

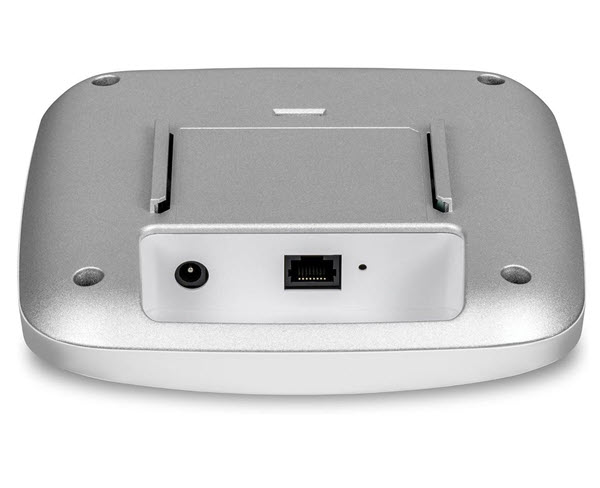

- Hardware Interface: 1 x 802.3at PoE+ 2.5GBASE-T LAN port (power input),
Power port (12V DC, 1.5A external power adapter not included), LED indicator, Reset button
- Features: MU-MIMO, Band steering, 802.1Q VLAN assignment per SSID, IPv4 static/DHCP address assignment, UPnP/Bonjour
- Operation Modes: Access Point, Repeater
- Standards: IEEE 802.3,
IEEE 802.3u,
IEEE 802.3x,
IEEE 802.3ab,
IEEE 802.3at,
IEEE 802.3bz,
IEEE 802.1Q,
IEEE 802.11a,
IEEE 802.11b,
IEEE 802.11g,
IEEE 802.11k,
IEEE 802.11n (up to 300Mbps),
IEEE 802.11r,
IEEE 802.11v,
IEEE 802.11ac (up to 867Mbps),
IEEE 802.11ax (up to 2402Mbps on 5GHz, up to 573Mbps on 2.4GHz)
- Management/Monitoring: Web based management (HTTP/HTTPS),
Command Line Interface (Telnet/SSH),
SNMP v2c/v3,
Spanning Tree Protocol (STP),
Event logging,
Ping test,
Traceroute,
Schedule WiFi radio enable/disable,
Ping watchdog/gateway connection monitor,
Reboot & scheduled automatic reboot,
Channel utilization scan
- Access Control: Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal), MAC filter with scheduling, Maximum client limit, Client isolation
- QoS: Bandwidth control per SSID
- SSID: Up to 8 SSIDs per wireless band (16 total)
- Frequency: 2.4GHz: 2.412 – 2.472GHz, 5GHz: 5.180 – 5.825GHz
- Wireless Channels: 2.4GHz: FCC: 1–11, ETSI: 1–13,
5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 408, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161 and 165,
ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
- Modulation: DBPSK/DQPSK/CCK for DSSS technique, BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique
- Antenna Gain: 2.4GHz: 2 x 4.5 dBi internal, 5GHz: 2 x 5.5 dBi internal
- Wireless Output Power: 802.11b/g/n/ac/ax (2.4GHz): FCC: 18 dBm (max.) / CE: 18 dBm (max.), 802.11a/n/ac/ax (5GHz): FCC: 18 dBm (max.) / CE: 18 dBm (max.)
- Receiving Sensitivity: 802.11a: -72 dBm (typical) @ 54Mbps,
802.11b: -97 dBm (typical) @ 11Mbps,
802.11g: -75 dBm (typical) @ 54Mbps,
802.11n (2.4 GHz): -72 dBm (typical) @ 300Mbps,
802.11n (5 GHz): -70 dBm (typical) @ 300Mbps,
802.11ac: -60 dBm (typical) @ 867Mbps,
802.11ax (2.4GHz): -60 dBm (typical) @ 573Mbps,
802.11ax (5GHz): -52 dBm (typical) @ 2402Mbps

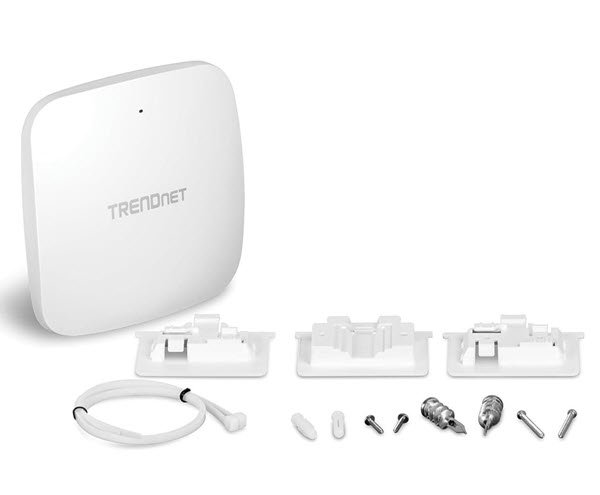

- PACKAGE CONTENTS: TEW-923DAP, Quick Installation Guide, Network cable (0.5m / 1.64 ft.), Mounting plates
- Warranty: 3 Years
