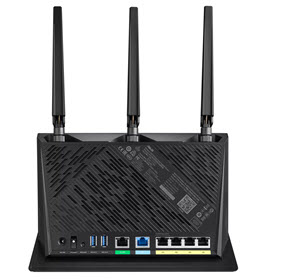

RT-AX86 Series
Enjoy the fastest, smoothest WiFi gaming connections ever with the ASUS RT-AX86 Series dual-band WiFi 6 router. It delivers ultrafast WiFi speeds up to 5700 Mbps**, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience.
RT-AX86 Series brings you all the benefits of WiFi 6 (802.11ax), and works perfectly with all your existing WiFi devices!
The dedicated gaming port on RT-AX86 Series automatically prioritizes any wired device connected to it. No complex configuration is needed, just connect your gaming PC or console to the special LAN port to give you a fast, stable connection that's always at the head of the queue.
RT-AX86 Series is designed to break down all the barriers that can slow down your gaming. It supports up to a 2 Gbps internet connection, so you can unlock the full potential of high-speed networking for both wired and WiFi connections.
Highlights
- Model: RT-AX86U
- Network Standard: IEEE 802.11a,
IEEE 802.11b,
IEEE 802.11g,
WiFi 4 (802.11n),
WiFi 5 (802.11ac),
WiFi 6 (802.11ax),
IPv4,
IPv6
- Product Segment: AX5700 ultimate AX performance : 861+4804 Mbps
- AX technology: Yes
- Data Rate: 802.11a : up to 54 Mbps,
802.11b : up to 11 Mbps,
802.11g : up to 54 Mbps,
WiFi 4 (802.11n) : up to 450 Mbps,
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps,
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps,
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps,
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
- Antenna: External antenna x 3, Internal PCB antenna x 1
- Transmit/Receive: 2.4GHz 3x3, 5GHz 4x4
- Processor: RT-AX86U: 1.8GHz quad-core processor
- Memory: RT-AX86U: 256 MB Flash, 1 GB RAM
- Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth
- Operating Frequency: 2.4 GHz / 5 GHz
- Ports: RJ45 for 10/100/1000 BaseT for WAN x 1,
RJ45 for 10/100/1000 BaseT for LAN x 4,
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1),
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently. USB 3.2 Gen 1 x 2
- Button: WPS Button, Reset Button, Power Switch, LED on/off Button
- LED Indicator: Power x 1,
2.4GHz x 1,
5GHz x 1,
2.5G Port x 1,
WAN x 1,
LAN x 4,
WPS x 1
- Power Supply: 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
- AiMesh: AiMesh, Primary AiMesh router, AiMesh node
- Router APP: ASUS Router APP
- Game: Game Boost / Acceleration
- Alexa: Support Alexa skill
- AiProtection: AiProtection Pro,
AiProtection,
Malicious site blocking,
Two-Way IPS,
Infected Device Prevention and Blocking
- Parental Control: Parental Control, Parental Control Customized Internet schedule
- Traffic Control: Adaptive QoS,
Bandwidth Monitor,
Bandwidth limiter,
Maximum Bandwidth limiter rule : 32,
Traditional QoS,
Maximum Traditional QoS rule : 32,
Traffic Monitor,
Real-time traffic monitor,
Wired Traffic Monitor,
Wireless Traffic Monitor,
Traffic Analyzer,
Traffic analysis period : Daily, Weekly, Monthly,
Website history
- Wireless: IPv6,
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support,
UTF-8 SSID,
Guest Network,
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3,
Guest Network Connection time limit,
WPS,
WiFi MAC address filter,
Maximum MAC filters : 64,
Wireless scheduler,
Airtime fairness,
RADIUS Client,
Universal beamforming,
Explicit beamforming
- WAN: Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP,
Dual WAN,
WAN Aggregation,
3G/4G LTE dongle,
Android tethering,
Port forwarding,
Maximum port forwarding rule : 64,
Port triggering,
Maximum port triggering rule : 32,
DMZ,
DDNS,
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay,
Safe browsing,
DNS-over-TLS
- LAN: DHCP Server,
IPTV,
LAN Link Aggregation,
Manually assign IP address,
Maximum manually assign IP address rule : 64
- VPN: VPN Client L2TP,
VPN Client OVPN,
VPN Client PPTP,
VPN Client WireGuard,
VPN Server IPSec,
VPN Server OVPN,
VPN Server PPTP,
VPN Server WireGuard,
VPN Fusion
- USB application: File System : HFS+, NTFS, vFAT, ext2, ext3, ext4,
3G/4G LTE dongle,
Safely Remove disk,
AiCloud,
Download master,
AiDisk,
Media Server,
Time Machine,
Samba Server,
FTP Server,
Shared Folder privileges
- Administration: Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode,
Operating system : ASUSWRT,
Free OS upgrade,
Firewall,
Maximum Firewall keyword filter : 64,
Maximum Firewall network service filter : 32,
Maximum Firewall URL filter : 64,
SSH,
Wake on LAN (WOL),
Configuration backup and restore,
Diagnosis tools,
Feedback system,
System log,
New Device Connect Notification,
Login Captcha,
Connection Diagnosis,
Security Scan,
Auto Firmware Update
- Package content: RT-AX86U WiFi router,
RJ-45 cable,
Power adapter,
Quick Start Guide,
Warranty card
