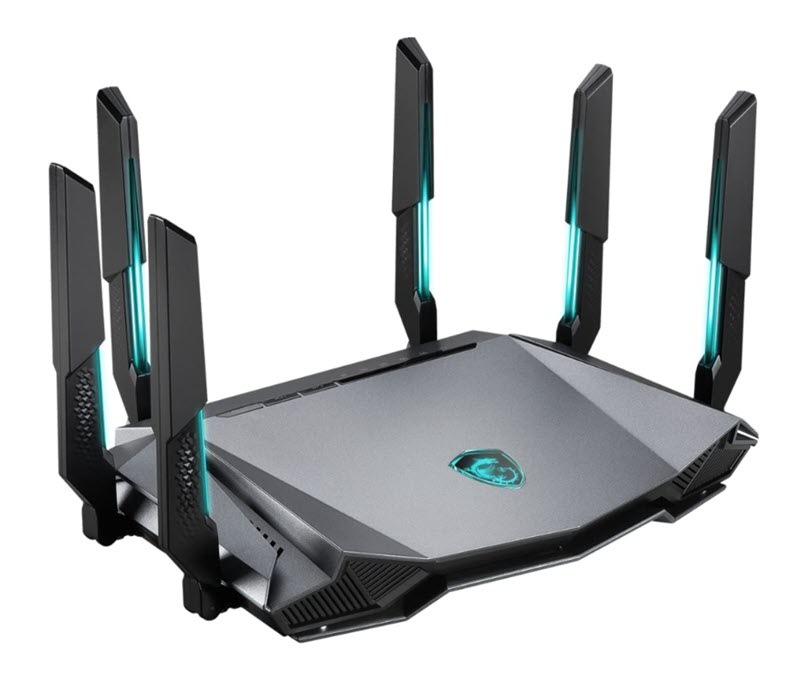

RadiX AXE6600 WiFi 6E Tri-Band

WiFi 6E utilizes seven high-speed 160MHz channels on the new 6 GHz spectrum that tremendously increase network capacity while mitigating congestion and interference.

OFDMA, beamforming, and MU-MIMO are technology enhancements that extend the coverage of your gaming network to more devices. RadiX AXE6600’s superior performance can meet and exceed all your needs for gaming, AR/VR and productivity.

RadiX AXE6600 has a built-in AI engine that can automatically prioritize network traffic. Stay on top whether it’s gaming, binge watching streaming media, or getting work done.

The antenna and dragon shield colors can be tailored to indicate the AI QoS mode or a light effect via MSI center.

Thermal design: heavy duty thermal design with heat pipes ensures the router can handle high-performance workloads.

Highlights

WIFI STANDARDS: WiFi 6E (802.11ax), WiFi 6 (802.11ax), WiFi 5 (802.11ac), WiFi 4 (802.11n), 802.11g, 802.11b, 802.11a
WIFI SPEED: 2.4GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40MHz, up to 574Mbps, 5GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40/80MHz, up to 1201 Mbps, 6GHz AX: 4x4(Tx/Rx) 1024/256-QAM 20/40/80/160MHz, up to 4804 Mbps
OPERATING FREQUENCY: 2.4GHz / 5GHz/ 6GHz
WIFI ENCRYPTION: WPA-PSK, WPA2-PSK, WPA3-PSK
WIFI FEATURES: MU-MIMO, OFDMA, 1024-QAM, Beamforming, Guest WiFi/ Multiple SSID, Smart connect, WPS, WiFi schedule
ANTENNA: High-performance RGB antenna x 6
PROCESSOR: Quad-core 1.8GHz processor
MEMORY: 256 MB flash and 512 MB DDR4 RAM
PARENTAL CONTROL: Web & App Filter, Customized Internet schedule
TRAFFIC CONTROL: AI QoS, Traditional QoS, Bandwidth limiter, Real-time traffic monitor
FIREWALL: DOS, Access Control : Service / IP, Inbound Filter, URL Filter
WAN: WAN Type : DHCP / Static IP / PPPoE / PPTP / L2TP, Port triggering, Port forwarding, DMZ, NAT Passthrough : PPTP / L2TP / IPSec / RTSP / H.323 / SIP / PPPoE

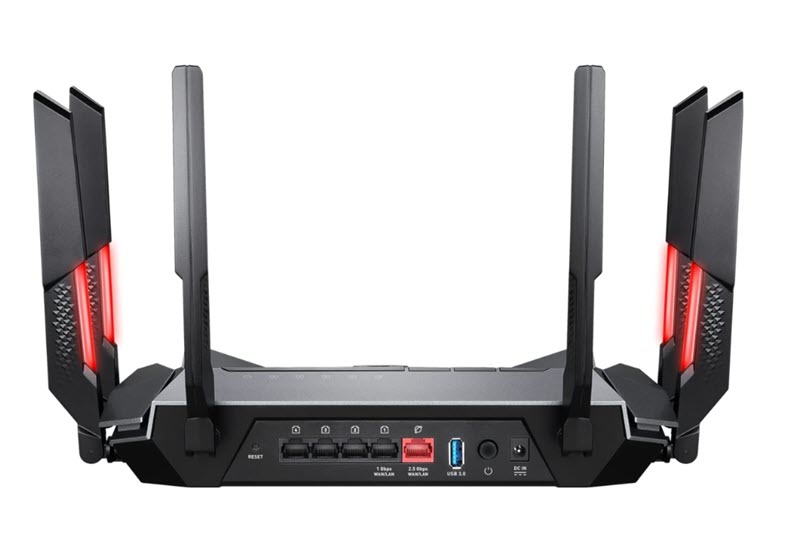

WIRED INTERFACE: 2.5 Gigabits port for WAN/LAN x1, Gigabit port for WAN/LAN x1, Gigabit port for LAN x3, USB 3.0 Gen 1 x1
USB APPLICATION: Media Server, Samba Server, FTP Server, Safely Remove
BUTTON: Dragon Shield, WPS, WiFi, LED, Power, Reset
LED INDICATIOR: Power, Internet, LAN 1-4
MANAGEMENT: Web GUI, MSI Router app (iOS and Android), MSI center
OPERATION MODE: Router mode, AP mode
POWER SUPPLY: AC Input : 100V~240V(50/60Hz), DC Output : 12 V with max. 3.5 A
PACKAGE CONTENTS: RadiX AXE6600 WiFi 6E Tri-Band Gaming Router (GRAXE66), Ethernet cable, Quick start guide, Power adapter
