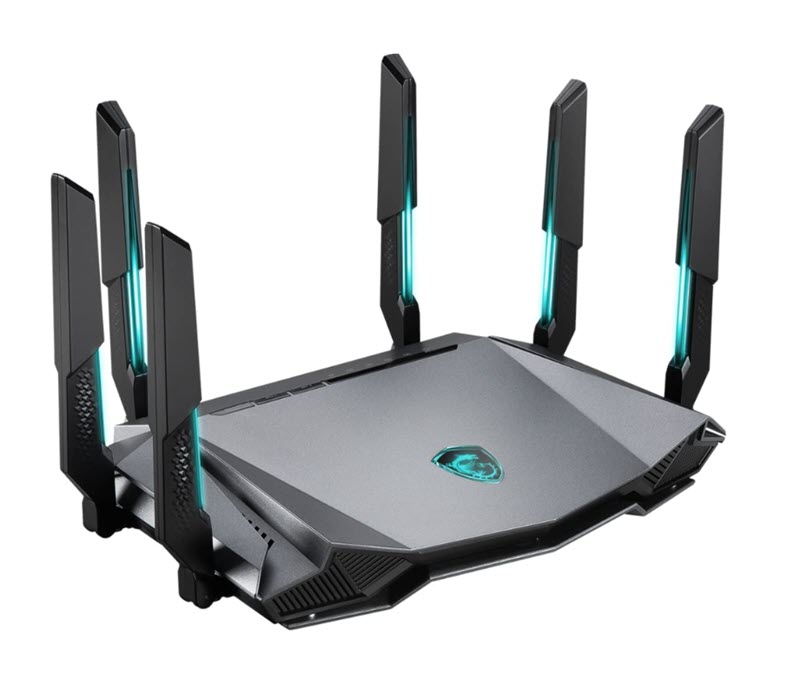

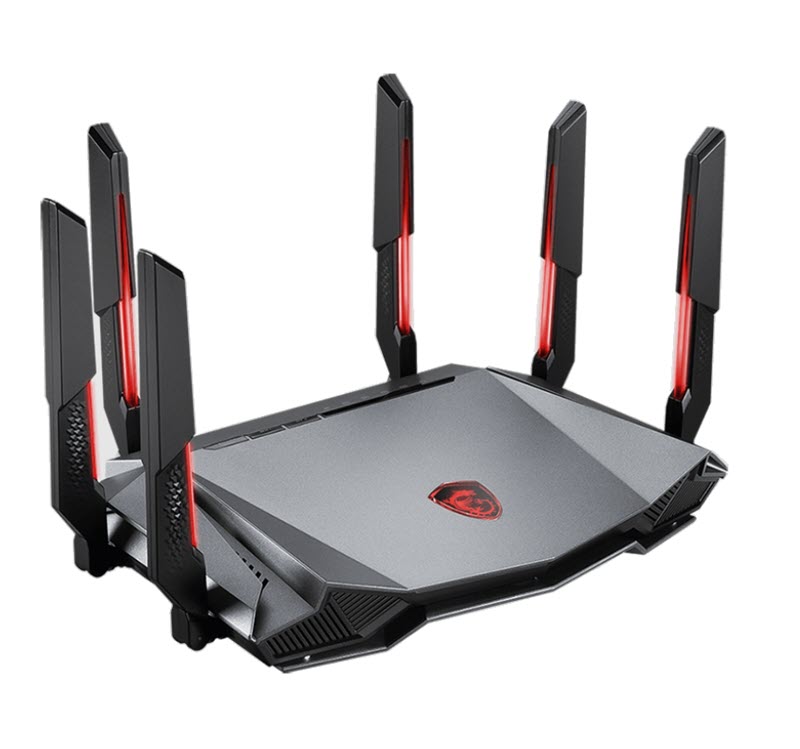

RadiX AXE6600
WiFi 6E utilizes seven high-speed 160MHz channels on the new 6 GHz spectrum that tremendously increase network capacity while mitigating congestion and interference.
OFDMA, beamforming, and MU-MIMO are technology enhancements that extend the coverage of your gaming network to more devices. RadiX AXE6600’s superior performance can meet and exceed all your needs for gaming, AR/VR and productivity.
RadiX AXE6600 delivers lightning fast transfer speeds up to 6600Mbps. Download, stream, and game like never before.
RadiX AXE6600 has a built-in AI engine that can automatically prioritize network traffic. Stay on top whether it’s gaming, binge watching streaming media, or getting work done.
Equipped with 1x 2.5 Gigabit port and 4x Gigabit ports. The 2.5 Gigabit port can be reassigned to handle either internet or LAN.
Highlights
- WiFi STANDARDS: WiFi 6E (802.11ax),
WiFi 6 (802.11ax),
WiFi 5 (802.11ac),
WiFi 4 (802.11n),
802.11g,
802.11b,
802.11a
- WiFi SPEED: 2.4GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40MHz, up to 574Mbps,
5GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40/80MHz, up to 1201 Mbps,
6GHz AX: 4x4(Tx/Rx) 1024/256-QAM 20/40/80/160MHz, up to 4804 Mbps
- OPERATING FREQUENCY: 2.4GHz / 5GHz/ 6GHz
- WiFi ENCRYPTION: WPA-PSK,
WPA2-PSK,
WPA3-PSK
- WiFi FEATURES: MU-MIMO,
OFDMA,
1024-QAM,
Beamforming,
Guest WiFi/ Multiple SSID,
Smart connect,
WPS,
WiFi schedule
- ANTENNA: High-performance RGB antenna x 6
- PROCESSOR: Quad-core 1.8GHz processor
- MEMORY: 256 MB flash and 512 MB DDR4 RAM
- PARENTAL CONTROL: Web & App Filter, Customized Internet schedule
- TRAFFIC CONTROL: AI QoS,
Traditional QoS,
Bandwidth limiter,
Real-time traffic monitor
- FIREWALL: DOS,
Access Control : Service / IP,
Inbound Filter,
URL Filter
- WAN: WAN Type : DHCP / Static IP / PPPoE / PPTP / L2TP,
Port triggering,
Port forwarding,
DMZ,
NAT Passthrough : PPTP / L2TP / IPSec / RTSP / H.323 / SIP / PPPoE

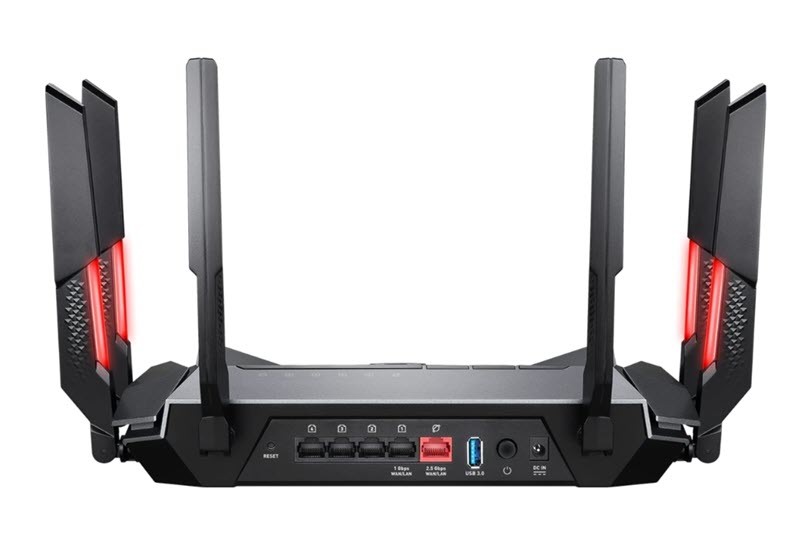

- WIRED INTERFACE: 2.5 Gigabits port for WAN/LAN x1,
Gigabit port for WAN/LAN x1,
Gigabit port for LAN x3,
USB 3.0 Gen 1 x1
- USB APPLICATION: Media Server,
Samba Server,
FTP Server,
Safely Remove
- BUTTON: Dragon Shield, WPS, WiFi, LED, Power, Reset
- LED INDICATIOR: Power, Internet, LAN 1-4
- MANAGEMENT: Web GUI, MSI Router app (iOS and Android), MSI center
- OPERATION MODE: Router mode< AP mode
- POWER SUPPLY: AC Input : 100V~240V(50/60Hz), DC Output : 12 V with max. 3.5 A
- PACKAGE CONTENTS: RadiX AXE6600 WiFi 6E Tri-Band Gaming Router (GRAXE66),
Ethernet cable,
Quick start guide,
Power adapter
