RT-AX3000
The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current Wi-Fi standard. The latest 802.11ax standard provides future-proof technologies, higher network efficiency, faster Wi-Fi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.
*It requires 802.11ax-compatible devices to enjoy the benefits brought by 802.11ax WiFi standard.

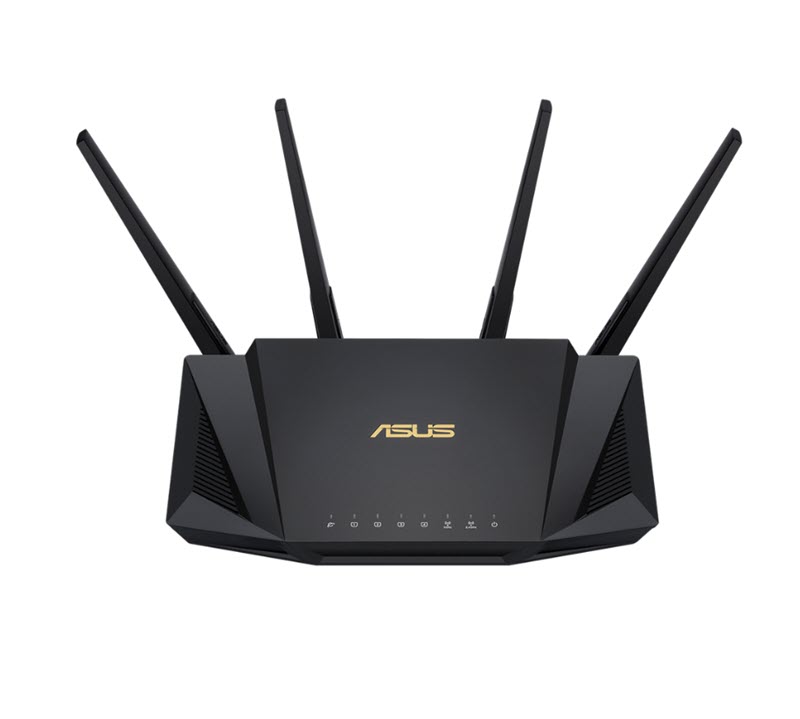

RT-AX3000 is a 2x2 dual-band Wi-Fi router that provides 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band — RT-AX3000 is 2.5X faster than 802.11ac 2x2 dual-band routers.
With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac Wi-Fi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax Wi-Fi standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.
Highlights
- Model: RT-AX3000
- Network Standard:
IEEE 802.11a,
IEEE 802.11b,
IEEE 802.11g,
WiFi 4 (802.11n),
WiFi 5 (802.11ac),
WiFi 6 (802.11ax),
IPv4,
IPv6
- Product Segment: AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
- AX technology: Yes
- Data Rate:
802.11a : up to 54 Mbps,
802.11b : up to 11 Mbps,
802.11g : up to 54 Mbps,
WiFi 4 (802.11n) : up to 300 Mbps,
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps,
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps,
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
- Antenna: External antenna x 4
- Transmit/Receive: 2.4GHz 2x2, 5GHz 2x2
- Memory: 256 MB Flash, 512 MB RAM
- Boosts speed:
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth
- Operating Frequency: 2.4G Hz / 5 GHz

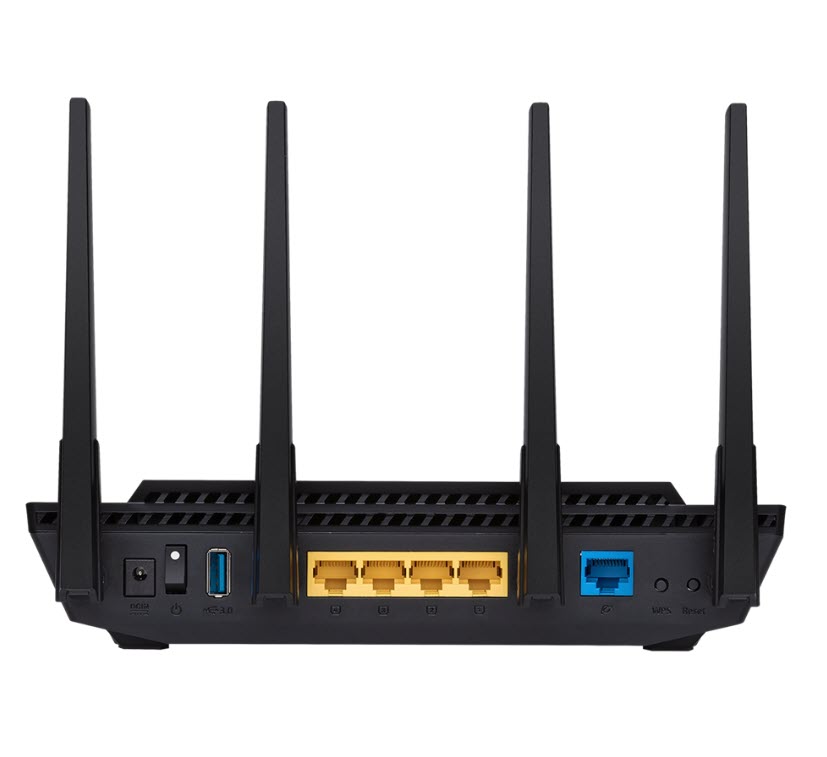

- Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1
- Button: WPS Button, Reset Button, Power Switch
- LED Indicator:
Power x 1,
2.4G x 1,
5G x 1,
LAN x 4,
WAN x 1
- AiMesh: AiMesh, Primary AiMesh router, AiMesh node
- Router APP: ASUS Router APP
- Alexa: Support Alexa skill
- AiProtection:
AiProtection Pro,
AiProtection,
Malicious site blocking,
Two-Way IPS,
Infected Device Prevention and Blocking
- Parental Control: Parental Control, Parental Control Customized Internet schedule
- Traffic Control:
Adaptive QoS,
Bandwidth Monitor,
Bandwidth limiter,
Maximum Bandwidth limiter rule : 32,
Traditional QoS,
Maximum Traditional QoS rule : 32,
Traffic Monitor,
Real-time traffic monitor,
Wired Traffic Monitor,
Wireless Traffic Monitor,
Traffic Analyzer,
Traffic analysis period : Daily, Weekly, Monthly Website history
- Wireless:
IPv6
Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID,
Guest Network,
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3,
Guest Network Connection time limit,
WPS,
WiFi MAC address filter,
Maximum MAC filters : 64,
Wireless scheduler,
Airtime fairness,
RADIUS Client,
Universal beamforming,
Explicit beamforming
- WAN:
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP,
Dual WAN,
3G/4G LTE dongle,
Android tethering,
Port forwarding,
Maximum port forwarding rule : 64,
Port triggering,
Maximum port triggering rule : 32,
DMZ,
DDNS,
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
- LAN:
DHCP Server,
IPTV,
Manually assign IP address,
Maximum manually assign IP address rule : 64
- VPN:
VPN Client L2TP,
VPN Client OVPN,
VPN Client PPTP,
VPN Server IPSec,
VPN Server OVPN,
VPN Server PPTP
- USB application:
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4,
3G/4G LTE dongle,
Safely Remove disk,
AiCloud,
Download master,
AiDisk,
Media Server,
Time Machine,
Samba Server,
FTP Server,
Shared Folder privileges
- Administration:
Operating mode : Wireless router mode,
Access point mode,
Media bridge mode,
Repeater mode,
AiMesh node mode,
Operating system : ASUSWRT,
Free OS upgrade,
Firewall,
Maximum Firewall keyword filter : 64,
Maximum Firewall network service filter : 32,
Maximum Firewall URL filter : 64,
SSH,
Wake on LAN (WOL),
Configuration backup and restore,
Diagnosis tools,
Feedback system,
System log
