ASUS ZenWiFi AX (XT8)

The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.

Highlights

Model: ASUS ZenWiFi AX (XT8)
Network Standard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6
Product Segment: AX6600 ultimate AX performance:574+1201+4804Mbps
AX technology: Yes
Data Rate: 802.11a : up to 54 Mbps, 802.11b : up to 11 Mbps, 802.11g : up to 54 Mbps, WiFi 4 (802.11n) : up to 300 Mbps, WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps, WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps, WiFi 6 (802.11ax) (5GHz-1) : up to 1201 Mbps, WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
Antenna: Internal antenna x 6
Transmit/Receive: 2.4GHz 2x2, 5GHz-1 2x2, 5GHz-2 4x4
Memory: 256 MB Flash, 512 MB RAM
Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth
Operating Frequency: 2.4G Hz, 5 GHz-1, 5 GHz-2

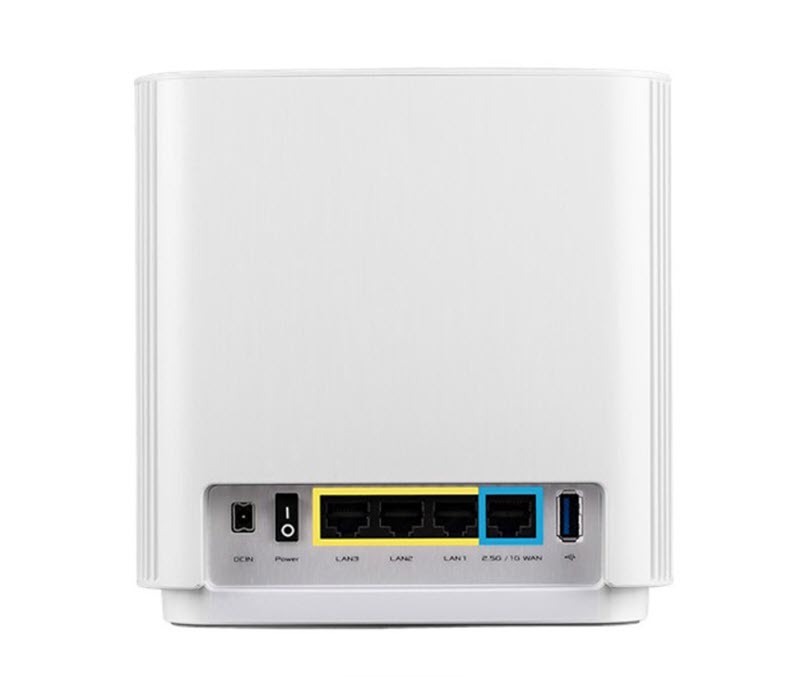

Ports: RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3, USB 3.1 Gen 1 x 1
Button: WPS Button, Reset Button, Power Switch
LED Indicator: Power x 1
Power Supply: AC Input : 110V~240V(50~60Hz), DC Output : 19 V with max. 1.75 A current, DC Output : 12 V with max. 3 A current
AiMesh: AiMesh, Primary AiMesh router, AiMesh node
Router APP: ASUS Router APP
Alexa: Support Alexa skill
AiProtection: AiProtection Pro, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking
Parental Control
Traffic Control: Adaptive QoS, Traffic Monitor, Traffic Analyzer
Wireless: IPv6, Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support, UTF-8 SSID, Guest Network, Maximum Guest Network rule : Max 9 rules, WPS, WiFi MAC address filter, Maximum MAC filters : Max 64 rules, Wireless scheduler, Airtime fairness, RADIUS Client, Universal beamforming, Explicit beamforming
WAN: Dual WAN, 3G/4G LTE dongle, DMZ, DDNS, Let's Encrypt, Safe browsing, DNS-over-TLS
LAN: IGMP snooping, IPTV
VPN: VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Fusion, VPN Server WireGuard
USB application: File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4, AiCloud, Download master, AiDisk, Media Server, Time Machine, Samba Server
Administration: Operating mode : Wireless router mode, Range extender mode, Access point mode, Firewall, Maximum Firewall keyword filter : Max 64 rules, Maximum Firewall network service filter : Max 32 rules, Maximum Firewall URL filter : Max 64 rules, Wake on LAN (WOL), Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Security Scan, Auto Firmware Update
Package content: ZenWiFi AX, RJ-45 Cable, Power Adapter, Quick Start Guide, Warranty Card
