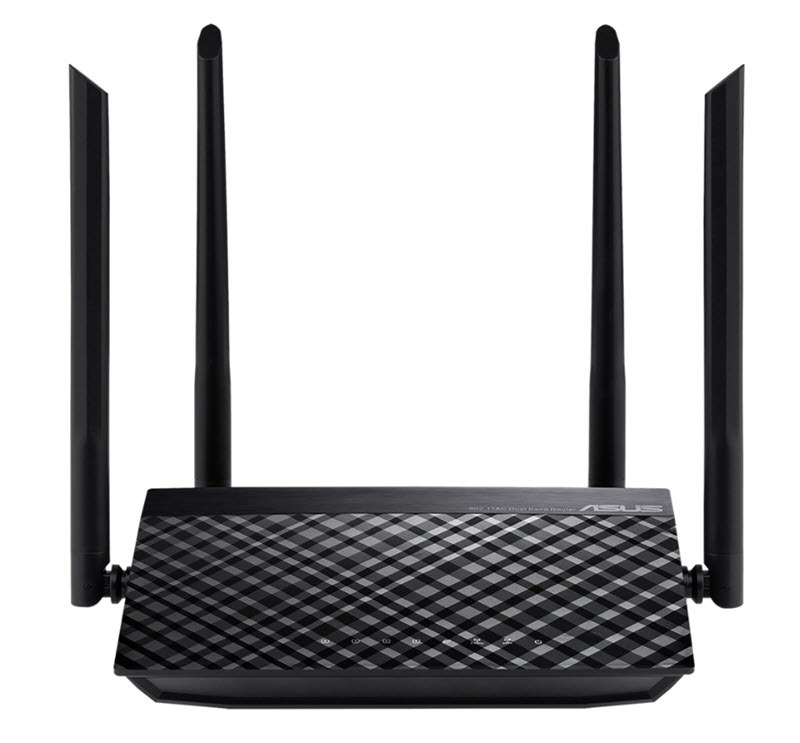

RT-AC1200 V2
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. On top of 30-second setup, multi-device detection, and flexible settings that make the most of your network performance. Dual WAN enables having two connections/ISPs on one router, with load balance and failover mode for added stability and redundancy to ensure uninterrupted internet access. Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the RT-AC1200 V2 has Quality of Service (QoS) standards that let you select how much bandwidth is prioritized for virtually any task. Plus, the traffic monitor allows you to check your Web usage in a clear graphical interface.
In your increasingly mobile-enabled life, having control over your network via an app is more important than ever. The new ASUS Router App is built from the ground-up to be both intuitive and robust, allowing you to setup your router, manage network traffic, diagnose connection issues and even update firmware, all without needing to boot up a PC.
Powered by 5th generation Wi-Fi (5G Wi-Fi), the 802.11ac chipset gives the RT-AC1200 V2 faster wireless speeds than N technology. At 2.4 GHz, it reaches 300 Mbps, while on the 5GHz band it blazes to 867 Mbps. The upgraded bandwidth has the higher capacity you need to increase Wi-Fi enjoyment at home. With notebooks, desktops, pads, and smartphones now all Wi-Fi-reliant, it’s time to upgrade to the next generation to expand you connectivity now and in the future.
Delivering both 2.4 GHz and 5 GHz concurrent bands up to 300Mbps and 867Mbps respectively, the RT-AC1200 V2 has a total speed of up to 1167Mbps connectivity to provide speed with stability. Perform basic internet tasks like Web browsing and file downloading under the 2.4 GHz band, while also simultaneously streaming 3D HD content and other demanding applications smoothly on the 5 GHz band.
Highlights
- Model: RT-AC1200 V2
- Network Standard:
IEEE 802.11a,
IEEE 802.11b,
IEEE 802.11g,
WiFi 4 (802.11n),
WiFi 5 (802.11ac),
IPv4,
IPv6,
IEEE 802.11e,
IEEE 802.11i
- Product Segment: AC1200 enhanced AC performance : 300+867 Mbps
- Data Rate:
802.11a : up to 54 Mbps,
802.11b : up to 11 Mbps,
802.11g : up to 54 Mbps,
WiFi 4 (802.11n) : up to 300 Mbps,
WiFi 5 (802.11ac) : up to 867 Mbps
- Antenna: External antenna x 4
- Transmit/Receive:
MIMO technology,
2.4GHz 2x2,
5GHz 2x2
- Memory: 16 MB Flash, 64 MB RAM
- Operating Frequency: 2.4GHz, 5GHz

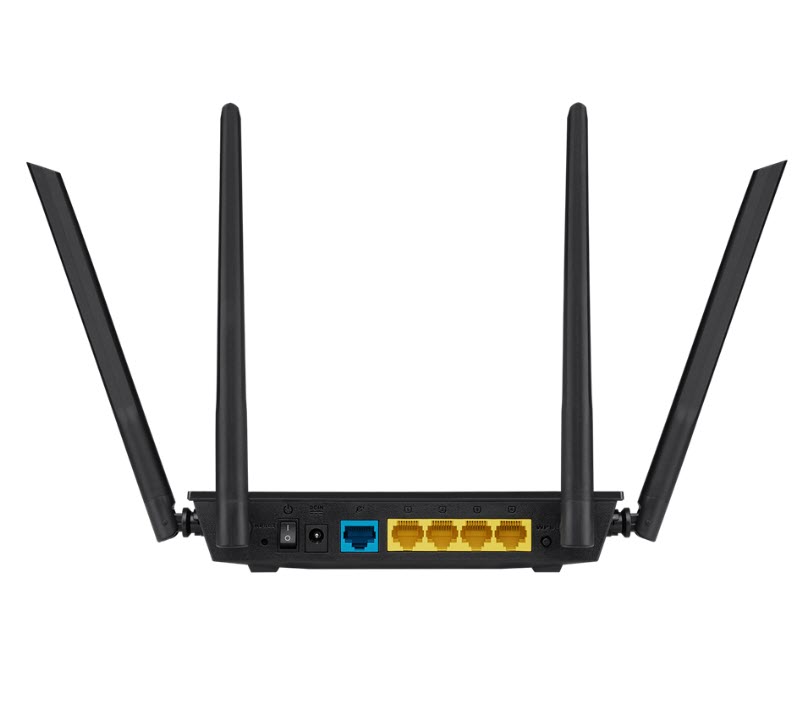

- Ports: RJ45 for 10/100Mbps BaseT for WAN x 1, RJ45 for 10/100Mbps BaseT for LAN x 4
- Button: WPS Button, Reset Button, Power Button
- Power Supply:
AC Input : 110V~240V(50~60Hz),
DC Output : 12 V with max. 0.5 A current
- Router APP: ASUS Router APP
- Parental Control: Parental Control Customized Internet schedule
- Traffic Control:
Bandwidth limiter,
Maximum Bandwidth limiter rule : 32,
Traditional QoS,
Maximum Traditional QoS rule : 32,
Traffic Monitor,
Real-time traffic monitor,
Wired Traffic Monitor,
Wireless Traffic Monitor,
Traffic analysis period : Daily, Weekly, Monthly
- Wireless:
IPv6,
Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise,
UTF-8 SSID,
Guest Network,
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3,
Guest Network Connection time limit,
Guest Network Encryption : Open system, WPA/WPA2-Personal,
WPS,
WiFi MAC address filter,
Maximum MAC filters : 64,
Wireless scheduler,
Airtime fairness,
RADIUS Client,
Explicit beamforming
- WAN:
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP,
Dual WAN,
Port forwarding,
Maximum port forwarding rule : 64,
Port triggering,
Maximum port triggering rule : 32,
DMZ,
DDNS,
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
- LAN:
DHCP Server,
IPTV,
Manually assign IP address,
Maximum manually assign IP address rule : 64
- USB application: File System : FAT16, FAT32, NT3G
- Administration:
Operating mode : Accesspoint, Router,
Operating system : ASUSWRT,
Free OS upgrade,
Firewall,
Maximum Firewall keyword filter : 64,
Maximum Firewall network service filter : 32,
Maximum Firewall URL filter : 64,
SSH,
Wake on LAN (WOL),
Configuration backup and restore,
Diagnosis tools,
Feedback system,
System log
- Package content:
1 x RT-AC1200 V2 Wi-Fi router,
1 x Power adapter,
1 x QSG,
1 x Warranty card
