AC1200 Dual Band WiFi
TRENDnet's AC1200 Dual Band WiFi EasyMesh Remote Node is designed for use with your existing TRENDnet EasyMesh WiFi system to further expand your home or small offices WiFi coverage.
Highlights

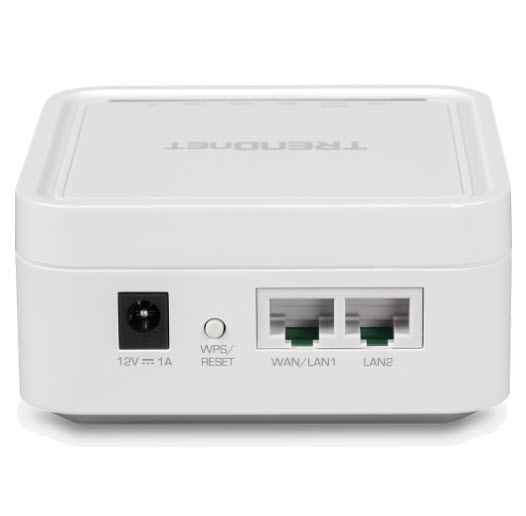

- Device Interface: 2 x Gigabit Ethernet ports (LAN/WAN or 2x LAN), WPS/Reset button, LED indicators
- Standards:
IEEE 802.3 -
IEEE 802.3u -
IEEE 802.3x -
IEEE 802.3ab -
IEEE 802.11a -
IEEE 802.11b -
IEEE 802.11g -
IEEE 802.11n (up to 300Mbps) -
IEEE 802.11ac (up to 867Mbps) -
WiFi EasyMesh R1
- Special Features:
Multi-User MIMO for increased bandwidth efficiency and better user experience -
Seamless WiFi roaming -
IPv6 support -
Implicit/Explicit Beamforming -
Band Steering
- Access Control:
WiFi encryption: WPA/WPA2-PSK AES -
WiFi Guest network -
Hide WiFi Name/SSID -
Wireless client isolation -
NAT -
Port forwarding -
DMZ host -
UPnP -
DoS prevention -
Allow/deny WAN ping requests -
Parental controls (Set schedules for Internet access or filter by custom websites)
- Quality of Service: Set client device priority (Normal/High priority), WMM
- Management/Monitoring:
IOS and Android App based management -
Internal system logging -
Manual or online auto firmware upgrade -
Mesh Connection quality display -
Client device list -
Internet speed test -
Router/AP operation modes
- Frequency: 2.4000 – 2.4835GHz (Industrial Scientific Medical Band), 5.150 – 5.825GHz (subject to local regulations)
- Modulation:
802.11b: CCK, DQPSK, DBPSK -
802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM -
802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM -
802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
- Media Access Protocol: CSMA/CA with ACK
- Antenna Gain: 2 x 4.2 dBi Internal Antenna
- Receiving Sensitivity:
802.11a: -67 dBm (typical) @ 54Mbps -
802.11b: -79 dBm (typical) @ 11Mbps -
802.11g: -67 dBm (typical) @ 54Mbps -
802.11n (2.4GHz, 20MHz): -66 dBm (typical) @ 300Mbps -
802.11n (2.4GHz, 40MHz): -63 dBm (typical) @ 300Mbps -
802.11n (5GHz, 20MHz): -67 dBm (typical) @ 867Mbps -
802.11n (5GHz, 40MHz): -65 dBm (typical) @ 867Mbps -
802.11ac: -56 dBm (typical) @ 867Mbps
- Wireless Channels:
2.4GHz: FCC: 1–11, ETSI: 1-13 -
5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165, ETSI: 36, 40, 44, 48
- PACKAGE CONTENTS:
1 x TEW-832MDR (Remote Node) -
Quick Installation Guide -
1 x Power adapter (12V DC, 1A) -
Wall Mount Screws
- Warranty:
3 year
