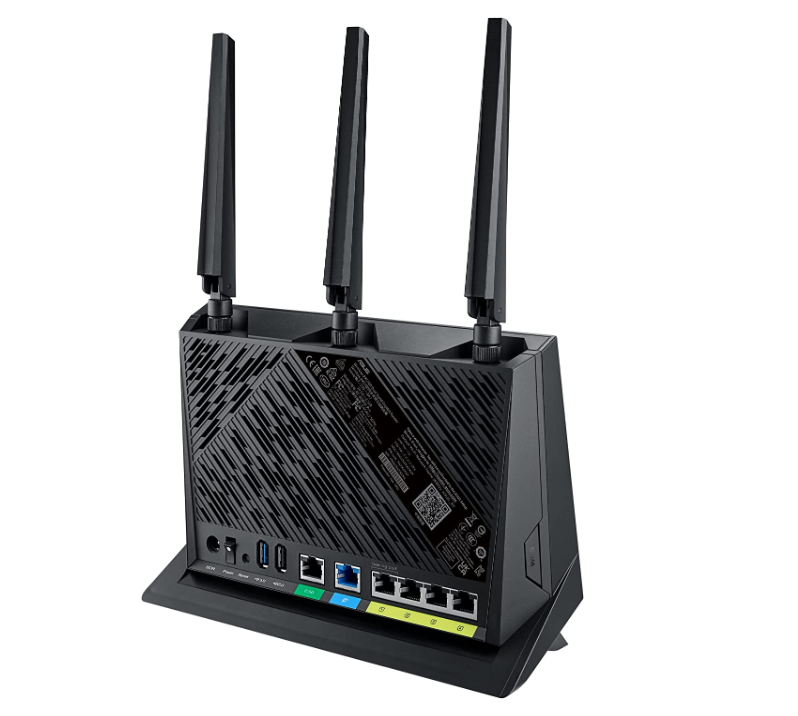

RT-AX86U Pro

Enjoy the fastest, smoothest WiFi gaming connections ever with the ASUS RT-AX86U Pro dual-band WiFi 6 router. It delivers ultrafast WiFi speeds up to 5700 MBps, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience.

The dedicated gaming port on RT-AX86U Pro automatically prioritizes any wired device connected to it. No complex configuration is needed, just connect your gaming PC or console to the special LAN port to give you a fast, stable connection that's always at the head of the queue.

RT-AX86U Pro is powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18%* for lightning-fast, accelerating data transfers and optimizing your gaming experience. *Disclaimer: Compared with former WiFi 6 platform

RT-AX86U Pro is designed to break down all the barriers that can slow down your gaming. It supports up to a 2 Gbps internet connection, so you can unlock the full potential of high-speed networking for both wired and WiFi connections.

Highlights

• Product Segment: AX5700 ultimate AX performance : 861+4804 Mbps
• Operating Frequency: 2.4 GHz / 5 GHz
• Network Standard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6
• AX technology: Yes
• Data Rate: 802.11a : up to 54 Mbps, 802.11b : up to 11 Mbps, 802.11g : up to 54 Mbps, WiFi 4 (802.11n) : up to 450 Mbps, WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps, WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps, WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps, WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
• Antenna: External antenna x 3, Internal PCB antenna x 1
• Transmit/Receive: 2.4GHz 3x3, 5GHz 4x4
• Processor: 2.0GHz quad-core processor
• Memory: 256 MB Flash and 1 GB RAM
• Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth
• Ports: RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1), 2.5G/1Gbps multi-Gig port (configurable) -- LAN: 4xGbE (2x port aggregation LAN) -- WAN: 1 GbE -- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable) -- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently. USB 3.2 Gen1 x1, 2.0 x1
• Button: WPS Button, Reset Button, Power Switch, LED on/off Button
• LED Indicator: Power x 1, 2.4GHz x 1, 5GHz x 1, 2.5G Port x 1, WAN x 1, LAN x 4, WPS x 1
• Power Supply: 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or 12 V with max.3 A current / 19.5 V with max. 2.31 A current
• AiMesh: AiMesh, Primary AiMesh router, AiMesh node
• Router APP: ASUS Router APP
• Game: Game Boost / Acceleration
• Alexa: Support Alexa skill
• AiProtection: AiProtection Pro, AiProtection, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking
• Parental Control: Parental Control, Parental Control Customized Internet schedule, Maximum Parental Control profile : 64, Maximum Parental Control content filter rule : 64
• Traffic Control: Adaptive QoS, Bandwidth Monitor, Bandwidth limiter, Maximum Bandwidth limiter rule : 32, Traditional QoS, Maximum Traditional QoS rule : 32, Traffic Monitor, Real-time traffic monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer, Traffic analysis period : Daily, Weekly, Monthly Website history
• Wireless: IPv6, MU-MIMO, Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support, UTF-8 SSID, Guest Network, Maximum Guest Network rule : 2.4GHz x3, 5GHz x3, Guest Network Connection time limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS, WPS, WiFi MAC address filter, Maximum MAC filters : 64, Wireless scheduler, Airtime fairness, RADIUS Client, Universal beamforming, Explicit beamforming
• WAN: Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, WAN Aggregation, 3G/4G LTE dongle, Android tethering, Port forwarding, Maximum port forwarding rule : 64, Port triggering, Maximum port triggering rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay, Let's Encrypt, Safe browsing, DNS-over-TLS
• LAN: DHCP Server, IPTV, LAN Link Aggregation, Manually assign IP address, Maximum manually assign IP address rule : 64
• VPN: Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
• USB application: File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, 3G/4G LTE dongle, HDD hibernation, Safely Remove disk, AiCloud, Download master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder privileges
• Administration: Operating mode : Wireless router mode, Access point mode, Media bridge mode, Repeater mode, AiMesh node mode, Operating system : ASUSWRT, Free OS upgrade, Firewall, Maximum Firewall keyword filter : 64, Maximum Firewall network service filter : 32, Maximum Firewall URL filter : 64, SSH, Wake on LAN (WOL), Configuration backup and restore, Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Security Scan, Auto Firmware Update
• Package content: RT-AX86U Pro WiFi router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card
