SIIG 4K 60Hz HDMI over IPMatrix
Product Type:
Cables/Adapters
Type Detail:
Gender Changers
Manufacturer:
SIIG
Manufacturer #:
CE-H27G11-S1
Part Status:
Special Order Only
Milwaukee PC SKU:
770053
Price:
$537.99



SIIG 4K 60Hz HDMI over IPMatrix

HDMI over IP Matrix - RX, receives 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, Kit (CE-H28A11-S1), TX (CE-H27F11-S1)

Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations

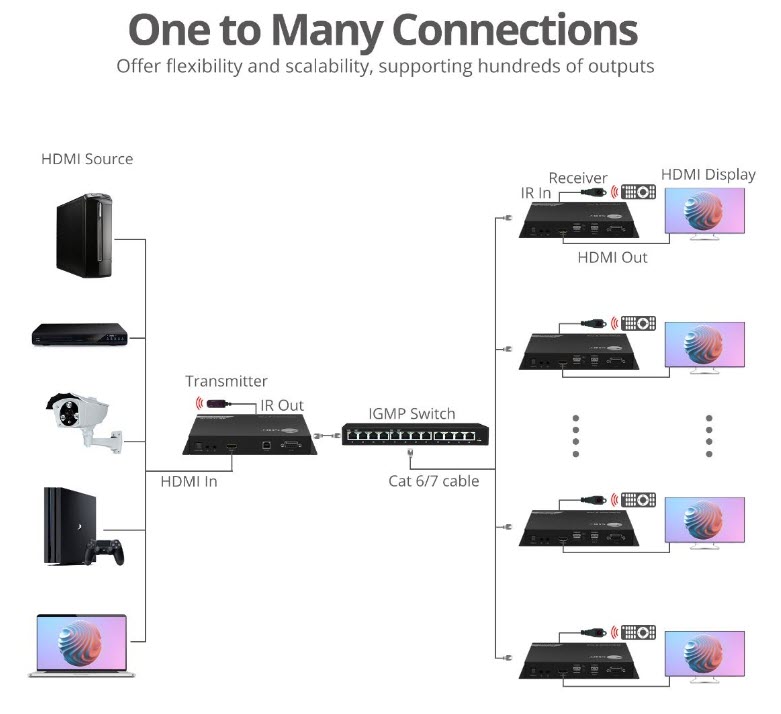

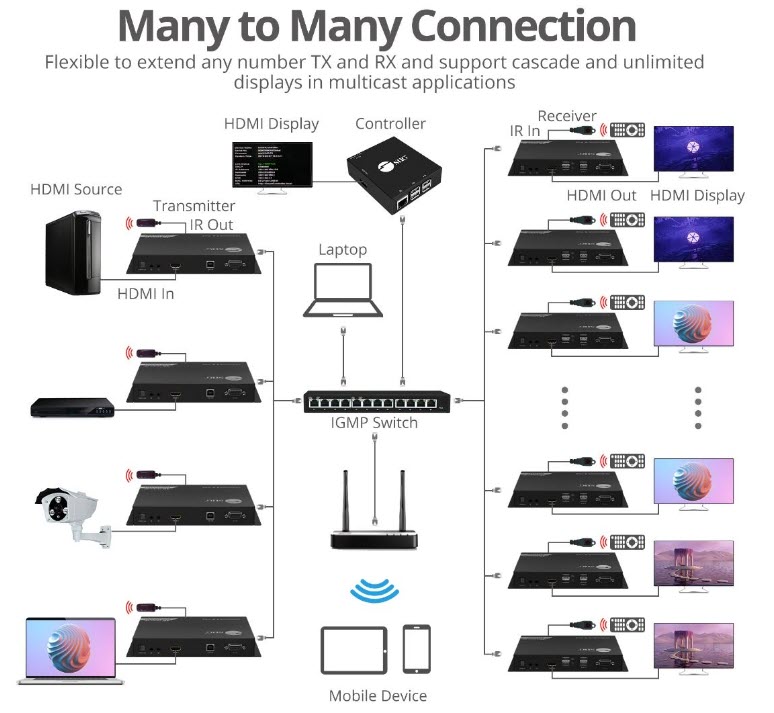

Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional transmitter unit (CE-H27F11-S1), receiver unit (part#- CE-H27G11-S1), and Kit (CE-H28A11-S1) are sold separately *Note: IGMP Gigabit Switch is recommended for best performance and reliability

Highlights

  • HDMI: 1 x output
  • Resolution: 4K (4096x2160)/4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz, HDCP 2.2, 4:4:4, HDR 10
  • Image rotation: 90°, 180°, and 270° clockwise in video wall mode
  • Bandwidth: Up to 18Gbps
  • TCP/IP protocol: Audio/video digital connection transmission protocol
  • Audio: 7.1-ch surround sound from HDMI port, audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1, 5.1-ch surround sound from S/PDIF port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1, 2-ch stereo audio from 3.5mm audio jack, audio format: PCM 2.0
  • IR Pass-through: Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display, Full frequency: 20KHz to 60KHz
  • Power: Power adapter AC 100-240V/50-60Hz, Output: DC 5V/2A, UL listed: E135856/Level: VI, PoE (Power over Ethernet) 48V
  • Dimensions: Dimensions: 6.81” (L) x 1.09” (H) x 5.19" (W)
  • Housing material: Metal (Housing with wall mount design)

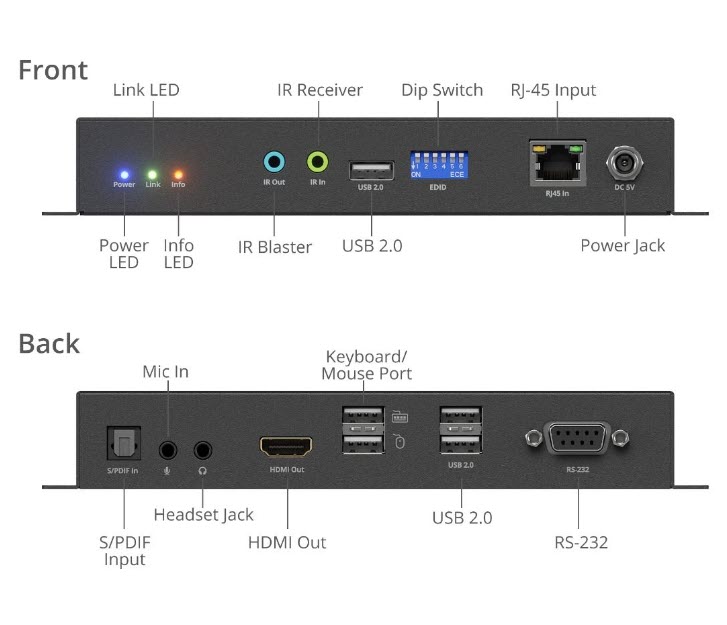

  • Interface: 1x 19-pin, HDMI, Female (output) 1x 4-pin, USB 2.0 Type-A, for webcam connection only, 2x 4-pin, USB 2.0 Type-A, for USB devices, 2x 4-pin, USB 1.1 Type-A, for Keyboard & mouse, 1x 3.5mm infrared jack, IR receiver (input), 1x 3.5mm infrared jack, IR emitter (output), 1x 8-pin, Gigabit Ethernet, RJ45 (input), 1x 6-pin, DIP switch for video channel selection, 1x S/PDIF (Toslink) digital audio (output) * need to be enabled by the controller (part# CE-H25411-S2), 1x 3.5mm phone jack for microphone (input) * need to be enabled by the controller (part# CE-H25411-S2), 1x 3.5mm phone jack for audio (output), 1x 9-pin, RS-232, serial port for control (input), 1x DC power jack, 5V/2A

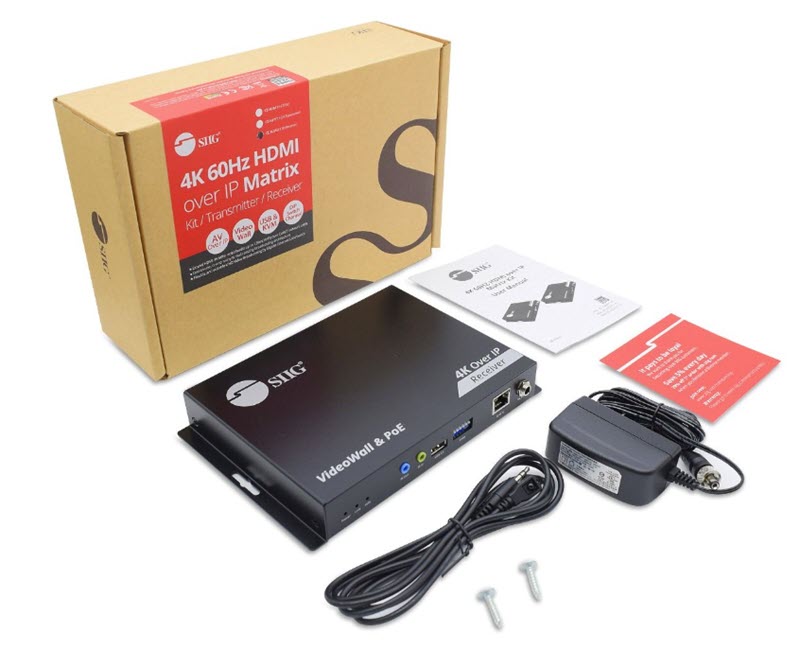

  • Package contents: 1x 4K 60HZ HDMI over IP Matrix- Receiver, 1x 3.5mm IR receiver extension cable, 1x DC power adapter, 5V/2A, 1x Mounting kit, 1x User reference guide
  • Warranty: 3 years limited
