USB Extender Hub, 24m USB 2.0 Extension Cable with 4-Port USB-A Hub
Product Type:
Cables/Adapters
Type Detail:
USB Cables
Manufacturer:
Startech.com
Manufacturer #:
U02442-USB-EXTENDER
Part Status:
Special Order Only
Milwaukee PC SKU:
770032
Price:
$159.99

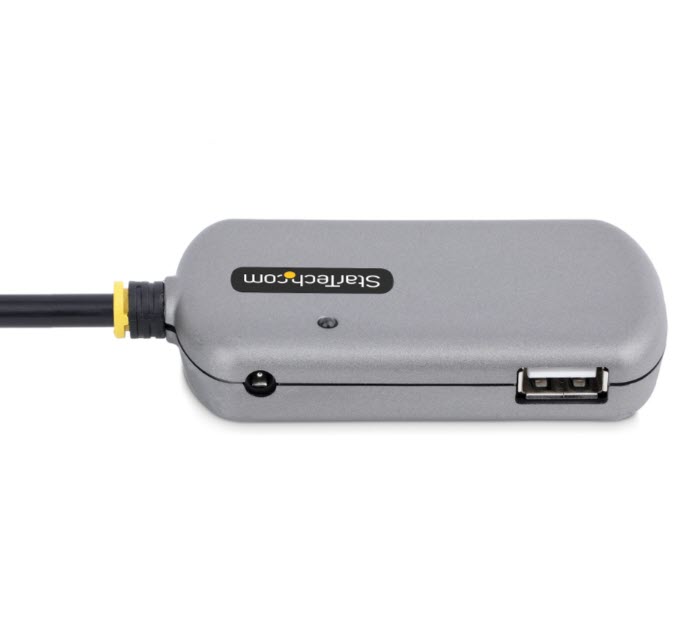

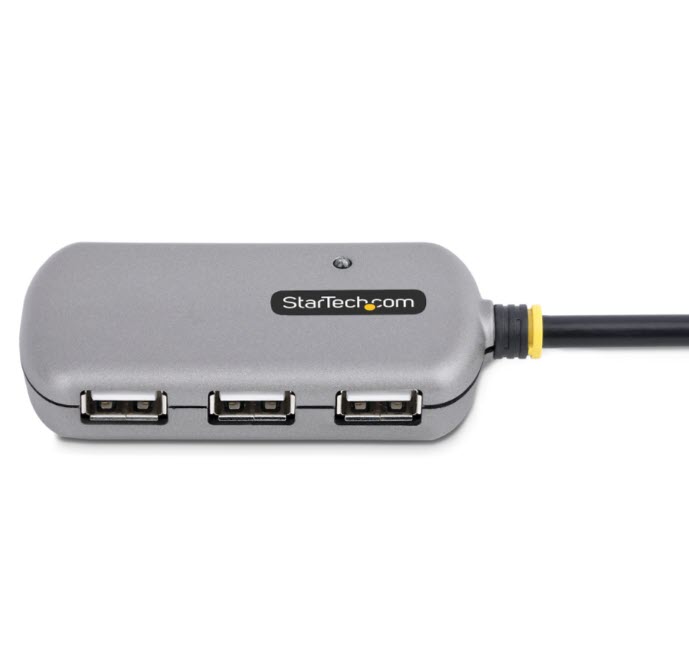

USB Extender Hub

LONG-RANGE ACTIVE USB EXTENDER: USB-A Hub with 4x USB 2.0 ports and active extension cable 78.7ft (24m); Power the USB extension cable via bus-power or the included power adapter; Add a 2nd USB extender Hub for a maximum distance of 157.4ft (48m)

STABLE SIGNAL: The booster chip located in the middle of the cable maintains signal quality and ensures optimal performance; The included power adapter (5V/2A DC) is not required in most scenarios; Power adapter allows up to 5V 0.5A per port

The backward compatibility with USB 1.1 and 1.0 ensures functionality with legacy equipment. The hub/cable features plug and play (PnP) setup on any operating system, enabling rapid deployment. The level 4 ESD protection (15kV air and 8kV contact) and the cable shielding enhance USB device safety and minimize EMI. The USB extender hub is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.

FLEXIBLE INSTALLATION: Active electronics allow the compact 4-port USB extension cable to work via bus-power when no power outlets are available; Achieve a maximum range of 157.4ft (48m) by daisy-chaining two units

COMPATIBILITY: The USB extender supports wake-on-USB to wake host systems remotely; Backward compatible with USB 1.1/1.0; Driverless and OS independent; Adds an extra layer of safety to your devices with Level 4 ESD protection (15kV air and 8kV contact)

Highlights

  • Connector(s): Connector A - 1 - USB 2.0 Type-A (4 pin, 480Mbps), Connector B - 4 - USB 2.0 Type-A (4 pin, 480Mbps)
  • Ports: 4
  • LED Indicators: 1 - Solid Green: Power Off: No power
  • Maximum Data Transfer Rate: 480 Mbps
  • Maximum Cable Length: 78.7 ft [24 m]
  • Power Source: AC Adapter Included
  • Input Voltage: 100 - 240 AC
  • Input Current: 0.4 A
  • Output Voltage: 5 DC
  • Output Current: 2.0 A
  • Center Tip Polarity: Positive
  • Plug Type: H
  • Power Consumption (In Watts): 10 W

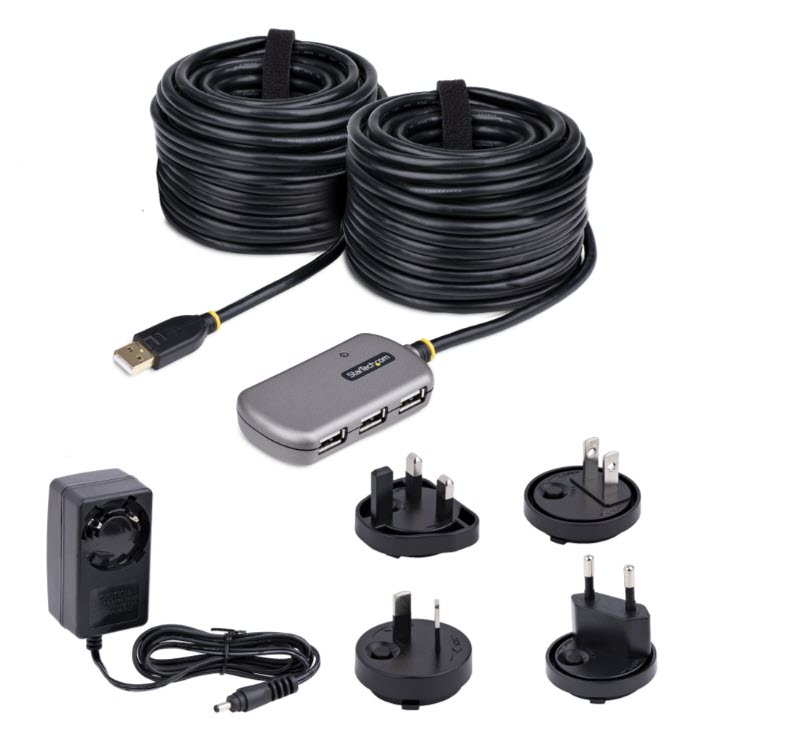

  • Included in Package: 1 - USB Active Cable with USB Hub - 1 - Power Adapter - 1 - Quick-Start Guide
  • Warranty: 2 Years
  • Note: When daisy chaining, a power adapter is recommended to be installed in the middle of the USB-A Extender Hubs for a stable connection The maximum recommend cable length for USB 2.0 peripherals is 16.4ft (5m)
