SIIG HDMI USB KVM Over Cat6 Extender - 70m
Product Type:
Cables/Adapters
Type Detail:
HDMI
Manufacturer:
SIIG
Manufacturer #:
CE-H27411-S1
Part Status:
Special Order Only
Milwaukee PC SKU:
770031
Price:
$141.99



HDMI KVM Extender, HDCP 1.4, transmits HDMI and USB 2.0 signals up to 230ft (70m) over single Cat6/6a/7 cable

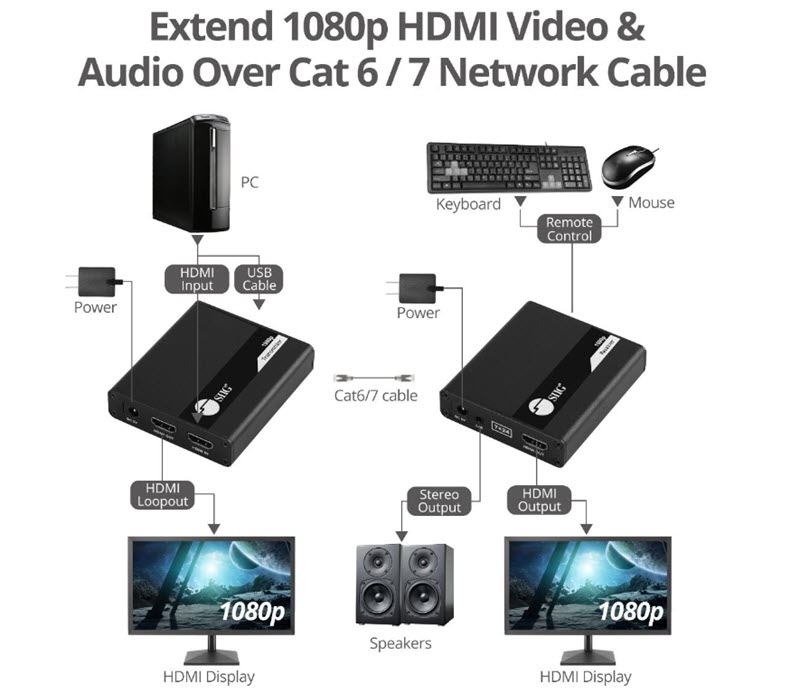

Easily extend HDMI audio/video and USB signals up to 230ft (70m) through a Cat6/7 network cable to remote 1080p display with nearly zero latency and use a one set of keyboard & mouse for remote control

This HDMI USB KVM Over Cat6 Extender designed to extends/splits HDMI signals up to 230ft (70m) through RJ45 network to a remote HDMI display for reliability transmission, long-range, low cost, and remote control capability

Offers a true 10.2Gbps video bandwidth and supports pure unaltered uncompressed 5.1-ch. surround sound from HDMI

Delivers three USB 2.0 Type-A ports with data transfer rate up to 480Mbps, two for independent HID keyboard & mouse to control your PC system from a remote location and one for Host connection such as Laptop or Desktop

Highlights

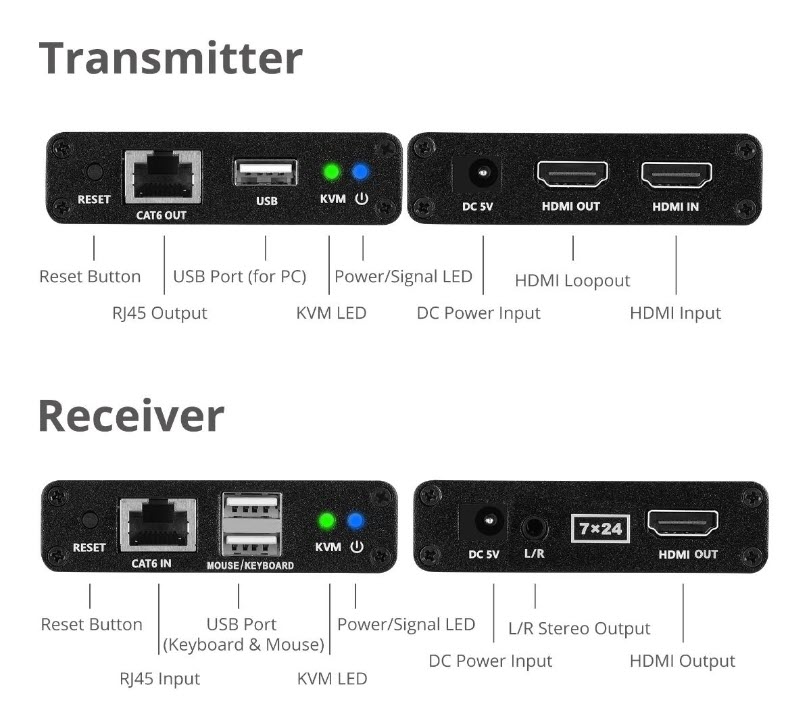

  • Transmitter unit (TX): 1 x 19-pin, HDMI, Female, input, 1 x 19-pin, HDMI, Female, loop-out, 1 x 4-pin, USB 2.0 Type-A, Female (for PC Host), 1 x 8-pin, RJ45, output, 1 x Reset button, 1 x DC Power jack, 5V/1A
  • Receiver unit (TX): 1 x 19-pin, HDMI, Female, output, 2 x 4-pin, USB 2.0 Type-A, Female (for keyboard & mouse), 1 x 8-pin, RJ45, input, 1 x 3.5mm L/R stereo audio, output, 1 x Reset button, 1 x DC Power jack, 5V/1A
  • Video: HDMI - 1x input, 1x output, 1x Loop-out, Resolution - HDCP 1.4, 1080p/1080i/720p/480i/480p @60Hz, Bandwidth - Up to 10.2Gbps
  • Audio: 5.1-ch surround sound from HDMI port, Audio format: PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1, 2-ch stereo audio from 3.5mm audio jack, Audio format: PCM 2.0
  • Power Adapter: Input - AC 100-240V/50-60Hz Output - DC 5V/2A
  • Transmitter unit (TX): Dimensions: 3.35” (L) x 0.79” (H) x 2.95" (W), Weight: 0.29 lbs, Color: Black, Housing material: Aluminum alloy
  • Receiver unit (RX): Dimensions: 3.35” (L) x 0.79” (H) x 2.95" (W), Weight: 0.29 lbs, Color: Black, Housing material: Aluminum alloy

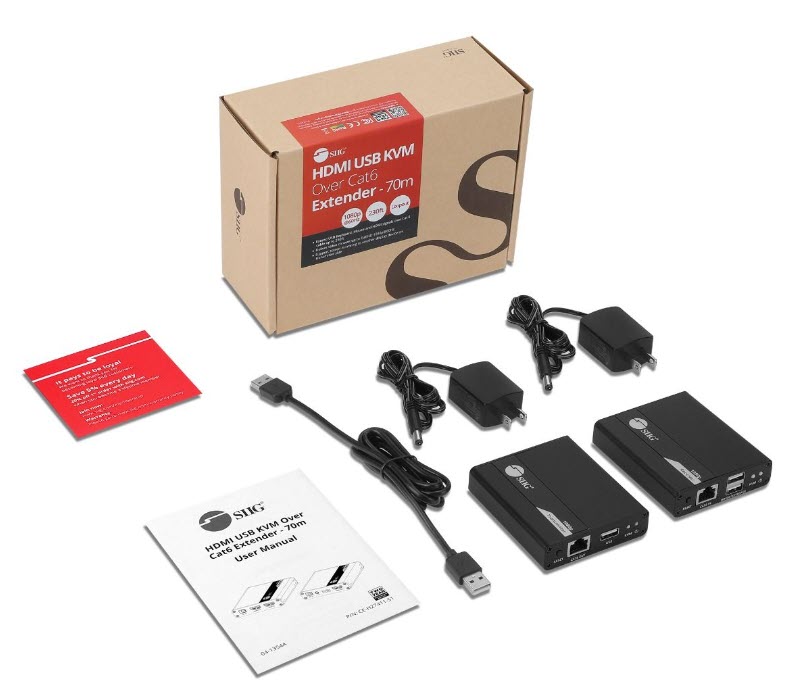

  • Package contents: 1 x HDMI USB KVM Over Cat6 Extender-70m, 1 x USB 2.0 Type-A to Type-A cable, 2 x DC power adapter, 5V/1A, 1 x User Reference Guide
  • Warranty: 2 years limited
