SIIG HDMI Video H.264 H.265 IPTV Encoder with loopout
Product Type:
Cables/Adapters
Type Detail:
HDMI
Manufacturer:
SIIG
Manufacturer #:
CE-H27511-S1
Part Status:
Special Order Only
Milwaukee PC SKU:
770029
Price:
$204.99



SIIG HDMI Video H.264 H.265

HDMI Video H.264 H.265 IPTV Encoder with loopout,1080P IPTV Encoder,Live Stream, Broadcast Support RTSP / HLS / RTMP (S) / RTP / UDP Protocols

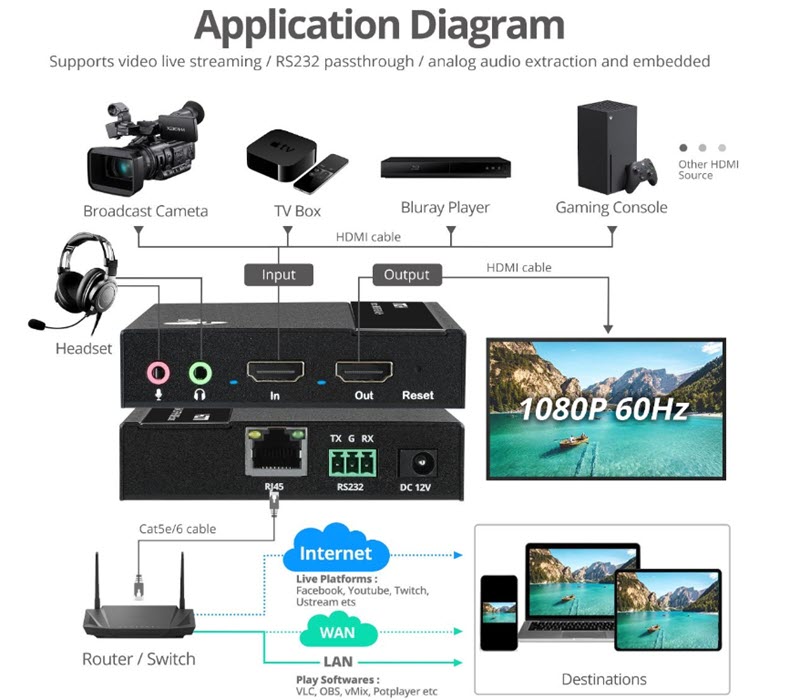

IPTV (Internet Protocol Television) uses internet technology to broadcast video content without restrictions. SIIG HDMI video H.264 & H.265 IPTV encoder is your best live streaming and broadcast solution that has high valuable, high quality to help you stream and view video content online

Supports multiple video coding of H.265 mainstream, H.264 basic, H.264 mainstream, H.264 advanced compression quality and MJPEG/JPEG basic quality

Supports RTSP (Real Time Streaming Protocol) / HLS (HTTP Live Streaming) / RTMP (Real time Messaging Protocol), RTP (Real-Time Transport Protocol) / UDP (User Datagram Protocol) and Mainstream video platforms, such as Facebook, YouTube, Twitch, Twitter, etc.

Up to 1080p (1920 x 1080) @60Hz, HDCP 1.4, YUV 4:4:4, 8-bit HDMI input and HDMI loop-out for local display and monitor the video, and allows video rotation (90°, 180°, 270°), mirroring, and flipping

Highlights

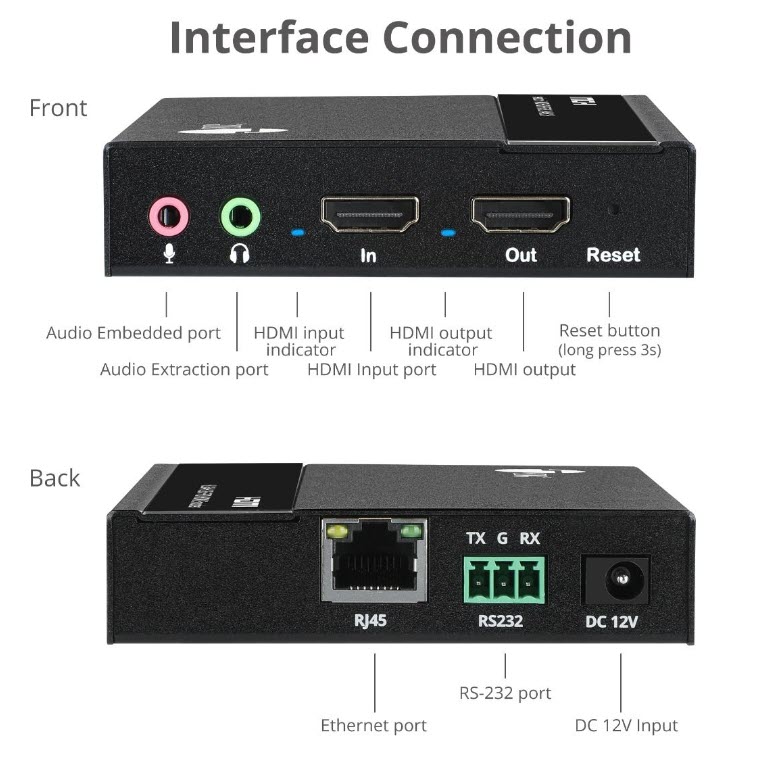

  • Input: 1 x 19-pin, HDMI, Female, 1 x 3.5mm phone jack, for microphone, 1 x Reset button, 1 x Power jack, 12V/1A
  • Output: 1 x 19-pin, HDMI, loop-out, Female, 1 x 8-pin, RJ45 network, Gigabit Ethernet, 1 x 3-pin, RS-232 terminal block, for connection, 1 x 3.5mm phone jack, for stereo audio
  • Video: HDMI - 1 x input, 1 x loop-out, Resolution - HDCP 1.4, 1080p/1080i/720p/480i/480p @60Hz, Decoding - H.265 mainstream, H.264 basic, H.264 mainstream, H.264 advanced compression quality and MJPEG/JPEG basic quality, Bandwidth - Up to 10.2Gbps

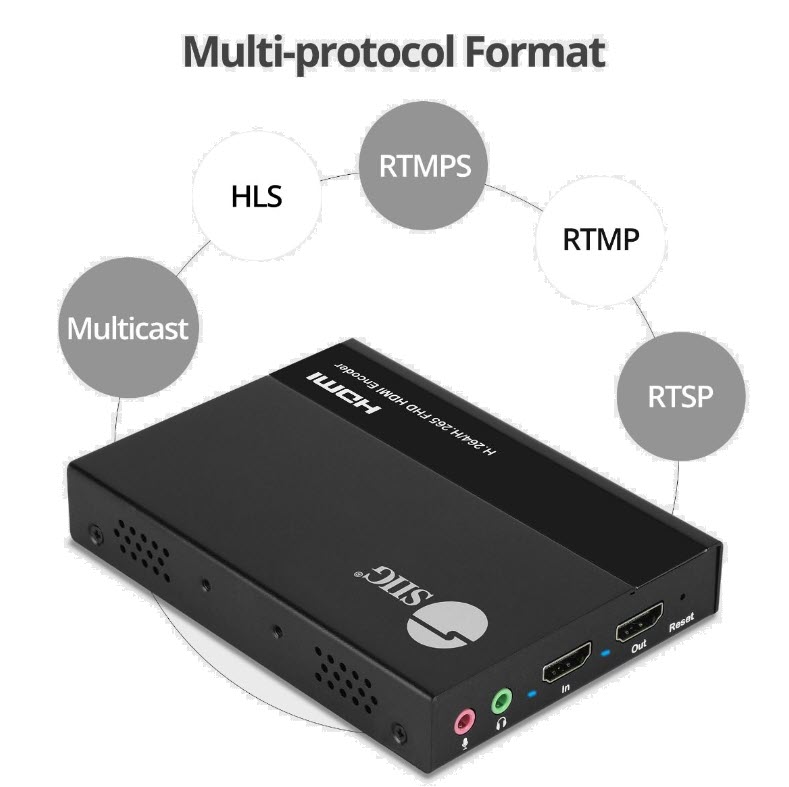

  • Transport Protocol: Protocol channel - RTSP / HLS / RTMP (S) / RTP / UDP, Default IP - 192.168.1.168
  • Audio: 5.1-ch surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1, 2-ch stereo audio from 3.5mm audio jack, audio format: PCM 2.0, Audio coding format - AAC/AAC+/AAC++/AC3/MP2/MP3, Audio bit rate - AACLC: 48-320 / AAC+: 32-128 / AAC++: 16-64, Sampling rate - 44.1/48KHz, Volume range - 0 - 256
  • RS-232 Pass-through: Supports Encoder to computer or Encoder to Encoder.

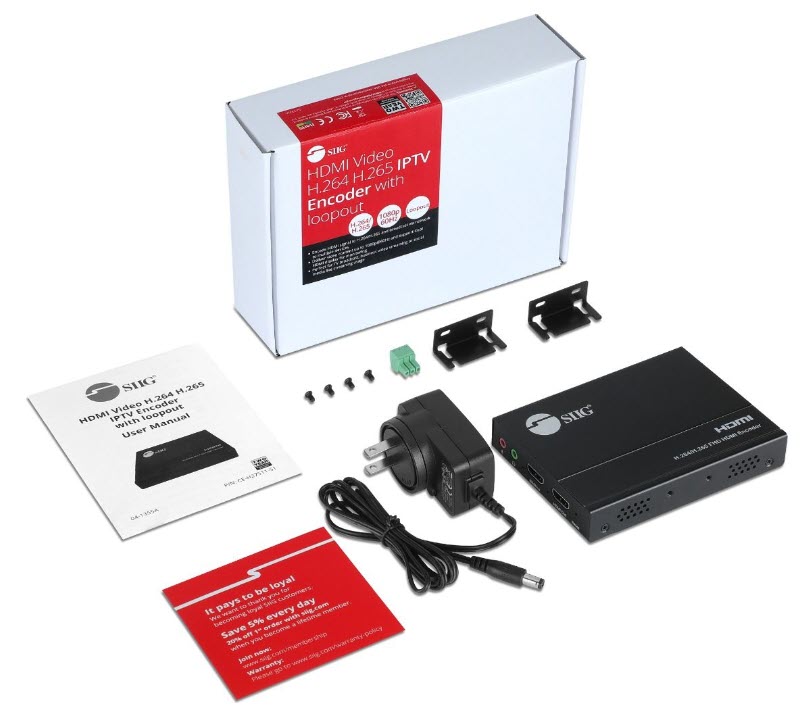

  • Package contents: 1 x HDMI Video H.264 H.265 IPTV Encoder with loopout, 1 x 3-pin Terminal block, 1 x Mounting kit, 1 x DC power adapter, 12V/1A, 1 x User Reference Guide
  • Warranty: 2 years limited
