HDMI HDbitT Over IP Extender with IR - Receiver

HDMI HDbitT Over IP Extender - RX, 1080p@60Hz, Receives HDMI signal up to 120m over single Cat6/7 cable with IR support

Extend HDMI audio and video signals up to 394ft (120m) via Cat5e/6 cable for remote display/monitor using best network transport protocol and IR remote control of source devices

HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal

This HDMI HDbitT over IP Extender with IR designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display

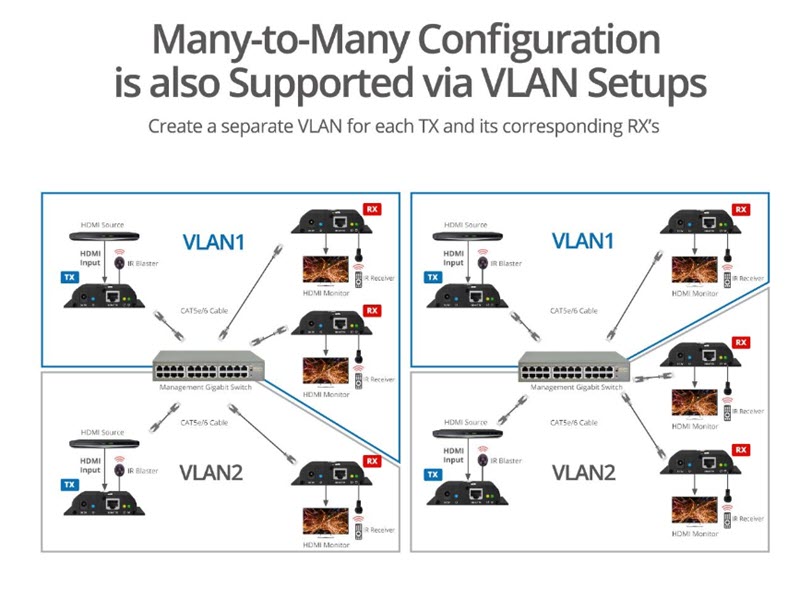

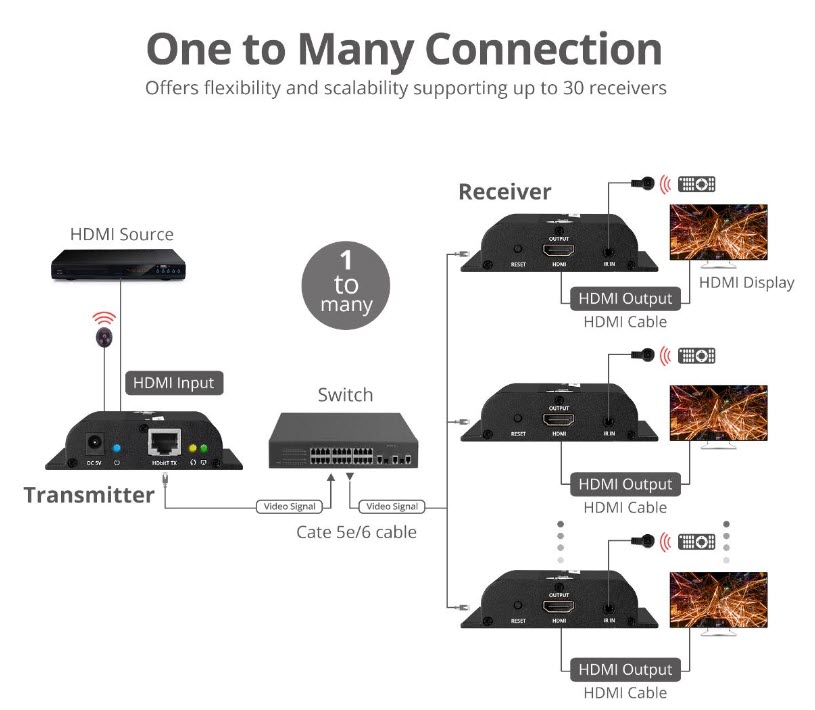

Works as a scalable TX/RX matrix over the dedicated IP network and allows up to 256 total units, and extends/splits HDMI signals to multiple displays. The additional receiver unit (part#- CE-H26U11-S1) is sold separately

Highlights

Video: HDMI 1x output, Resolution 1080p/1080i/720p/480i/480p @60Hz
Transport protocol: HDbitT protocol - audio/video digital connection transmission protocol
Audio: Stereo audio from HDMI, support 192Kbps bit rate
IR pass-through: Allows remote control of the HDMI source device and playback function at the remote display Full frequency: 20KHz to 60KHz
Power adapter: Input: 100-240V/50-60Hz, Output: DC 5V/1A

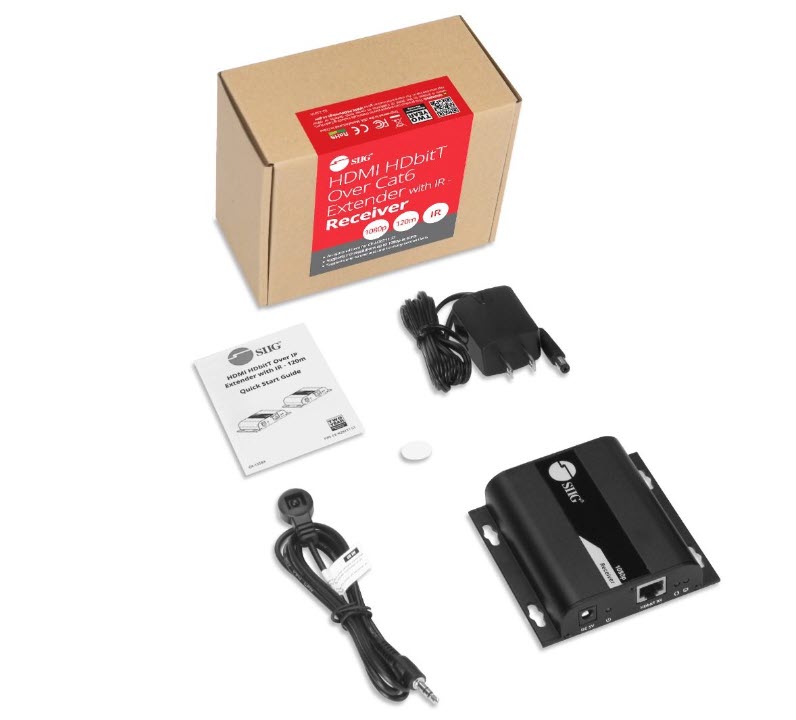

Package contents: 1 x HDMI HDbitT Over IP Extender with IR - Receiver, 1 x 3.5mm IR receiver extension cable, 1 x DC power adapter (5V/1A), 1 x User Reference Guide
Warranty: 2 years limited
