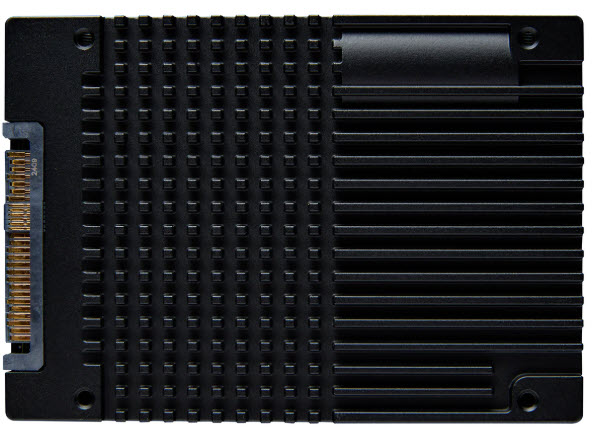

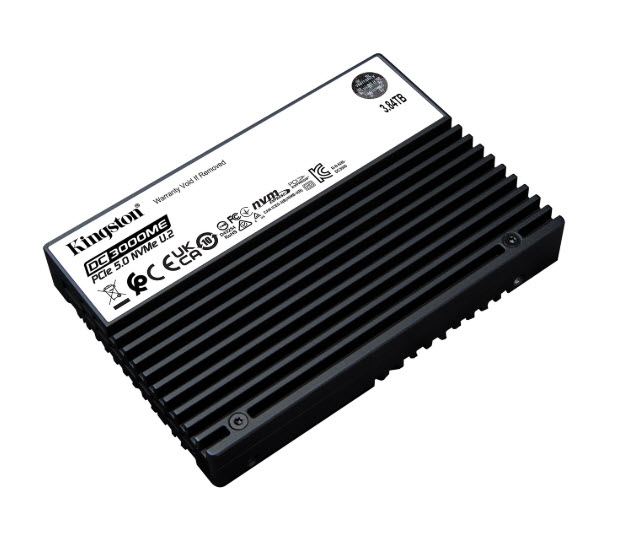

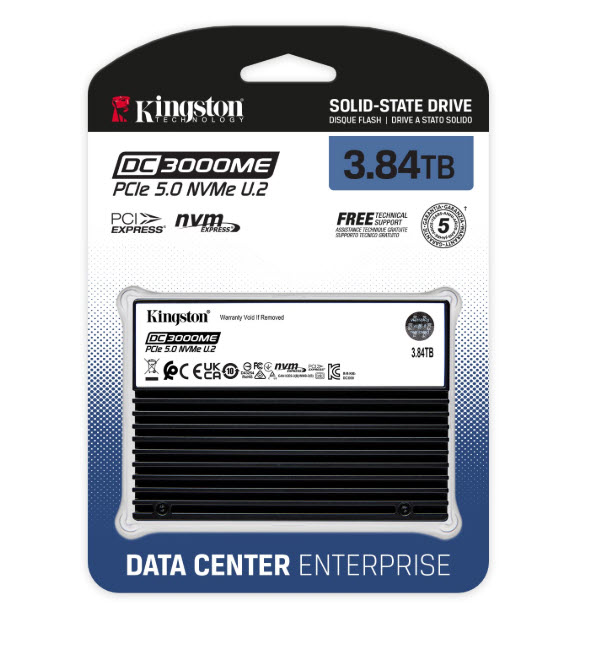

DC3000ME PCIe 5.0 NVMe U.2 SSD 3.84TB

Highlights

Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.

Enterprise PCIe 5.0 performance Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS.

Optimal storage and efficiency High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.

On-board power loss protection (PLP) Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.

AES 256-bit encryption Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.

Specifications

• Capacity - 3.84 TB
• Form factor - U.2, 2.5” x 15mm
• Interface - PCIe NVMe Gen5 x4 (backward-compatible with Gen4)
• NAND - 3D eTLC
• Sequential read/write - 14,000MB/s / 5,800MB/s
• 4k random read/write (IOPS) - 2,700,000 / 300,000
• Latency quality of service (QoS) - 99% - Read/Write: <10 µs / < 70 µs
• Static and dynamic wear leveling - Yes
• Power loss protection (Power Caps) - Yes
• Encryption - Yes - TCG Opal 2.0, AES 256-bit encryption
• Namespace management support - Yes - 128 namespaces supported
• Enterprise diagnostics - Telemetry, media wear, temperature, health, etc.
• Endurance (TBW/DWPD) - 14,016TB, 1DWPD (5 Years)
• Power consumption - Idle: 8W - Max Read: 8.2W - Max Write: 24W
• MTBF - 2 million hours
• Warranty/support - Limited 5-year warranty with free technical support
