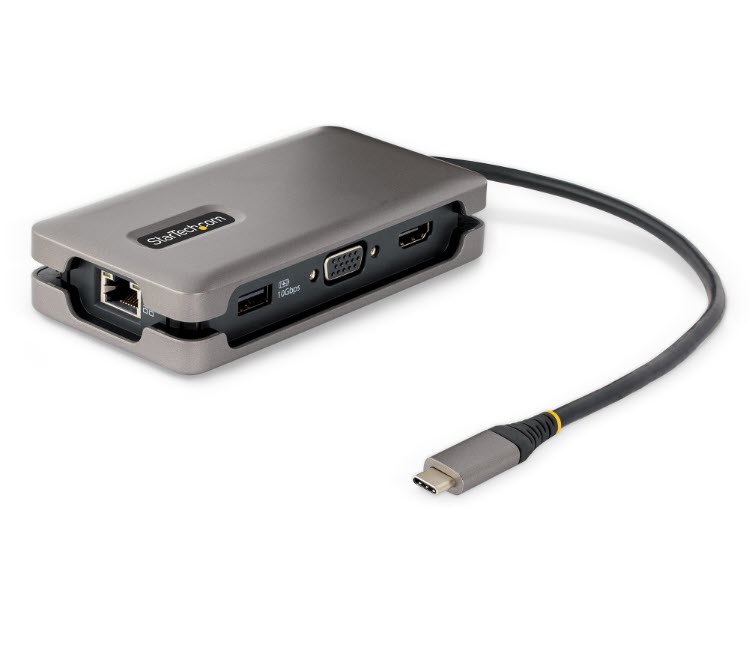

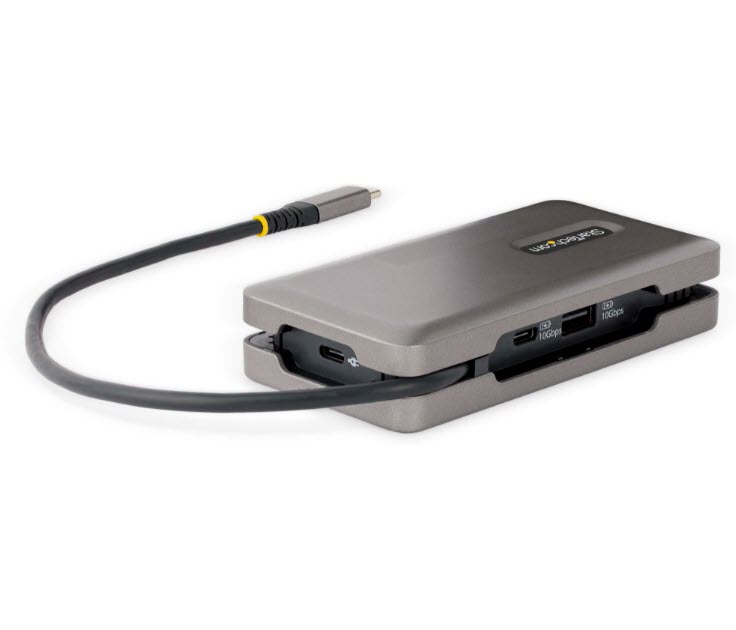

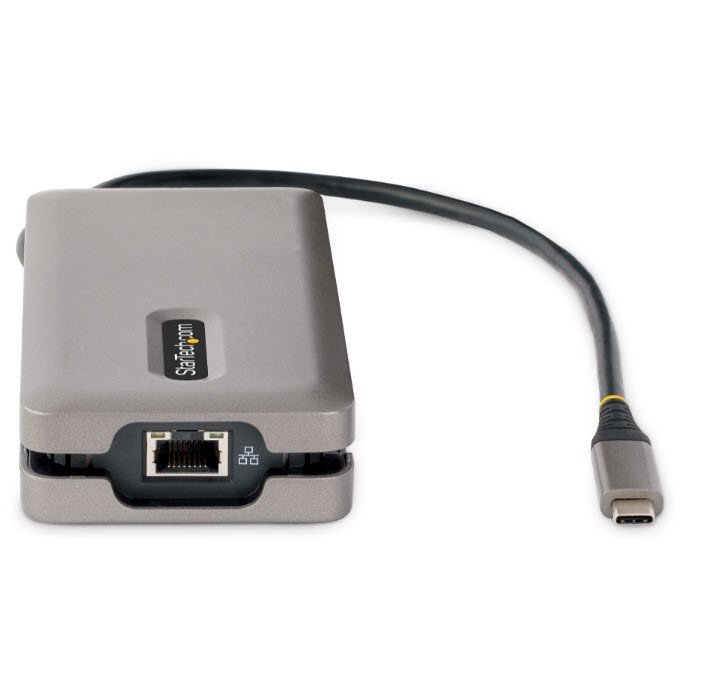

USB-C Multiport Adapter - HDMI/VGA - 4K 60Hz - 3-Port USB Hub - 100W PD - GbE - Travel Mini Docking w/ Charging - 1ft Cable
Product Type:
Cables/Adapters
Type Detail:
USB Cables
Manufacturer:
Startech.com
Manufacturer #:
DKT31CVHPD3
Part Status:
Special Order Only
Milwaukee PC SKU:
759932
Price:
$107.99

USB-C Multiport Adapter - HDMI/VGA

USB-C MINI DOCKING STATION: USB-C to HDMI 2.0b (4K 60Hz) or VGA 1080p for connectivity to a monitor or display, 100W Power Delivery Pass-Through, 3-Port USB 3.2 (10Gbps) hub (2x USB-A, 1x USB-C); Gigabit Ethernet Port (PXE boot/WoL)

CABLE MANAGEMENT: Thoughtful hideaway tethered design prevents cable clutter; The attached 1ft / 32cm long cable reduces strain on the USB-C laptop connector, while shorter cables common in other adapters create strain on the laptop USB-C connector

RELIABLE PERFORMANCE: Prevent device dropouts, video flickering, and power overdraw common in other mini docks; Up to 100W PD Pass-Through with 84W for the laptop while reserving 16W for the adapter and attached devices

UNIVERSAL COMPATIBILITY: Works with all major operating systems (Windows, ChromeOS, macOS, Linux), and all hardware platforms including Intel, Apple M1 / M2, and AMD; Works with USB-C, USB4, Thunderbolt 3 & 4

CONNECTIVITY TOOLS: Includes Network MAC Address Pass-Through, WiFi Auto Switching, USB Event Monitoring, and Windows Layout Utilities for IT Pro's and IT help-desk support teams; These tools are not included with docks from consumer brands

Highlights

  • External Ports: 1 - HDMI (19 pin) - 1 - VGA (15 pin, High Density D-Sub) - 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) - 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) - 1 - USB Type-C (24 pin) USB Power Delivery Only - 1 - RJ-45
  • Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
  • 4K Support: Yes
  • Fast-Charge Port(s): No
  • Displays Supported: 1
  • Ports: 3
  • Interface: USB 3.2 Gen 2 (10 Gbps)
  • Bus Type: USB-C
  • Industry Standards: HDMI 2.0b - DisplayPort 1.4
  • LED Indicators: 1 - Network Link Speed - Green (Network Operating at 1Gbps or 100Mbps), Off (Network Operating at 10Mbps or Lower) - 1 - Network Link Status - Solid Amber (Link Detected), Flashing Amber (Link Activity), Off (No Link Detected)
  • Maximum Data Transfer Rate: 10Gbps
  • Maximum Digital Resolutions: HDMI: 4K (4096 × 2160) 60Hz - VGA: 1080p (1920 x 1200/1080) 60Hz
  • Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
  • UASP Support: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • PXE: Yes
  • Full Duplex Support: Yes
  • General Specifications: Maximum Laptop Charging: 84W
  • Power Source: Bus Powered and Host USB-C Power
  • Power Delivery: 100W
  • Power Consumption (In Watts): 16W
  • OS Compatibility: Windows® 7, 8, 8.1, 10, 11 - macOS 10.15, 11.0, 12.0, 13.0 - Android™ - Linux® Ubuntu 18.04, 20.04 - ChromeOS™
  • Warranty: 3 Years
