USB-C Multiport Adapter - 4K 60Hz HDMI/DP - 3-Port USB Hub - 100W Power Delivery Pass-Through -
Product Type:
Cables/Adapters
Type Detail:
USB Cables
Manufacturer:
Startech.com
Manufacturer #:
DKT31CDHPD3
Part Status:
Special Order Only
Milwaukee PC SKU:
759929
Price:
$79.99



USB-C Multiport Adapter - 4K 60Hz HDMI/DP

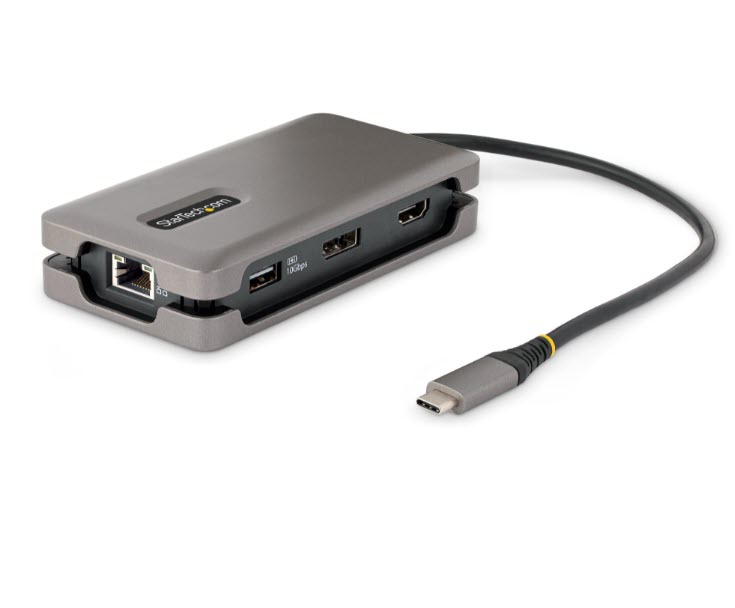

Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4™ laptop to enable single-display HDMI 2.0b or DisplayPort 1.4 video output via DP Alt Mode, supporting resolutions up to 4K 60Hz. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.

The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.

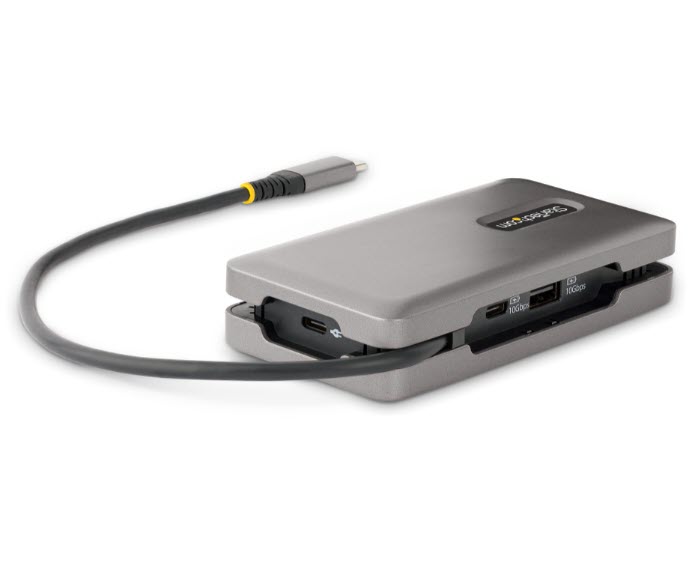

Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports. A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging. USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

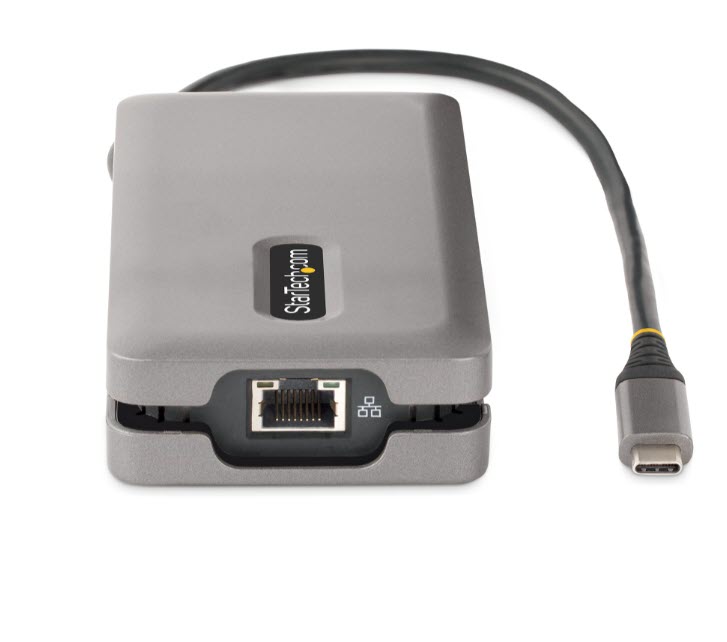

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).

Highlights

  • External Ports: 1 - HDMI (19 pin) - 1 - DisplayPort (20 pin) - 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) - 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) - 1 - USB Type-C (24 pin) USB Power Delivery Only - 1 - RJ-45
  • Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
  • 4K Support: Yes
  • Fast-Charge Port(s): No
  • Displays Supported: 1
  • Ports: 3
  • Interface: USB 3.2 Gen 2 (10 Gbps)
  • Bus Type: USB-C
  • Industry Standards: HDMI 2.0b - DisplayPort 1.4
  • LED Indicators: 1 - Network Link Speed - Green (Network Operating at 1Gbps or 100Mbps), Off (Network Operating at 10Mbps or Lower) - 1 - Network Link Status - Solid Amber (Link Detected), Flashing Amber (Link Activity), Off (No Link Detected)
  • Maximum Data Transfer Rate: 10Gbps
  • Maximum Digital Resolutions: 4K (4096 × 2160) 60Hz
  • Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
  • UASP Support: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • PXE: Yes
  • Full Duplex Support: Yes
  • General Specifications: Maximum Laptop Charging: 85W
  • Power Source: Bus Powered and Host USB-C Power Adapter
  • Power Delivery: 100W
  • Power Consumption (In Watts): 15W
  • OS Compatibility: Windows® 7, 8, 8.1, 10, 11 - macOS 10.15, 11.0, 12.0, 13.0 - Android™ - Linux® Ubuntu 18.04, 20.04 - ChromeOS™
  • Warranty: 3 Years
