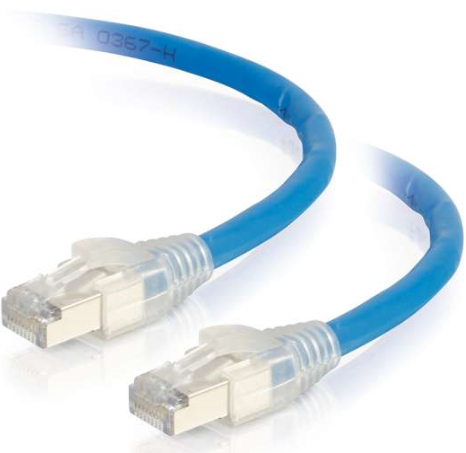

35ft HDBaseT Certified Cat6a Patch Cable, Blue
Product Type:
Cables/Adapters
Type Detail:
Network Cables
Manufacturer:
Cables To Go
Manufacturer #:
43171
Part Status:
Special Order Only
Milwaukee PC SKU:
755286
Price:
$98.99

35ft HDBaseT Certified Cat6a Cable with Discontinuous Shielding - Plenum CMP-Rated - Blue



35ft HDBaseT Certified Cat6a Patch Cable, Blue

This Snagless Discontinuous Shielded Cat6a patch cable is ideal for use with HD A/V applications from HDBaseT extenders and Power over Ethernet (PoE) applications requiring higher levels of current. The HD A/V application is perfect for conference rooms and digital signage where greater distance requirements are needed between a source and a display. Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. HDBaseT certified - These cables have been tested and validated to guarantee they consistently meet the highest industry performance and safety standards. Design features - The uniquely designed Isolation Wrap contains discontinuous sections of metallized material, held in place by a polymeric layer. These cables have a nominal 0.265" diameter that allows for higher cable density and smaller bend radius than other Cat6a cable products. These cables are also designed for Power over Ethernet (PoE) applications type 1-4 according to IEEE 802.3bt draft D1.2.


Highlights

  • Length: 35 Ft
  • Connector: - Connector Type: RJ-45 Male - Housing: Polycarbonate, - Contacts: 50µm gold plated - Hood: Molded Snagless PVC
  • Conductor (4 pair): - Conductor type: 23AWG (0.57mm) (solid annealed copper) - Insulation: CMP: FEP - Characteristic Impedance: 100O ± 15
  • Overall cable: - Separator Cross-web - Isolation Wrap: Proprietary construction - Jacket: CMP: FR, low smoke PVC - Performance Compliance: UL 444, CSA C22.2 No. 214-08, UL 1666, NFPA 262, ANSI/TIA-568-C.2, Article 800, NEC (NFPA 70), HDBaseT Class A and B - NRTL Programs: UL Verified CAT 6A, UL, c(UL) Listed CMR, UL, c(UL) Listed CMP, HDBaseT Certified - Sustainability: UL Certified EPD, HPD, Multi-Attribute Certification, USGBC® Member, RoHS-compliant/RoHS 2-compliant, REACH-compliant
  • Warranty: Lifetime
