4-Port 2.5Gbps NBASE
2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps quad-port network card with Intel I225-V chip; Multi-gigabit; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x4
IT MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management

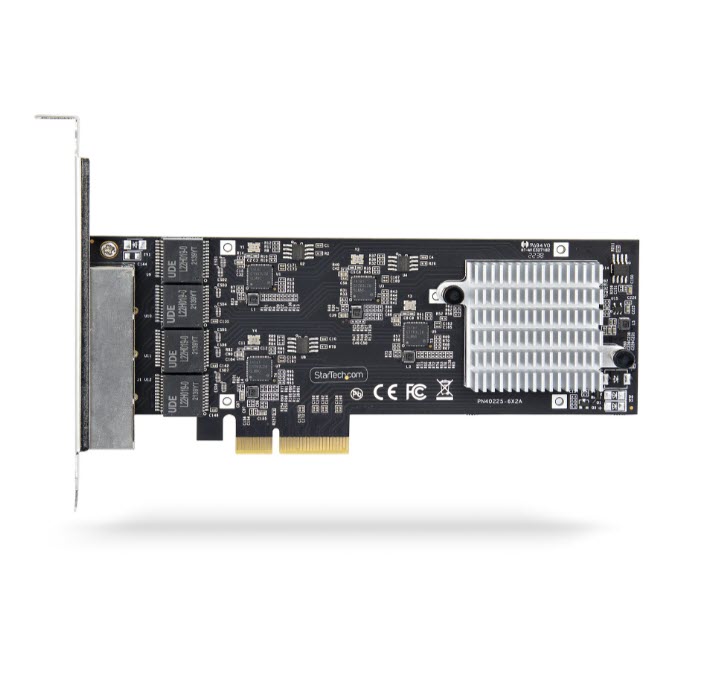

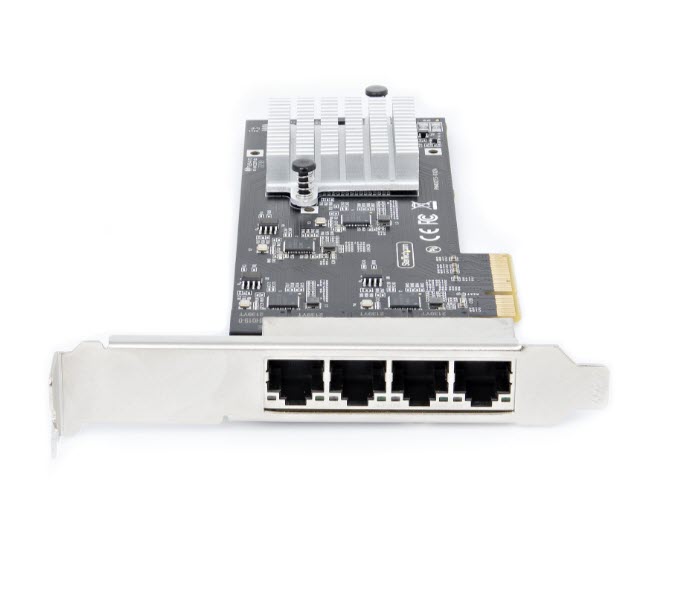

BUILD QUALITY: LAN card features: built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduced EMI for reliable communication
COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Network interface card for PC is compatible with Windows, Windows Server, WMware, and Linux; Low profile bracket included for hardware compatibility
Highlights
- Connector Type(s): 1 - PCI Express x 4 External Ports - RJ-45
- Ports: 4
- Interface: RJ45 (2.5G Ethernet)
- Bus Type: PCI Express
- Card Type: Standard Profile (LP bracket incl.)
- Port Style: Integrated on Card
- Industry Standards:
IEEE 802.3bz (2.5GBASE-T),
IEEE 802.3ab (1000BASE-T),
IEEE 802.3u (100BASE-TX),
IEEE 802.3i (10BASE-TX),
IEEE 802.1Q (VLAN),
IEEE 802.1p (QoS),
IEEE 802.1AS (AVB),
IEEE 802.1X (WoL),
IEEE P802.3az (EEE),
IEEE 1588 (PTP),
PCI Express Version 2.0
- Chipset ID: Intel - I225-V
- LED Indicators:
4 - Left LED Indicator is Link Status,
Solid Green: Active Link,
Flashing Green: Activity,
4 - Right LED Indicator is Link Speed,
Solid Green: 2.5 Gbps,
Solid Amber: 1.0 Gbps,
Off: 100 or 10 Mbps,
Flashing Green: Activity
- Maximum Data Transfer Rate: 2.5 Gbps
- Compatible Networks: 2.5G/1G/100Mbps/10Mbps
- Auto MDIX: Yes
- PXE: Yes
- Full Duplex Support: Yes
- Jumbo Frame Support: 9K max.
- Power Source: Bus Powered
- Included in Package:
1 - 4-Port PCIe 2.5 Gbps Network Card,
1 - Low Profile Bracket,
1 - Quick-Start Guide
- OS Compatibility: Windows® 10, 11, Windows Server® 2019, 2022, VMware ESXi 7.0, Linux 5.8.x and up - LTS Versions only
- Warranty: 2 Years
