2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port
Product Type:
Controller Cards
Type Detail:
USB Controllers
Manufacturer:
Startech.com
Manufacturer #:
PR22GI-NETWORK-CARD
Part Status:
Special Order Only
Milwaukee PC SKU:
641535
Price:
$182.99

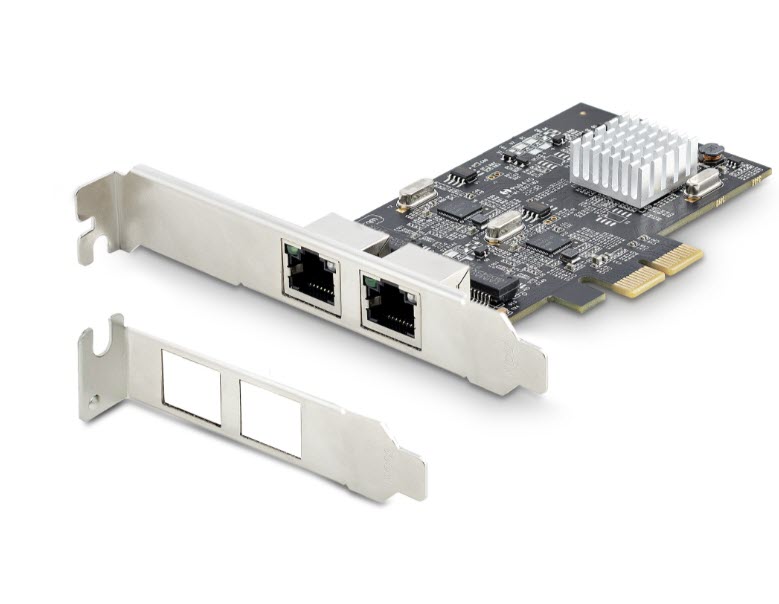

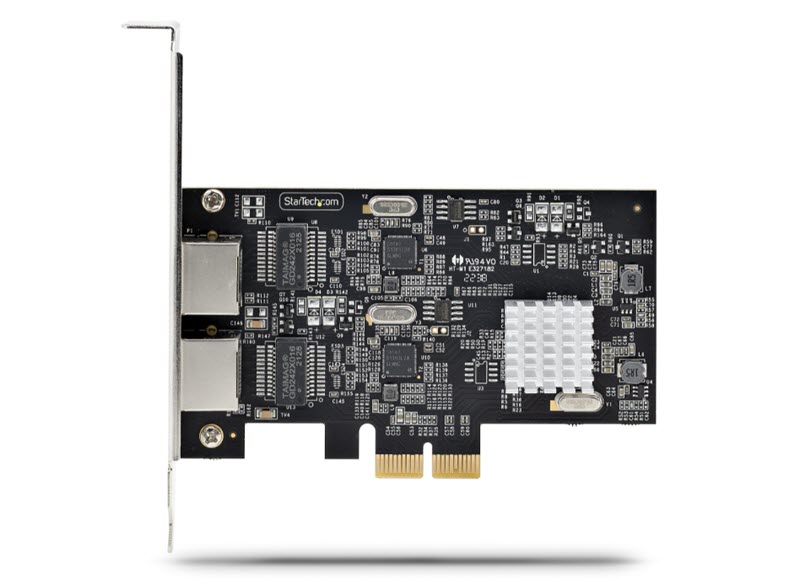

2-Port 2.5Gbps NBASE-T PCIe

2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps dual-port network card with Intel I225-V chip; Multi-gigabit; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x2.

T MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management.

BUILD QUALITY: LAN card features: built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduced EMI for reliable communication

COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Network interface card for PC is compatible with Windows, Windows Server, WMware, and Linux; Low profile bracket included for hardware compatibility

Highlights

  • Connector Type(s): 1 - PCI Express x2
  • External Ports: 2 - RJ-45
  • Ports: 2
  • Interface: RJ45 (2.5G Ethernet)
  • Bus Type: PCI Express
  • Card Type: Standard Profile (LP bracket incl.)
  • Industry Standards: IEEE 802.3bz (2.5GBASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3i (10BASE-TX), IEEE 802.1Q (VLAN), IEEE 802.1p (QoS), IEEE 802.1AS (AVB), IEEE 802.1X (WoL), IEEE P802.3az (EEE), IEEE 1588 (PTP), PCI Express Version 2.0
  • Chipset ID: Intel - I225-V
  • LED Indicators: 2 - Left LED Indicator is Link Status, Solid Green: Active Link, Flashing Green: Activity, 2 - Right LED Indicator is Link Speed, Solid Green: 2.5 Gbps, Solid Amber: 1.0 Gbps, Off: 100 or 10 Mbps Flashing Green: Activity
  • Maximum Data Transfer Rate: 2.5 Gbps
  • Compatible Networks: 2.5G/1G/100Mbps/10Mbps
  • Auto MDIX: Yes
  • PXE: Yes
  • Full Duplex Support: Yes
  • Jumbo Frame Support: 9K max.
  • Power Source: Bus Powered
  • Included in Package: 1 - 2-Port PCIe 2.5 Gbps Network Card, 1 - Low Profile Bracket, 1 - Quick-Start Guide
  • OS Compatibility: Windows® 10, 11, Windows Server® 2019, 2022, Linux 5.8.x and up - LTS Versions only
  • Warranty: 2 Years
