Lian-Li O11D EVO RGB (Black) - ATX, No PS, TG, 2xARGB Strips, up to 420mm Radiator
Product Type:
Cases
Type Detail:
Full ATX
Manufacturer:
Lian-Li
Manufacturer #:
O11DERGBX
Part Status:
Special Order Only
Milwaukee PC SKU:
57739
Price:
$219.99

Quick Tech Specs

Form Factor: ATX
Type: Full Tower
Brand: Lian-Li
P.Supply Incl.: NONE
P.Supply Location: Bottom
Expantion Slots: 7 Slots
Internal 3.5"/2.5" Bays: 2 Bays
Internal 2.5" Bays: 8 Bays
Front USB-C: 1-Port
Front USB 3.+ Ports: 2 Ports
Material: Steel / Aluminum
Window: YES / Front & Side
Warranty: 1 Year

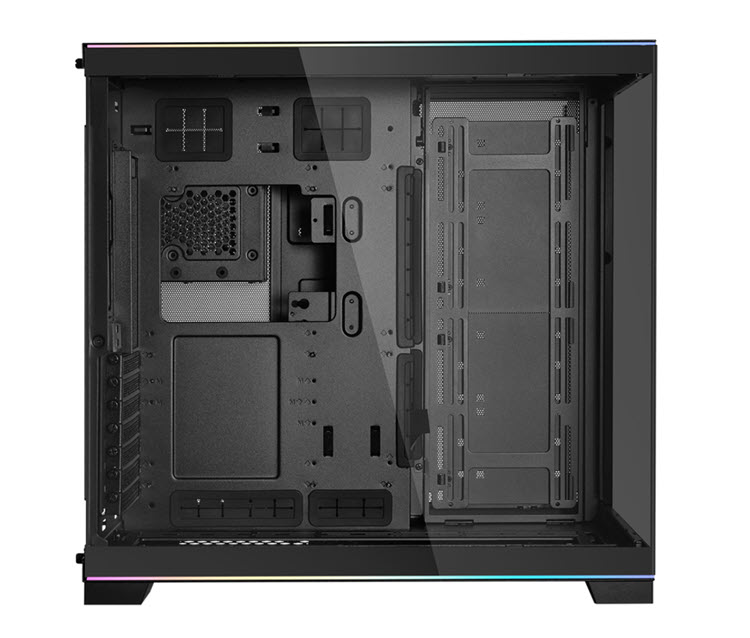

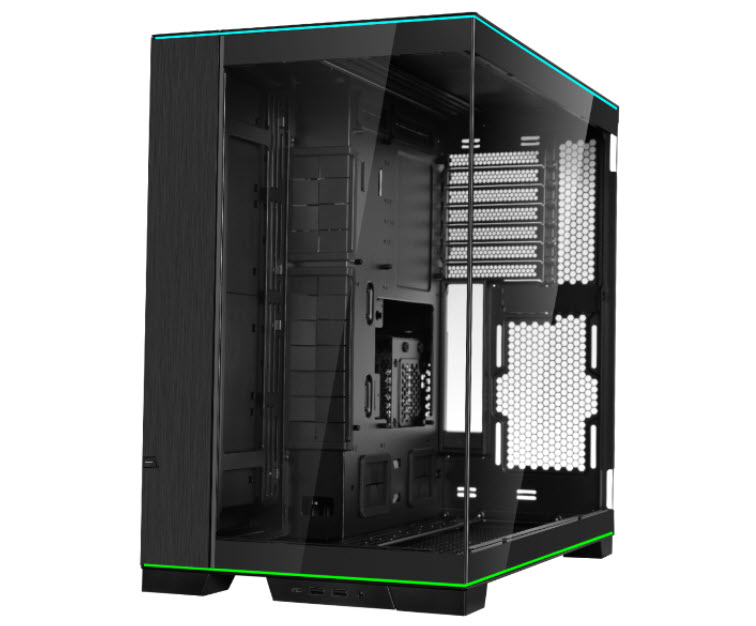

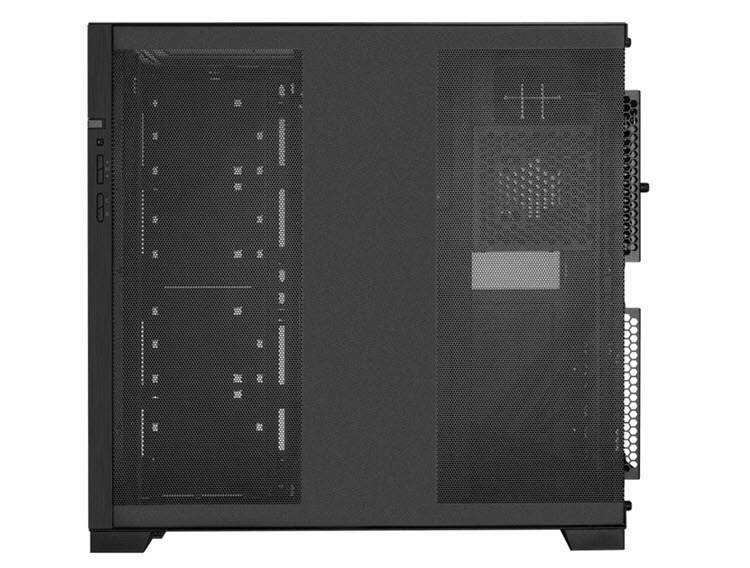

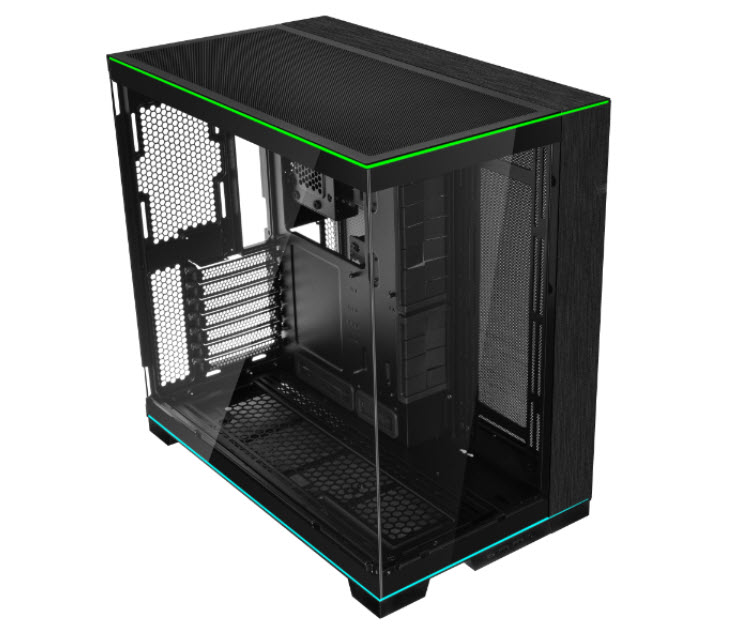

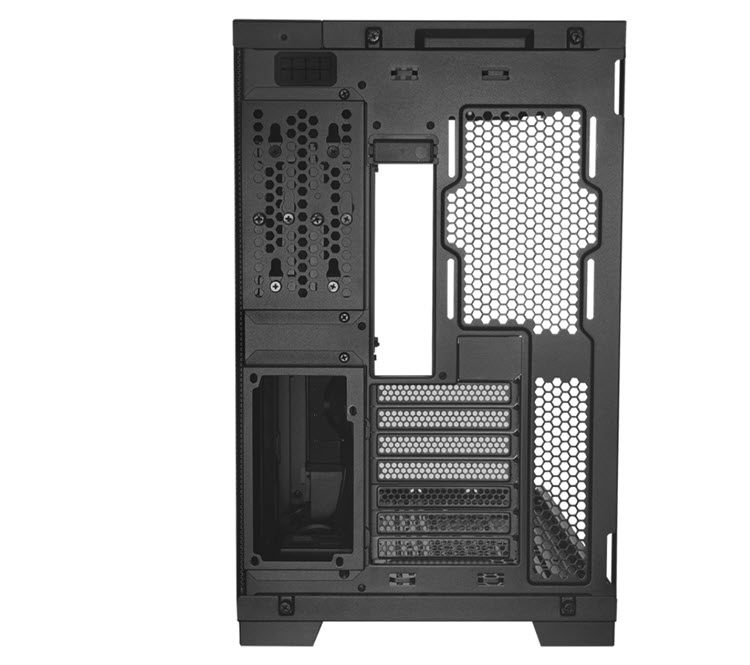

O11D EVO RGB Black

Introducing the all-new O11D EVO RGB, featuring dual ARGB light strips running through the top and bottom of the chassis,creating a stunning look. And the expanded internal space provides greater component compatibility, bringing an exceptional PC-building experience.

Derived from the O11D EVO, the O11D EVO RGB can be displayed in two modes with just a few simple steps, allowing for a left or right view. It also comes in two color options: Black and White.

The O11D EVO RGB features a 1.5mm thick L-shaped ARGB strip at both the top and bottom of the chassis that can switch between 14 different lighting effects, adjust brightness and color, and sync with the motherboard.

Next/Previous Light Mode Button: Press 3 seconds to sync MB, press 3 seconds again to cancel. Go back and forth between lighting effects without needing to circle around the loop.

Light Color Button: Switch between 11 colors, press 3 seconds to activate Pure Color Mode,press 3 seconds again to cancel.

Light Brightness Button: Switch between 5 brightness levels-100%, 75%, 50%, 25%,0%.

The O11D EVO RGB’s front pillar can now be easily removed, providing a seamless view for showcasing hardware without affecting the case’s structure.

Compared to the O11D EVO, the O11D EVO RGB is slightly larger, which provides higher component compatibility: it supports a 420mm radiator at the top (requires a separate bracket, 360mm radiator at the side/bottom, and 3x140mm fans at all three sides.

The distance between the left-sided and right-sided installation positions reaches 20mm, so users who use EATX motherboards can choose the right-sided installation to avoid the fans from being blocked by the motherboard while gaining more cable management space. Additionally, the O11D EVO RGB features a newly designed vertical corner grommet, making cable management friendlier even when using a large motherboard. O11D EVO RGB comes with the new anti-sag bracket GB-003 with easy height adjustment to support heavy GPUs.

O11D EVO RGB features an improved cable management design, featuring large VELCRO straps near the PSU chamber, dual-layer cable clips that can hold both the bulky and thinner cables, and 15mm of extended space from the rear of the PSU chamber for more cable management room. The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps with the management of rear I/O cables.

Highlights

  • MODEL: O11DERGBX
  • CASE TYPE: Tower Chassis
  • DIMENSIONS: (D)478mm × (W)290mm ×(H)471mm
  • MATERIAL: 4.0mm tempered glass?Aluminum ?Steel
  • MOTHERBOARD SUPPORT: E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX
  • EXPANSION SLOT: 7
  • STORAGE: Side Fan Bracket:2 × 3.5" HDD or 4 × 2.5" SSD, Behind MB Tray: 2 × 2.5" SSD, Hard Drive Cage:2 × 3.5" HDD or 2.5" SSD
  • I/O PORTS: USB 3.0 × 2, USB 3.1 TYPE-C × 1, Audio × 1, Color Button × 1, Mode Button × 1, Brightness Button × 1, Reset Button × 1, Power Button × 1
  • RADIATOR SUPPORT: Top: 240mm × 1 or 360mm × 1 or 420mm × 1, Side: 240mm × 1 or 280mm × 1 or 360mm × 1, Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1
  • FAN SUPPORT: Top: 120mm × 3 or 140mm × 3, Side: 120mm × 3 or 140mm × 3, Bottom: 120mm × 3 or 140mm × 3, Rear: 120mm × 1
  • GPU LENGTH CLEARANCE: 455.7mm(Max)
  • CPU COOLER HEIGHT CLEARANCE: 167mm(MAX)
  • DUST FILTER: 1 x Bottom
  • Warranty: 1 Year
