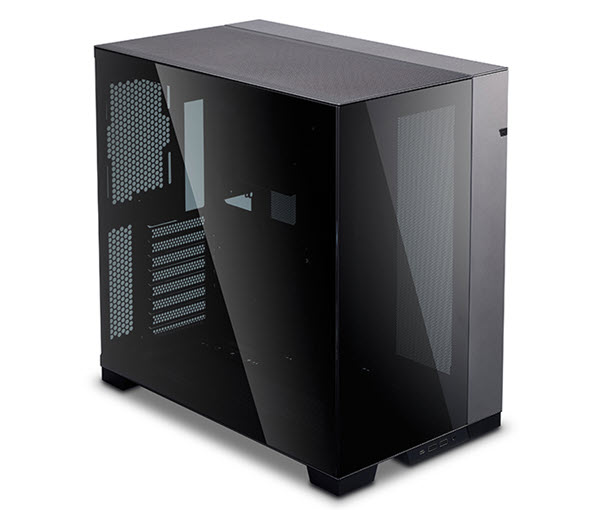

O11 Dynamic EVO
The O11 Dynamic series classic tinted glass and brushed aluminum panel are once again combined in proper proportion.
With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.
Following the style of the O11 Dynamic series, the aluminum panels feature an updated fine mesh which provides an optimal ratio of airflow and dust filtering.
Featuring a modular design, the O11D EVO offers many configuration potentials when making use of optional kits, both for air cooling and water cooling.
The O11D EVO features sufficient space to accommodate 3x 360mm radiators, and up to 10 fans.
Multiple easily accessible storage mounting points are provided to support up to 9x SSDs or 6x HDDs + 3x SSDs.
The O11D EVO keeps the front panel as clean as possible with a multi-directional power button that can be pressed from both the front and the side of the chassis.
The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button. An 8th mode is available to enable motherboard software synchronization or L-Connect control.
Highlights
- Form Factor: Full Tower
- MATERIAL: 4mm Aluminum, 4mm Tempered Glass, 1mm Steel Structure
- MOTHERBOARD SUPPORT: E-ATX (width: under 280mm)/ATX /M-ATX/ITX
- EXPANSION SLOTS: 8
- DRIVE SUPPORT: Bottom:2.5” SSD × 4 or 3.5” HDD × 2,
Side:2.5” SSD × 4 or 3.5” HDD × 2,
Drive Cage:2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1,
Cable Management Bar:2.5” SSD × 2, *Only 9 sets of 2.5” SSD mounting pads are provided
- I/O PORTS: 2 × USB 3.0,
1 × USB 3.1 TYPE-C,
1 × HD AUDIO/ MIC,
LED Color and Mode button,
Reset Button,
Power Button
- PSU SUPPORT: 220mm
,
- FAN SUPPORT: Top: 120mm × 3 or 140mm × 2
Side: 120mm × 3 or 140mm × 2,
Bottom: 120mm × 3 or 140mm × 2,
Rear: 120mm × 1,
On Drive Cage: 60mm × 1
- RADIATOR SUPPORT: Top: 360mm × 1 or 280mm × 1,
*Total max thickness: 87.5mm,
Side: 360mm × 1 or 280mm × 1,
*Inner scenario total max thickness: 83mm(120mm fan on top and bottom),
63mm(140mm fan on top and bottom), *Outer scenario total max. thickness:
120mm(120mm fan on top and bottom),
100mm(140mm fan on top and bottom),
Bottom: 360mm × 1,
*Total max thickness: 87.5mm
- GPU LENGTH CLEARANCE: 426 mm
- CPU HEIGHT CLEARANCE: 167 mm
- DUST FILTER: Bottom x 1
- Warranty: 1 Year
