H5 Flow

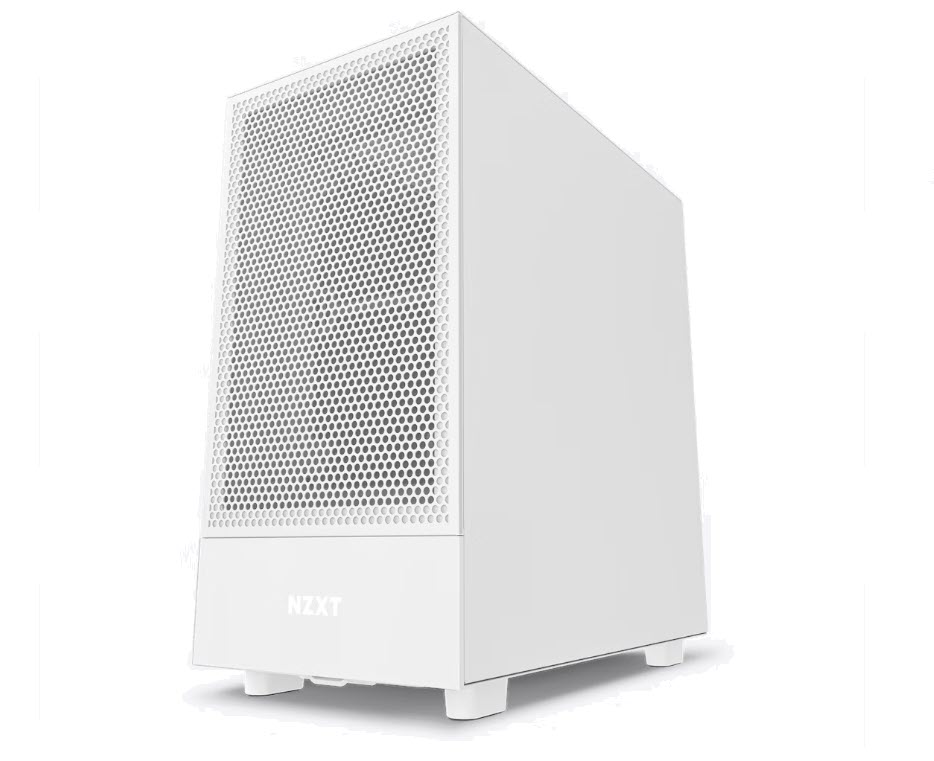

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
Highlights
- Enclosure Type: Mid-Tower
- Case Material: SGCC Steel, Ultra-clear Tempered Glass
- Motherboard Support: Mini-ITX, Micro-ATX, ATX
- EXPANSION SLOTS: 7
- DRIVE BAYS: 2.5":1+1, 3.5":1
- FRONT I/O PORTS: USB 3.2 Gen 1 Type-A: x 1, USB 3.2 Gen 2 Type-C: x 1, Headset Audio Jack: x 1
- FAN SUPPORT: Front:2 x 120mm / 2 x 140mm, Top:2 x 120mm,
Rear:1 x F Series Quiet 120mm (Case Version) included, Bottom:1 x F Series Quiet 120mm (Case Version) included
- FAN SPECS: Model:F120Q (Case Version), Speed:1200 ± 240RPM, Airflow:62.18 CFM, Static:1.05 mm - H2O,
Noise:25.1 dBA, Fan Connector:3-pin
- RADIATOR SUPPORT: Front:Up to 280mm, Top:Up to 240mm, Rear:Up to 120mm
- Max CPU Cooler Clearance: Up to 165mm
- Max GPU Clearance: Up to 365mm
- Front Radiator Clearance: 45mm
- Cable Management: Up to 23mm
- Warranty: 2 Years
