NZXT H510 Flow White/Black - Mid ATX, No PS, TG Side, Mesh Front

Product Type:

Cases

Type Detail:

Mid ATX

Manufacturer:

NZXT

Manufacturer #:

CA-H52FW-01

Part Status:

Special Order Only

Milwaukee PC SKU:

57626

Price:

$119.99

Quick Tech Specs

Form Factor:	ATX
Type:	Mid Tower
Brand:	NZXT
P.Supply Location:	Bottom
P.Supply Wattage:	NONE
P.Supply Incl.:	NONE
Expantion Slots:	7 Slots
External 5.25" Bays:	NONE
External 3.5" Bays:	NONE
External 2.5" Bays:	NONE
Internal 3.5" Bays:	3 Bays
Internal 2.5" Bays:	3 Bays
Internal 3.5"/2.5" Bays:	NONE
Front USB-C:	1-Port
Front USB 2.0 Ports:	NONE
Front USB 3.+ Ports:	1 Port
Material:	Steel
Window:	YES
180mm Fans:	None
80mm Fans:	NONE
90/92mm Fans:	NONE
120mm Fans:	2 Fans
140mm Fans:	NONE
200+mm Fans:	NONE
Warranty:	2 Years

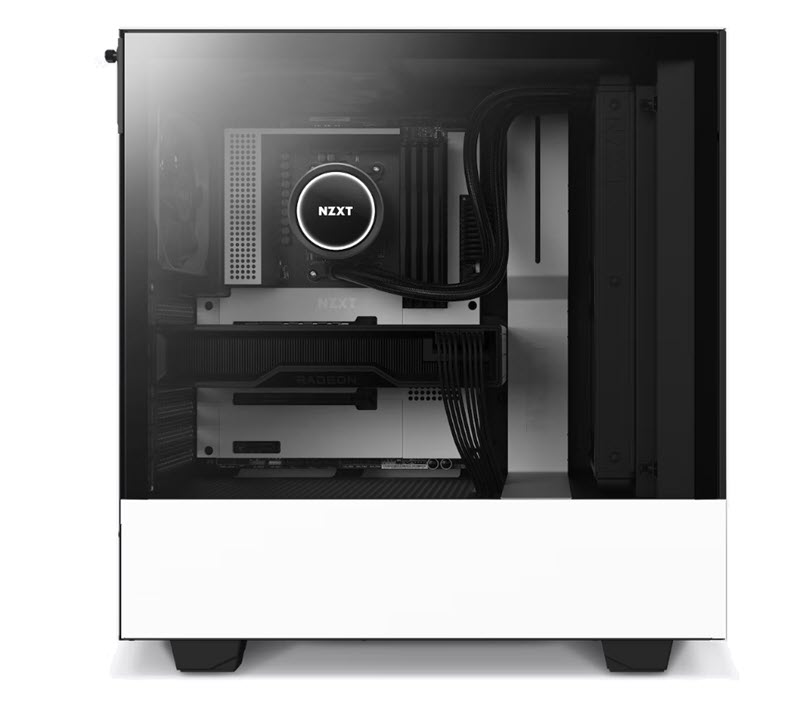

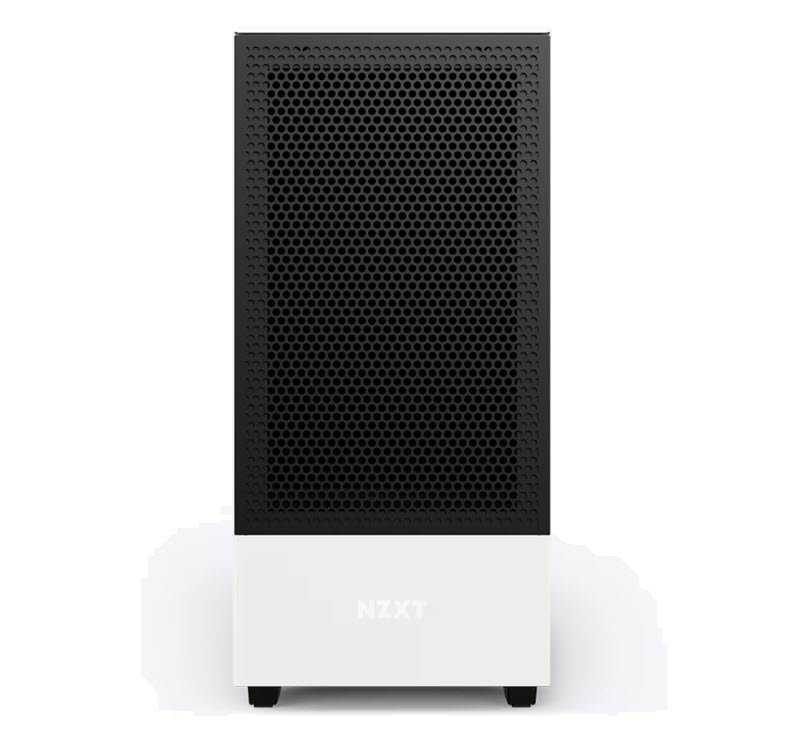

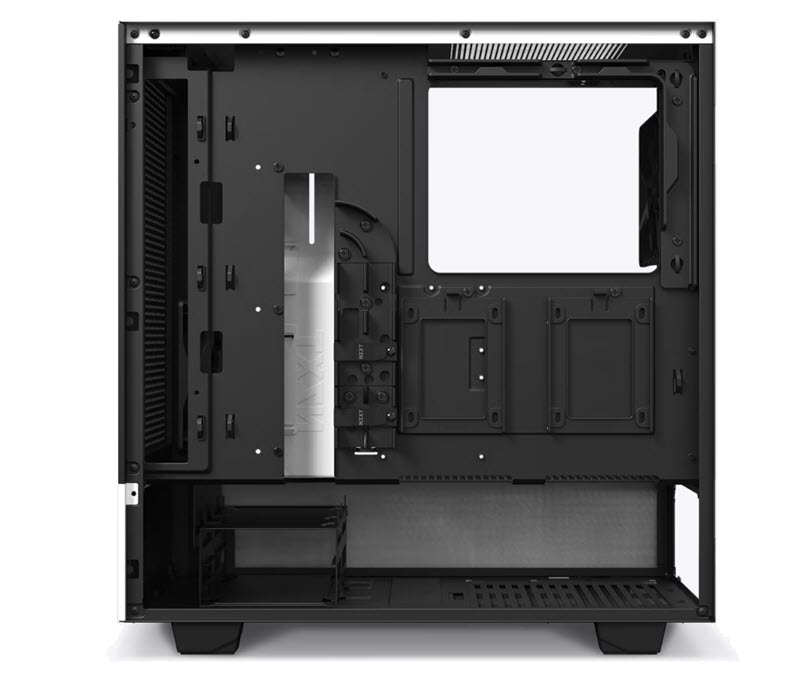

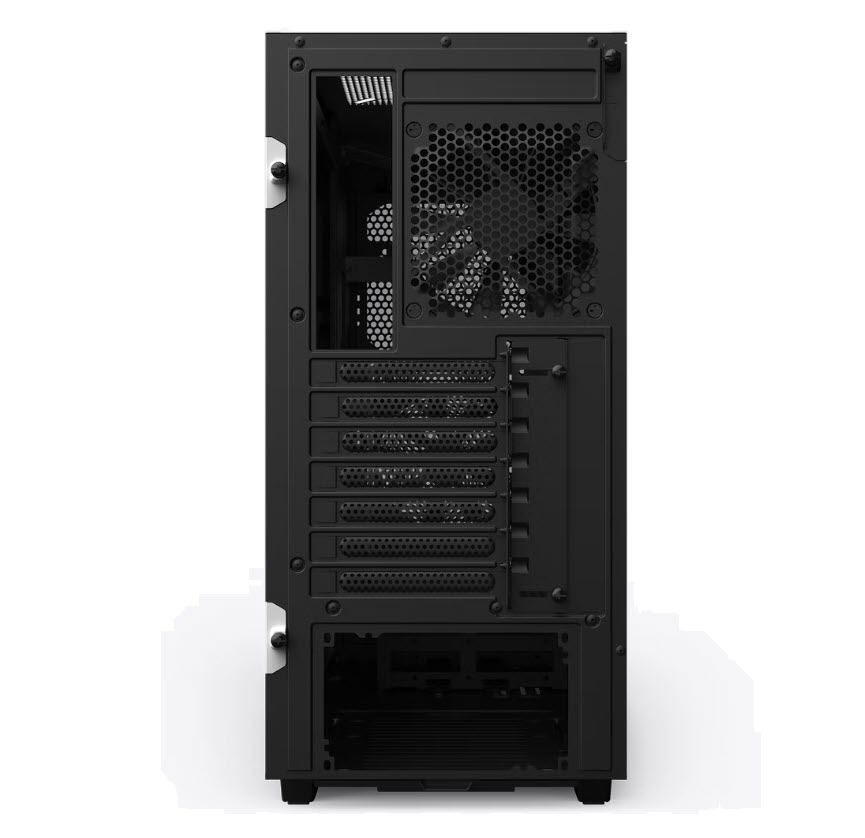

NZXT H510 Flow White/Black

This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The H510 is easy to build in and offers flexibility for a variety of ATX parts.

Highlights

Enclosure Type: Compact Mid-Tower
Case Material: SGCC Steel, Clear Tempered Glass
Motherboard Support: Mini-ITX, MicroATX, ATX
EXPANSION SLOTS: 7
FRONT I/O PORTS: USB 3.2 Gen 1 Type-A x 1, USB 3.2 Gen 2 Type-C x 1, Headset Audio Jack x 1
DRIVE BAYS: 2.5" x 2 + 1, 3.5" x 2 + 1
FAN SPECS: Model Aer F 120mm, Speed 1,200 ± 200RPM, Airflow 50.42 CFM, Noise 28 dBA, Bearing Rifle Bearing, Fan Connector 3-pin
INCLUDED FANS: Front 1 x Aer F 120mm, Rear 1 x Aer F 120mm
FAN SUPPORT: Front 2 x 120mm / 2 x 140mm, Top 1 x 120mm / 1 x 140mm, Rear 1 x 120mm, Filters:All air intake
RADIATOR SUPPORT: Front 280mm, Rear 120mm
Max CPU Cooler Clearance: 165 mm
Max GPU Clearance: 360 mm
Front Fan & Radiator Clearance: 60 mm
Cable Management: 19 - 23 mm
Warranty: 2 years
