HYTE Y60 Snow White - Mid ATX, No PS, W/PCIe 4.0 Cable Riser for Video Card
Product Type:
Cases
Type Detail:
Mid ATX
Manufacturer:
UnListed
Manufacturer #:
CS-HYTE-Y60-WW
Part Status:
Special Order Only
Milwaukee PC SKU:
57617
Price:
$229.99

Quick Tech Specs

Form Factor: ATX
Type: Mid Tower
Brand: HYTE
P.Supply Incl.: NONE
P.Supply Wattage: NONE
P.Supply Location: Bottom
Expantion Slots: 3 Slots / + 6 half-height
External 2.5" Bays: NONE
External 5.25" Bays: NONE
External 3.5" Bays: NONE
Internal 3.5" Bays: NONE
Internal 2.5" Bays: 4 Bays / or 2 x 3.5"
Internal 3.5"/2.5" Bays: NONE
Front USB-C: 1-Port
Front USB 2.0 Ports: NONE
Front USB 3.+ Ports: 2 Ports
Material: Steel
Window: YES / 3 sides
180mm Fans: None
80mm Fans: NONE
90/92mm Fans: NONE
120mm Fans: 3 Fans
140mm Fans: NONE
200+mm Fans: NONE

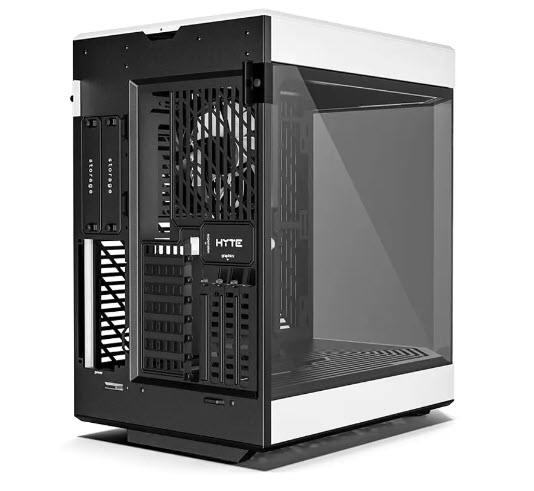

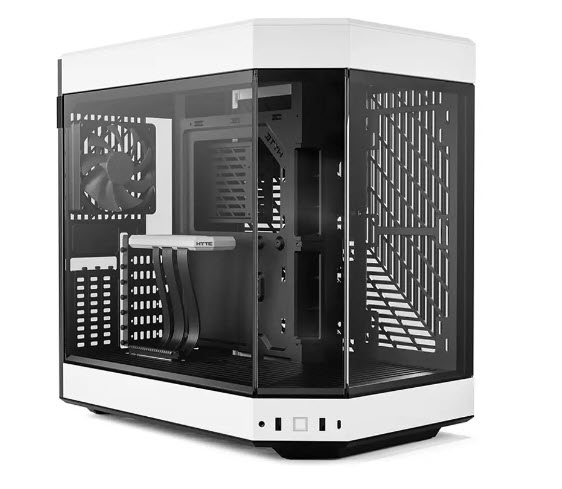

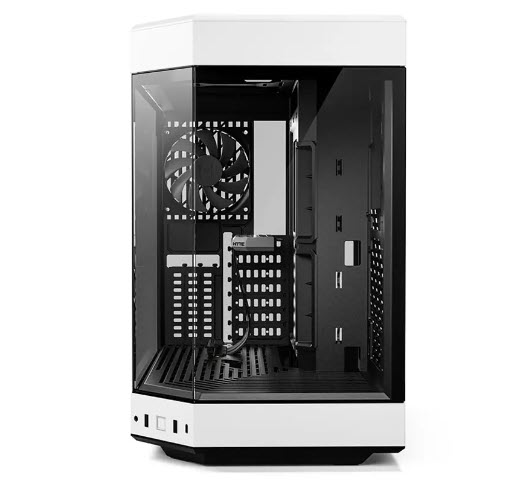

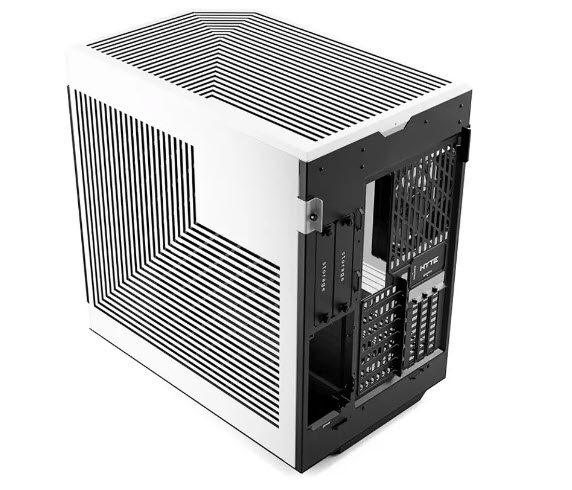

HYTE Y60 Snow White

No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.

A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.

Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.

Highlights

  • Type: Dual Chamber Mid-Tower ATX Case
  • Case Materials: Tempered Glass, Steel, ABS
  • Motherboard Support: EATX, ATX, mATX, ITX
  • Expansion Slots: 3 + 6 half-height
  • Storage: 2 x 3.5" HDD or 4 x 2.5" SSD
  • I/O: 2 x USB 3.0 - 1 x USB 3.2 Gen 2 Type-C - Audio/Mic Jack
  • Dust Filters: Bottom, Side, Top
  • PCI Express Riser: 4.0 x 16 (included)
  • CPU Cooler Height: 160mm
  • Power Supply: ATX up to 235mm in length
  • Video Card Max Dimensions: 375mm length, 75mm thick (60mm or less recommended for best cooling)
  • Fan Support (Side): 2 x 120/140mm
  • Fan Support (Top): 3 x 120mm
  • Fan Support (Rear): 1 x 120mm (1 x 120mm, 1300 RPM included)
  • Fan Support (Bottom): 2 x 120mm/140mm (2 x 120mm, 1300 RPM included)
  • Radiator Support (Side): 120, 140, 240, 280mm up to 150mm thick
  • Radiator Support (Top): 120, 240, 360mm up to 30mm thick
  • Radiator Support (Rear): 120mm
  • * When using an air cooler rather than liquid cooler, HYTE recommends the installation of 2 additional intake fans (not included) on the side mount of the Y60 for optimal airflow.
