HYTE Y40 Red - Mid ATX, No PS, TG, w/PCIe 4.0 Riser/cable

Product Type:

Cases

Type Detail:

Mid ATX

Manufacturer:

UnListed

Manufacturer #:

CS-HYTE-Y40-BR

Part Status:

Special Order Only

Milwaukee PC SKU:

57611

Price:

$199.99

Quick Tech Specs

Form Factor:	ATX
Type:	Mid Tower
Brand:	HYTE
P.Supply Incl.:	NONE
P.Supply Wattage:	NONE
P.Supply Location:	Bottom
Expantion Slots:	4 Slots / + 6 half-height
External 2.5" Bays:	NONE
External 5.25" Bays:	NONE
External 3.5" Bays:	NONE
Internal 3.5" Bays:	NONE
Internal 2.5" Bays:	2 Bays
Internal 3.5"/2.5" Bays:	NONE
Front USB-C:	1-Port
Front USB 2.0 Ports:	2 Ports
Front USB 3.+ Ports:	NONE
Material:	Steel
Window:	YES
180mm Fans:	None
80mm Fans:	NONE
90/92mm Fans:	NONE
120mm Fans:	2 Fans
140mm Fans:	NONE
200+mm Fans:	NONE

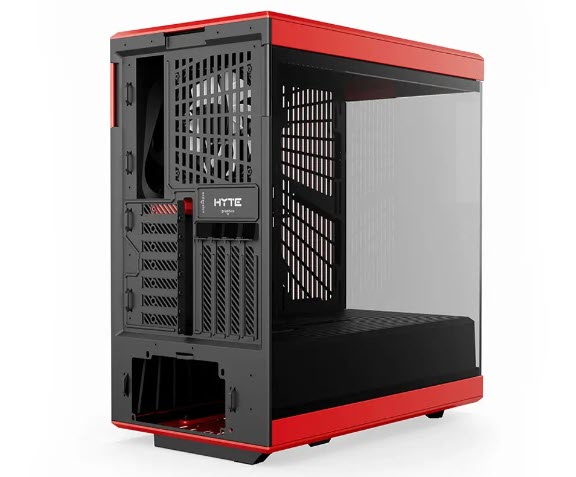

HYTE Y40 Red

The all-new Y40 is designed to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.

Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.

Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.

A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.

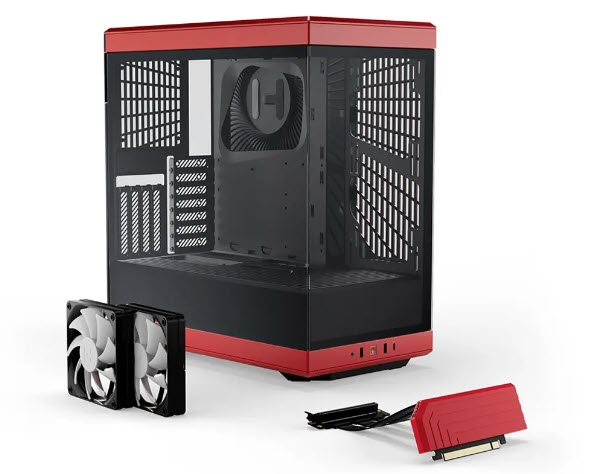

Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.

Highlights

Type: ATX Mid Tower
Motherboard Support: ITX, mATX, ATX
Expansion Slots: 4 + 6 half-height
Storage: 1 x 3.5" HDD or 2 x 2.5" SSD
I/O: 2x USB 2.0, 1x USB-Type-C, Audio/Mic Jack
Power Supply: ATX up to 224mm in length
Video Card Max Dimensions: 422mm length, 94mm height (80mm height or less recommended for best cooling)
Fan Support (Side): 2x 120mm/140mm
Fan Support (Top): Top: 3x 120mm
Fan Support (Rear): 1x 120mm (1x 120mm, 1300 rpm included)
Fan Support (Bottom): 1x 120mm/140mm (1x 120mm, 1300 rpm included)
Radiator Support (Side): 120, 140, 240, 280mm up to 120mm thick
Radiator Support (Top): 120, 240, 360mm/li>
Radiator Support (Rear): 120mm
CPU Cooler Height: 183mm
PCI Express Riser Cable: 4.0 x 16 (included)
Dust Filters: Top, Side, Bottom (x2)
