Fractal Design Ridge SSF Case - Mini ITX, 2x140mm Fans, White

Product Type:

Cases

Type Detail:

Micro ATX

Manufacturer:

Fractal Design

Manufacturer #:

FD-C-RID1N-02

Part Status:

Special Order Only

Milwaukee PC SKU:

57588

Price:

$172.99

Quick Tech Specs

Type:	Small Form Factor
Form Factor:	Mini ITX
Brand:	Fractal Design
P.Supply Wattage:	NONE
P.Supply Incl.:	NONE
Expantion Slots:	3 Slots
External 2.5" Bays:	NONE
External 3.5" Bays:	NONE
External 5.25" Bays:	NONE
Internal 2.5" Bays:	4 Bays
Internal 3.5" Bays:	NONE
Internal 3.5"/2.5" Bays:	NONE
Front USB-C:	1-Port
Front USB 3.+ Ports:	2 Ports
Front USB 2.0 Ports:	NONE
Material:	Steel
180mm Fans:	None
Window:	NONE
80mm Fans:	NONE
90/92mm Fans:	NONE
120mm Fans:	NONE
140mm Fans:	2 Fans
200+mm Fans:	NONE
Warranty:	2 Years

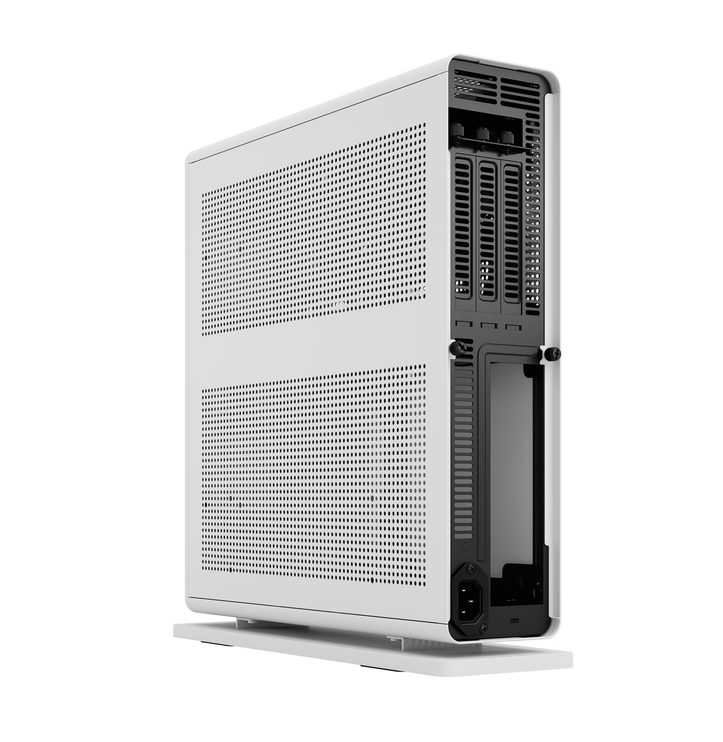

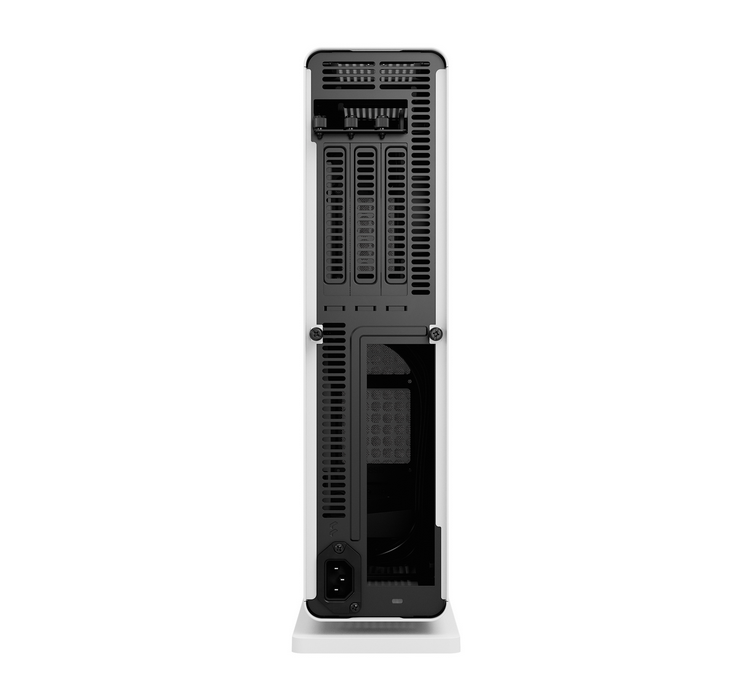

Fractal Design Ridge SSF Case White

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.

Highlights

Motherboard compatibility: Mini ITX
Expansion slots: 3
Dedicated 2.5" drive mounts x 4
Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
Side fan: 2 x 120/140 mm (2 x PWM Aspect fan 140 mm included)
Top fan: 3 x 80 mm (not included)
Cable routing space: 13,8 mm (behind PSU)
Tool-less slide with thumbscrew lock: Side panels
Captive thumbscrews: Side panels
Left side panel: Steel
Right side panel: Steel
Power supply type: SFX, SFX-L
PSU max length: SFX-L
Side radiator: 120 mm when =175mm long GPUs are installed (280 mm without GPU)
GPU max length: 325 mm with SSD installed. 335 mm without SSD installed.
GPU max height: 125 mm with top fan(s) installed, 137 mm without top fans
GPU max thickness: 57 mm with 2x 140 mm fans installed, 82 mm without side fans
CPU cooler max height: 70 mm
Warranty: 2 Years
