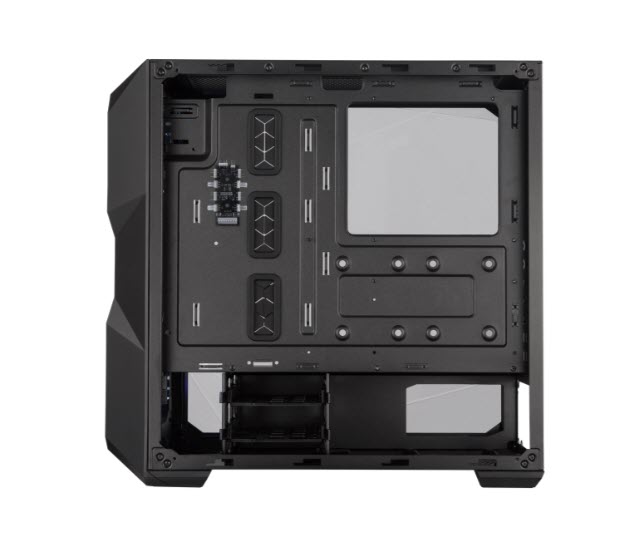

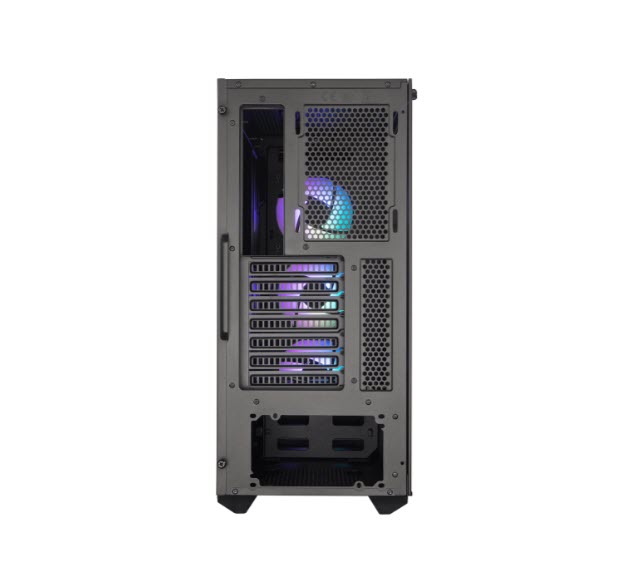

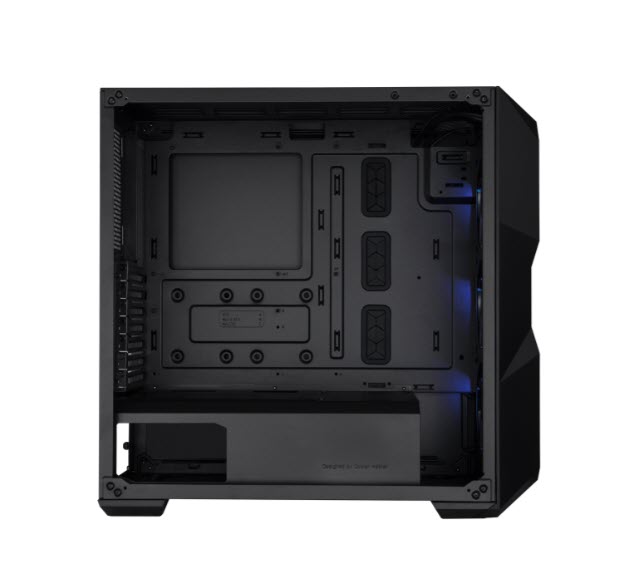

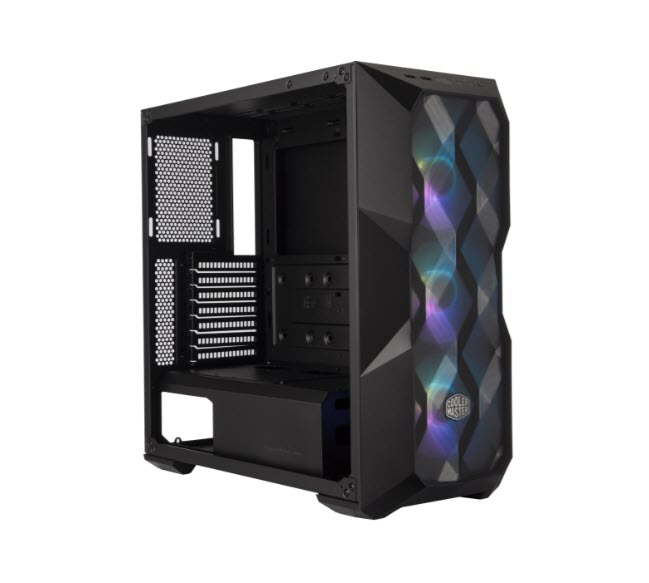

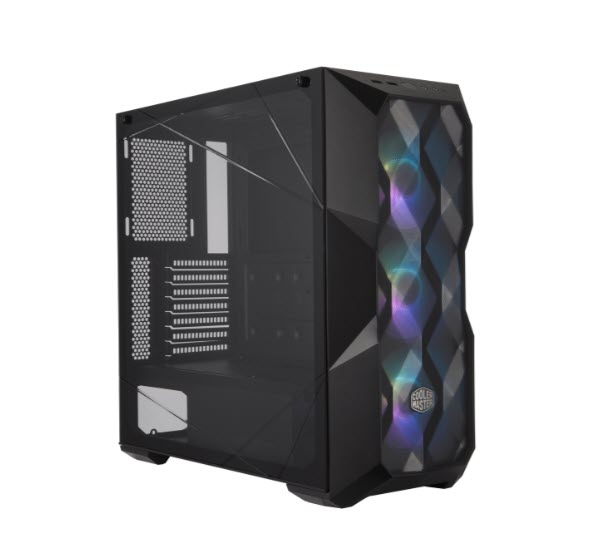

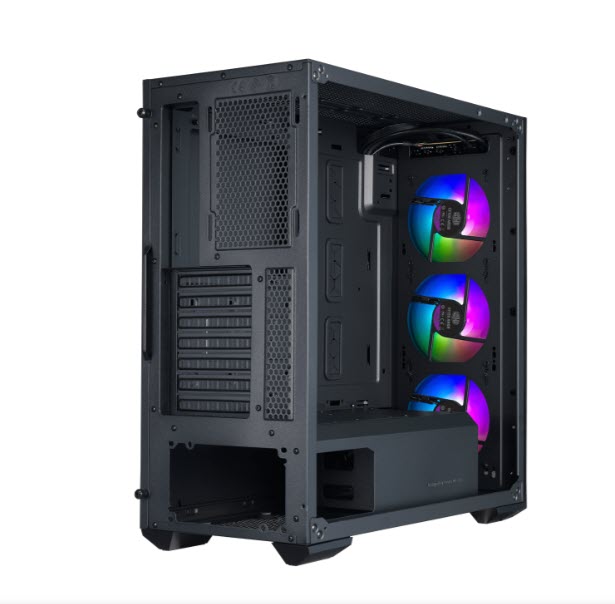

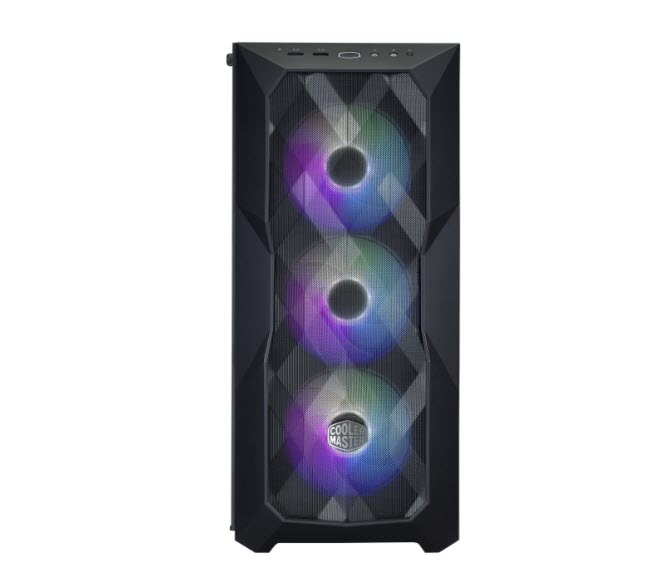

Cooler Master MasterBox TD500 Mesh ARGB - Mid ATX, No PS
Product Type:
Cases
Type Detail:
Mid ATX
Manufacturer:
Cooler Master
Manufacturer #:
MCB-D500D-KGNN-S01
Part Status:
Current Stock
Milwaukee PC SKU:
57223
Price:
$119.99

Quick Tech Specs

Form Factor: ATX
Type: Mid Tower
Brand: Cooler Master
P.Supply Location: Bottom
P.Supply Wattage: NONE
P.Supply Incl.: NONE
Expantion Slots: 7 Slots
External 5.25" Bays: NONE
External 3.5" Bays: NONE
External 2.5" Bays: NONE
Internal 3.5" Bays: NONE
Internal 2.5" Bays: 4 Bays
Internal 3.5"/2.5" Bays: 2 Bays
Front USB 2.0 Ports: NONE
Front USB 3.+ Ports: 2 Ports
Material: Steel
Window: YES
80mm Fans: NONE
90/92mm Fans: NONE
120mm Fans: 3 Fans
140mm Fans: NONE
200+mm Fans: NONE
Warranty: 2 Years


CM MasterBox TD500 Mesh ARGB

Highlights

  • SIZE: Mid Tower
  • MATERIALS: Steel, Plastic, Tempered Glass, Mesh
  • MOTHERBOARD SUPPORT: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
  • EXPANSION SLOTS: 7
  • 2.5" / 3.5" DRIVE BAYS (COMBO): 2
  • 2.5" DRIVE BAYS: 4 (2+2 combo)
  • I/O PANEL: 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S01 versions), 1x ARGB 2-to-3 splitter
  • PRE-INSTALLED FANS - FRONT: 3x 120mm ARGB Fans
  • FAN SUPPORT - TOP: 3x 120mm, 2x 140mm
  • FAN SUPPORT - FRONT: 3x 120mm, 2x 140mm
  • FAN SUPPORT - REAR: 1x 120mm
  • RADIATOR SUPPORT - TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height)
  • RADIATOR SUPPORT - FRONT: 120mm, 140mm, 240mm, 280mm, 360mm
  • RADIATOR SUPPORT - REAR: 120mm
  • CLEARANCE - CPU COOLER: 165mm/6.49"
  • CLEARANCE - PSU: 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
  • CLEARANCE - GFX: 410mm/16.1"
  • CABLE ROUTING: 19mm/0.74"
  • DUST FILTERS: Top, Bottom, Front
  • POWER SUPPLY SUPPORT: Bottom mount, ATX
  • WARRANTY: 2 years
