Fractal Design Define Nano S mini-ITX, No PS, 2xFans
Product Type:
Cases
Type Detail:
Mini-ITX
Manufacturer:
Fractal Design
Manufacturer #:
FD-CA-DEF-NANO-S-BK
Part Status:
Special Order Only
Milwaukee PC SKU:
57106
Price:
$85.99

Quick Tech Specs

Form Factor: Mini ITX
Type: Mini Tower
Brand: Fractal Design
P.Supply Incl.: NONE
P.Supply Wattage: NONE
P.Supply Location: Bottom
Expantion Slots: 2 Slots
External 2.5" Bays: NONE
External 5.25" Bays: NONE
External 3.5" Bays: NONE
Internal 3.5" Bays: NONE
Internal 2.5" Bays: 2 Bays
Internal 3.5"/2.5" Bays: 2 Bays
Front USB 2.0 Ports: NONE
Front USB 3.+ Ports: 2 Ports
Material: Steel
180mm Fans: None
Window: NONE
80mm Fans: NONE
90/92mm Fans: NONE
120mm Fans: 1 Fan
140mm Fans: 1 Fan
200+mm Fans: NONE
Warranty: 2 Years

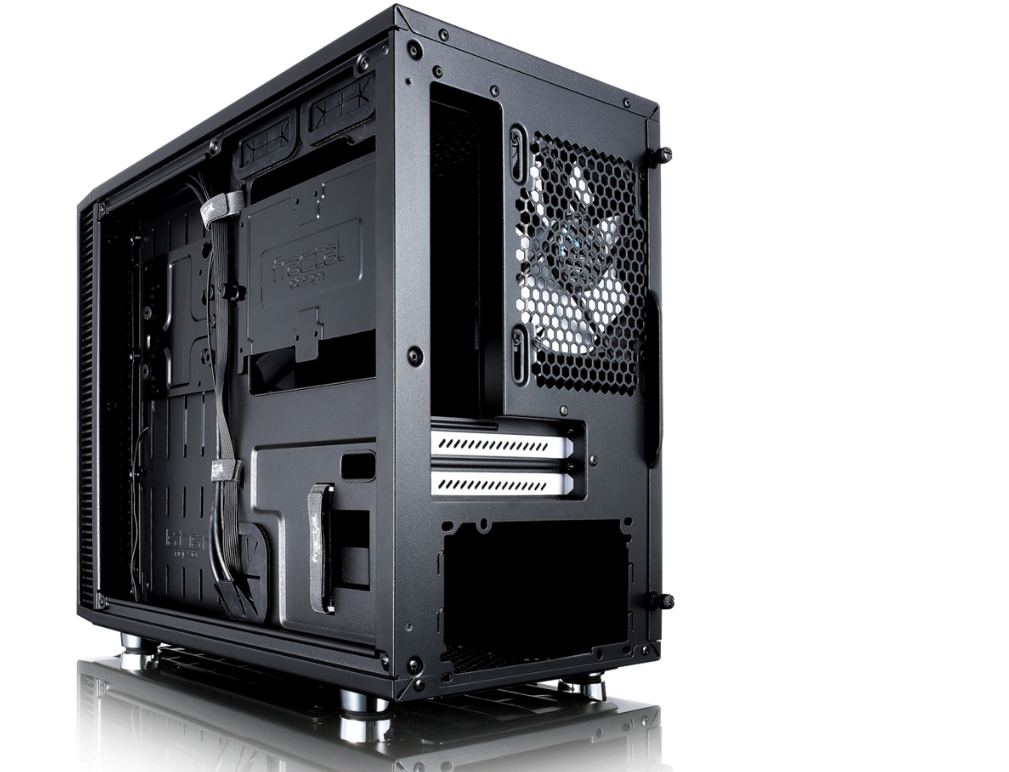

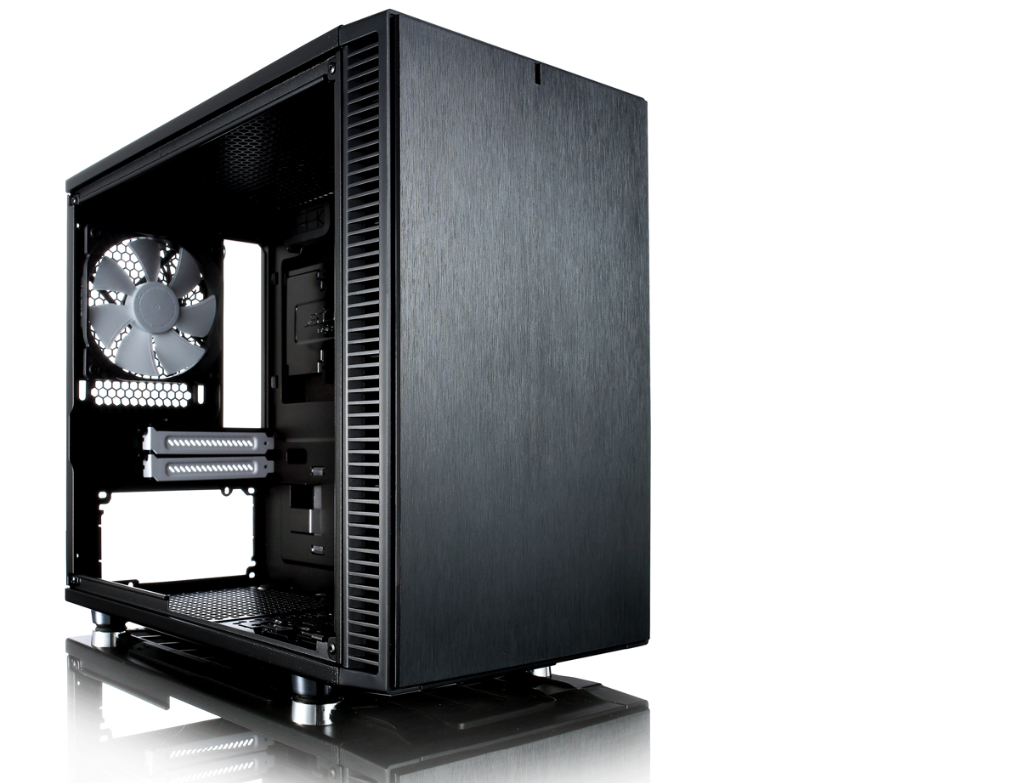

Fractal Design Define Nano S

Highlights

  • Form Factor: Mini Tower
  • ITX motherboard compatibility
  • 2 expansion slots
  • 2 - 3.5" HDD/2.5" SSD positions; 2 - 2.5" dedicated SSD unit positions (fits SSDs up to 13mm thick)
  • I/O: 2 x USB 3.0, Audio in/out
  • 6 - Fan positions (1 Fractal Design Dynamic GP14 140mm fan + 1 Fractal Design Dynamic GP-12 120mm fan included
  • Filtered fan slots in the front and bottom (ejects from the front of the case)
  • CPU coolers up to 162mm in height
  • ATX PSUs up to 160mm deep (shorter PSUs recommended for easier cable management)
  • Graphics cards up to 315mm in length with front fans mounted (Cards wider than the dual slot bracket are not recommended)
  • 17 - 35mm of space for cable routing behind the motherboard plate
  • Velcro straps included for easy cable management
  • Both side panels and rear HDD/SSD brackets feature smart captive thumbscrews
  • Dense sound dampening material on front, left and right side panels
  • ModuVent™ on top of case for further silent computing or additional ventilation
