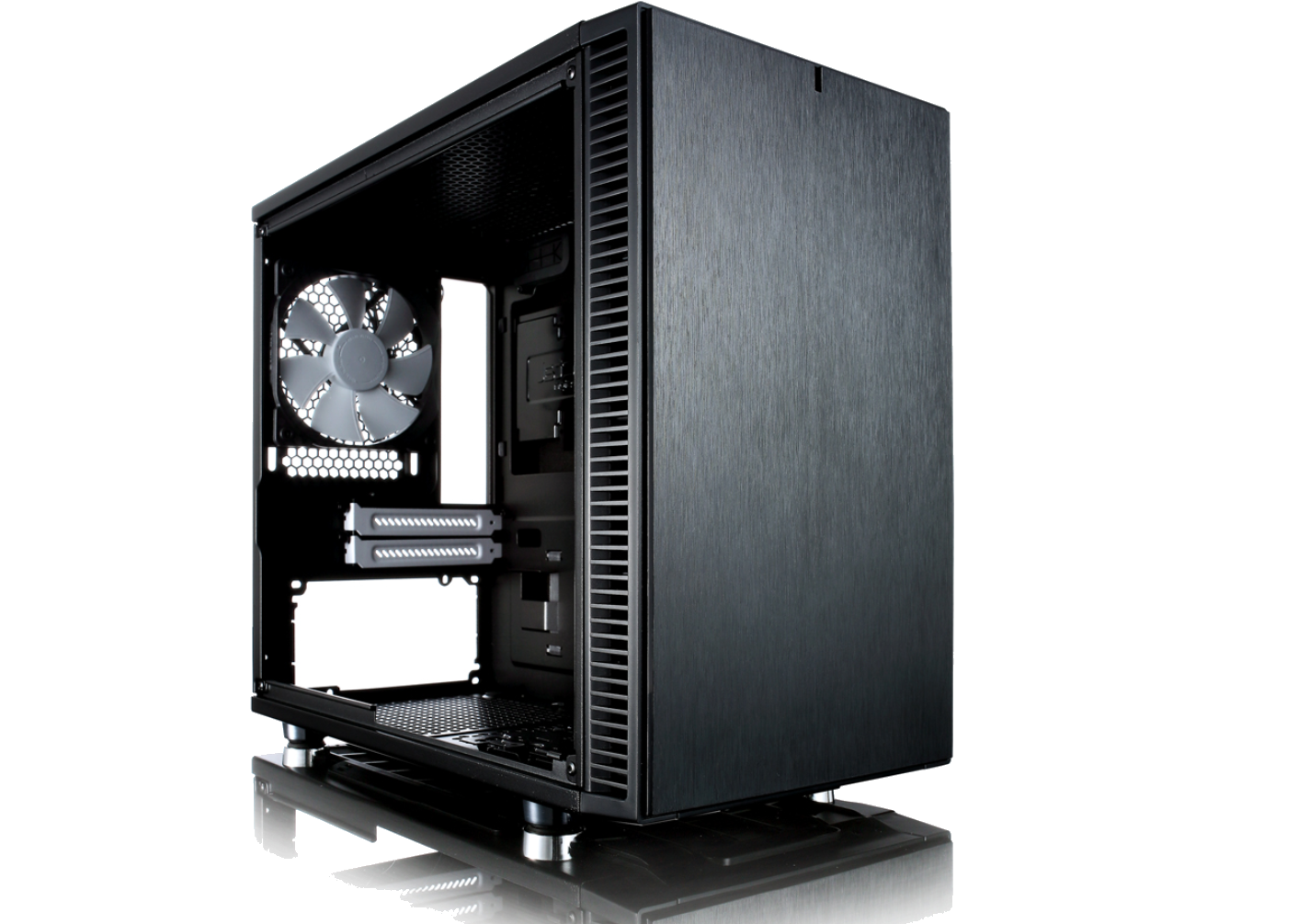

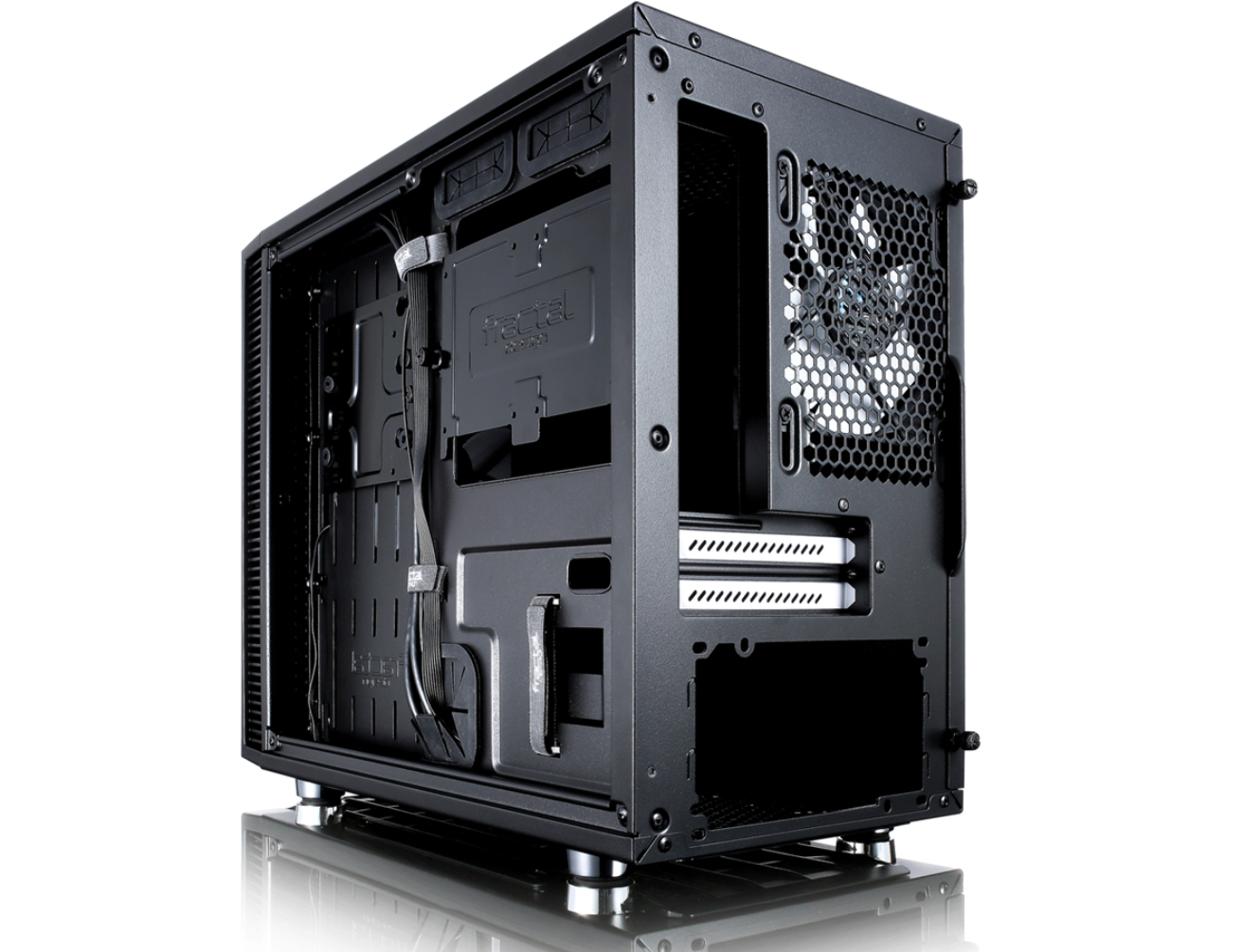

Fractal Design Define Nano S ITX, Mini Tower
Product Type:
Cases
Type Detail:
Other Cases
Manufacturer:
Fractal Design
Manufacturer #:
DEF-NANO-S-BK
Part Status:
Discontinued
Milwaukee PC SKU:
56886
Price:
$80.99

The Define Nano S is a great ITX solution that mirros the layout first seen in the Define S with plenty of room for its small size with enough space for a variety of air and water cooling options. Features professional grade sound dampening material throughout and ModuVent technology on the top vents.

Quick Tech Specs

Form Factor: Mini ITX
Type: Mini Tower
Brand: Fractal Design
P.Supply Incl.: NONE
P.Supply Wattage: NONE
P.Supply Location: Bottom
Expantion Slots: 2 Slots
External 2.5" Bays: NONE
External 5.25" Bays: NONE
External 3.5" Bays: NONE
Internal 3.5" Bays: NONE
Internal 2.5" Bays: 2 Bays
Internal 3.5"/2.5" Bays: 2 Bays
Front USB 2.0 Ports: NONE
Front USB 3.+ Ports: 2 Ports
Material: Steel
Window: NONE
80mm Fans: NONE
90/92mm Fans: NONE
120mm Fans: 1 Fan
140mm Fans: 1 Fan
200+mm Fans: NONE


Fractal Design Define Nano S ITX, Mini Tower

Highlights

  • Form Factor: Mini Tower
  • Motherboard Support: ITX
  • Expansion Slots: 2
  • Drive Bays: 2 x 2.5", 2 x 2.5" or 3.5"
  • Front Ports: 2 x USB 3.0, Audio in/out
  • Fans: 6 - Fan positions (1 Fractal Design Dynamic GP14 140mm fan + 1 Fractal Design Dynamic GP-12 120mm fan included)
  • CPU coolers up to 162mm in height
  • Graphics cards up to 315mm in length with front fans mounted (Cards wider than the dual slot bracket are not recommended)
  • Dust filters: Bottom and front intakes
  • ATX PSUs up to 160mm deep (shorter PSUs recommended for easier cable management)
