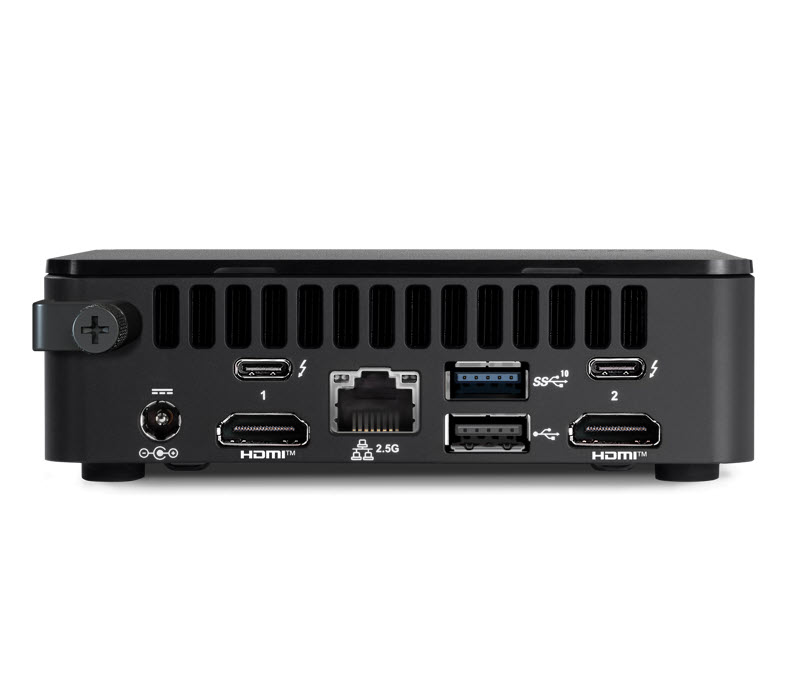

Intel NUC 13 Pro - i7-1360P (3.7/5.0GHz, 4P/8E/16t), 2xDDR4, M.2, Wi-Fi 6E, BT5.3, 2.5GbLAN, TB4, 2xHDMI, 2xUSB-C/DP
Product Type:
Barebones
Type Detail:
PC Chassis
Manufacturer:
Intel
Manufacturer #:
RNUC13ANKI7000U
Part Status:
Special Order Only
Milwaukee PC SKU:
460469
Price:
$735.99



Intel NUC 13 Pro - i7-1360P

Essentials

  • Processor Included: Intel® Core™ i7-1360P Processor 13th Gen - 12 total cores/4 P-cores/8 E-cores/16 threads/10 MB Intel® Smart Cache
  • CPU Speed: 3.70GHz up to 5.00GHz
  • Supported Operating Systems: Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu
  • Included Items: VESA bracket

Memory & Storage

  • Max Memory Size (dependent on memory type): 64 GB
  • # of Memory Slots: 2
  • Memory Types: DDR4-3200MHz 1.2V SODIMMs
  • Max # of Memory Channels: 2
  • ECC Memory Supported: No
  • Internal Drive Form Factor: M.2 SSD
  • # of Internal Drives Supported: 2
  • M.2 Card Slot (storage): 22x80 NVMe (M); 22x42 SATA (B)

I/O Specifications

  • Graphics Output: 2 x HDMI 2.1 TMDS Compatible, 2 x DP 1.4a via Type C
  • # of Displays Supported: 4
  • # of Thunderbolt™ Ports: 2 x Thunderbolt™ 4
  • # of USB Ports: 4
  • USB Configuration: Front: 2 x USB 3.2, Rear: 2 x USB 4 (type C), 1 x USB 3.2, 1 x USB 2.0, Internal: 1 x USB 3.2 on m.2 22x42 (pins), 2 x USB 2.0 (headers)
  • Serial Port via Internal Header: No
  • Audio (back channel + front channel): Front panel: 3.5mm headphone/mic jack
  • Integrated LAN: Intel® Ethernet Controller i226-V
  • Wireless Included: Intel® Wi-Fi 6E AX211 (Gig+)
  • Bluetooth Version: 5.3
  • M.2 Card Slot (wireless): 22x30 (E)
  • Additional Headers: Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector

Expansion Options

  • PCI Express Revision: Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
  • PCI Express Configurations: PCIe x4 Gen 4: M.2 22x80 (key M), PCIe x1 Gen 3: M.2 22x42 (key B), PCIe x1: M.2 22x30 (key E)
  • DC Input Voltage Supported: 12-20 VDC
  • Chassis Dimensions: 117 x 112 x 37 [mm] (LxWxH)
  • Board Form Factor: UCFF (4" x 4")

Advanced Technologies

  • Intel® HD Audio Technology: Yes
  • Intel® Optane™ Memory Supported: No
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel® Virtualization Technology (VT-x): Yes

Security & Reliability

  • Intel® Platform Trust Technology (Intel® PTT): Yes
  • Intel® ME Firmware Version: 16.1
  • Intel® AES New Instructions: Yes
