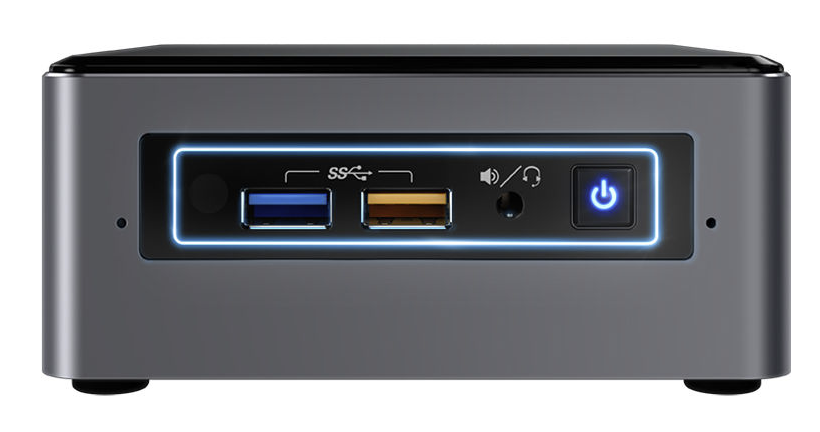

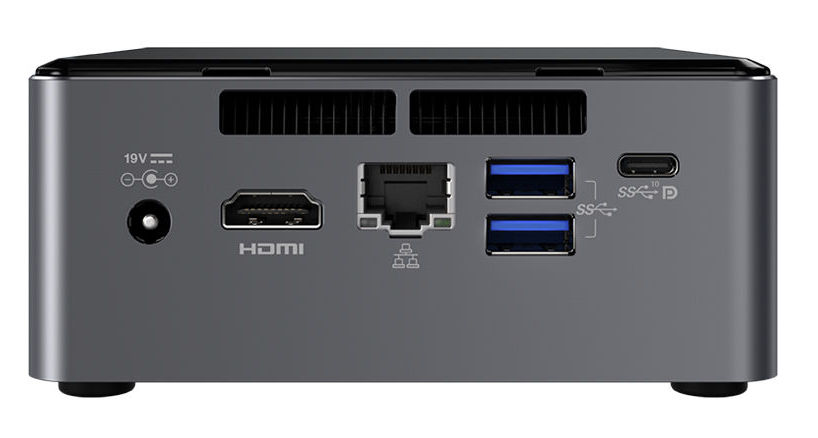

Intel NUC 7 Home (i3) - i3-7100U, 4GB, 1TB w/16GB Optane

Essentials

• CPU: Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
• Other features: 16GB Intel® Optane™ Memory M.2 module pre-installed, 1TB HDD, Windows® 10 x64 Home, includes USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones

Memory & Storage

• Included Memory and Storage: 1x 4GB DDR4-2400
• Max Memory Size (dependent on memory type): 32 GB
• Memory Types: DDR4-2133 1.2V SO-DIMM
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 34.1 GB/s
• Max # of DIMMs: 2
• ECC Memory Supported: No

Graphics Specifications

• Integrated Graphics: Yes
• Graphics Output: HDMI 2.0a; USB-C (DP1.2)
• # of Displays Supported: 3

Expansion Options

• PCI Express Revision: Gen3
• PCI Express Configurations: M.2 slot with PCIe x4 lanes
• Removable Memory Card Slot: SDXC with UHS-I support
• M.2 Card Slot (storage): 22x42/80

I/O Specifications

• # of USB Ports: 6
• USB Configuration: 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
• USB Revision: 2.0, 3.0
• USB 2.0 Configuration (External + Internal): 0 + 2
• USB 3.0 Configuration (External + Internal): 2B 2F + 0
• Total # of SATA Ports: 2
• Max # of SATA 6.0 Gb/s Ports: 2
• Audio (back channel + front channel): 7.1 digital (HDMI mDP); L+R+mic (F)
• Integrated LAN: 10/100/1000
• Integrated Wi-Fi: Intel® Wireless-AC 8265 + BT 4.2
• Integrated Bluetooth: Yes
• Consumer Infrared Rx Sensor: Yes
• Additional Headers: CEC, 2x USB2.0, FRONT_PANEL

Advanced Technologies

• Intel® Optane™ Memory Supported: Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® vPro™ Technology: No
• TPM: No
• Intel® HD Audio Technology: Yes
• Intel® Rapid Storage Technology: Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Platform Trust Technology (Intel® PTT): Yes

Security & Reliability

• Intel® AES New Instructions: Yes
• Warranty: 3 Years Limited
