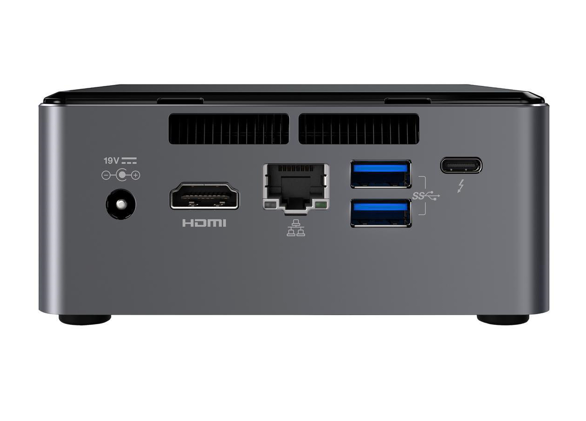

Intel NUC - Core i5-7260U (2.2), Intel 640, 2 DDR SODIMM, m.2 Sata and 2.5, NIC, HDMI, BT, WL, 4x USB 3.0
Product Type:
Barebones
Type Detail:
PC Chassis
Manufacturer:
Intel
Manufacturer #:
BOXNUC7I5BNH
Part Status:
Discontinued
Milwaukee PC SKU:
460381
Price:
$499.99

BOXED INTEL NUC KIT, NUC7I5BNH, SINGLE PACK



Intel NUC - Core i5-7260U (2.2), Intel 640, 2 DDR SODIMM, M.2 SATA and 2.5, NIC, HDMI, BT, WL, 4x USB 3.0


Essentials

  • Board Form Factor: UCFF (4" x 4")
  • Internal Drive Form Factor: M.2 and 2.5" Drive
  • Lithography: 14 nm
  • DC Input Voltage Supported: 12-19 VDC
  • Socket: Soldered-down BGA
  • # of Internal Drives Supported: 2
  • TDP: 15 W
  • Description: Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones
  • Warranty Period: 3 yrs

Memory & Storage

  • Max Memory Size (dependent on memory type): 32 GB
  • Max # of Memory Channels: 2
  • Max # of DIMMs: 2
  • Memory Types: DDR4-2133 1.2V SO-DIMM
  • Max Memory Bandwidth: 34.1 GB/s
  • ECC Memory Supported: No

Graphics Specifications

  • Integrated Graphics: Yes
  • # of Displays Supported: 3
  • Graphics Output: HDMI 2.0a; USB-C (DP1.2)

I/O Specifications

  • # of USB Ports: 6
  • USB Revision: 2.0, 3.0
  • USB 3.0 Configuration (External + Internal): 2B 2F + 0
  • Max # of SATA 6.0 Gb/s Ports: 2
  • Audio (back channel + front channel): 7.1 digital (HDMI mDP); L+R+mic (F)
  • Integrated Wireless: Intel® Wireless-AC 8265 + Bluetooth 4.2
  • Consumer Infrared Rx Sensor: Yes
  • # of Thunderbolt™ 3 Ports: 1
  • USB Configuration: 2 x front and 2 x rear USB 3.0; 2 x USB 2.0 via internal headers
  • USB 2.0 Configuration (External + Internal): 0 + 2
  • Total # of SATA Ports: 2
  • RAID Configuration: 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
  • Integrated LAN: Intel® Ethernet Connection I219-V
  • Integrated Bluetooth: Yes
  • Additional Headers: CEC, 2x USB2.0, FRONT_PANEL

Expansion Options

  • PCI Express Revision: Gen3
  • Removable Memory Card Slot: microSDXC with UHS-I support
  • PCI Express Configurations: M.2 slot with PCIe x4 lanes
  • M.2 Card Slot (storage): 22x42/80

Advanced Technologies

  • Intel® Optane™ Memory Supported: Yes
  • Intel® vPro™ Platform Eligibility: No
  • Intel® HD Audio Technology: Yes
  • Intel® Virtualization Technology (VT-x): Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • TPM: No
  • Intel® Rapid Storage Technology: Yes
  • Intel® Platform Trust Technology (Intel® PTT): Yes

Security & Reliability

  • Intel® AES New Instructions: Yes
