ThinkCentre M90t Gen 3

Highlights

• OS: Windows® 11 Pro 64-bit
• Form Factor: Tower (17L)
• CPU: Intel® Core™ i5-12500 - 6-cores/12 threads/18 MB Intel® Smart Cache
• CPU Speed: 3.00GHz up to 4.60GHz
• Chipset: Intel® Q670 Chipset
• Graphics: Integrated Intel® UHD Graphics 770
• Memory: 1 x 16 GB UDIMM DDR5-4400MHz
• Memory Slots: Four DDR5 DIMM slots, dual-channel capable
• Max Memory: Up to 128 GB DDR5
• Storage: 512 GB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal
• Storage Support: Up to five drives, 2 x 2.5"/3.5" HDD + 1 x 2.5" HDD + 2 x M.2 SSD, 2.5" HDD up to 1 TB each, 3.5" HDD up to 2 TB, M.2 SSD up to 2 TB
• Expansion Slots: One PCIe® 4.0 x16, full-height, length = 268.5mm, height = 114.55mm, One PCIe® 4.0 x16 (x4 signal), full-height, length = 205mm, height = 114.55mm, Two PCIe® 3.0 x1, full-height, length = 205mm, height = 114.55mm, Three M.2 slots (one for WLAN, two for SSD)
• Optional Bay: None
• Card Reader: None
• Optical: DVD±RW
• Audio Chip: High Definition (HD) Audio, Realtek® ALC897Q-CG codec
• Speakers: 2 W x 1
• Power Supply: 260W 90%
• Keyboard: USB Traditional Keyboard, Black
• Mouse: USB Calliope Mouse, Black
• Ethernet: Integrated 100/1000M
• WLAN + Bluetooth: Intel® Wi-Fi® 6 AX201, 11ax 2x2 + BT5.1

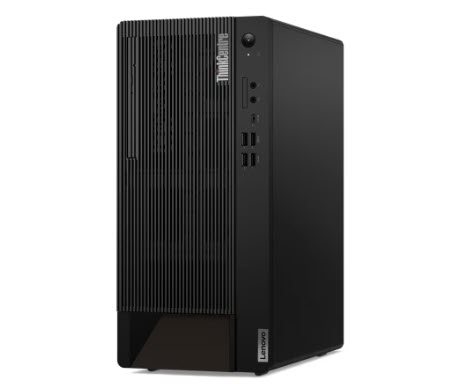

• Front Ports: 1 x USB-C® 3.2 Gen 2 (support data transfer and 15W charging), 2 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2, 1 x headphone / microphone combo jack (3.5mm), 1 x microphone (3.5mm)

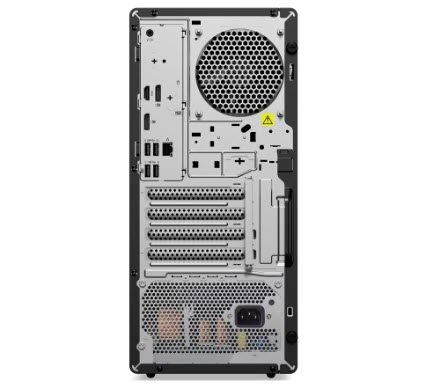

• Rear Ports: 1 x HDMI® 2.1 TMDS, 2 x DisplayPort™ 1.4, 4 x USB 2.0, 1 x Ethernet (RJ-45), 1 x line-out (3.5mm)
• Optional Rear Ports (configured): 1 x DP 1.2 (Flex IO)
• SECURITY & PRIVACY: Security Chip - Discrete TPM 2.0, TCG certified, Fingerprint Reader - No fingerprint reader, Physical Locks - Kensington® Security Slot™, 3 x 7 mm, Padlock Loop
• System Management: Non-vPro®
• Mil-Spec Test: MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
• Warranty: 3-year, Onsite
• Included Upgrade: 3Y Premier Support Upgrade from 3Y Onsite (5WS0V07841)
