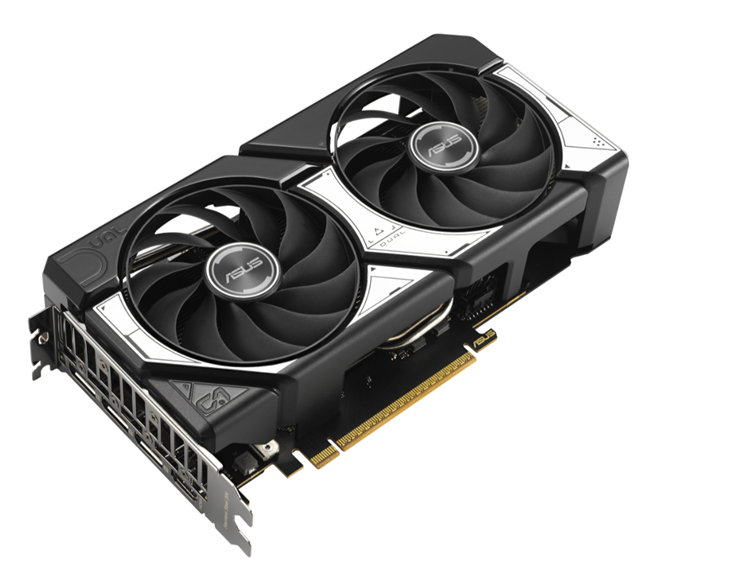

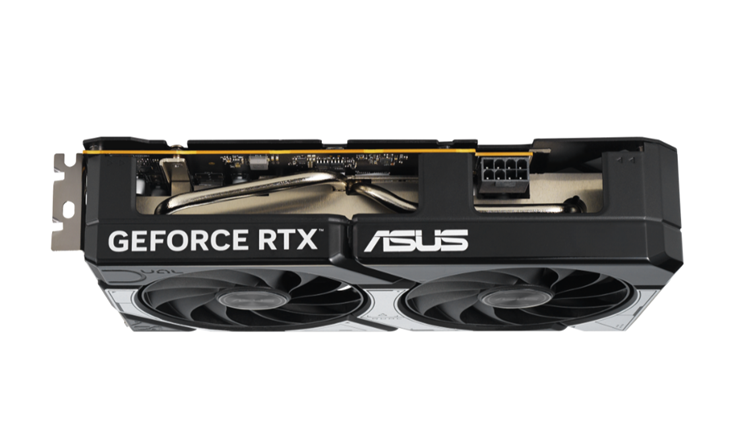

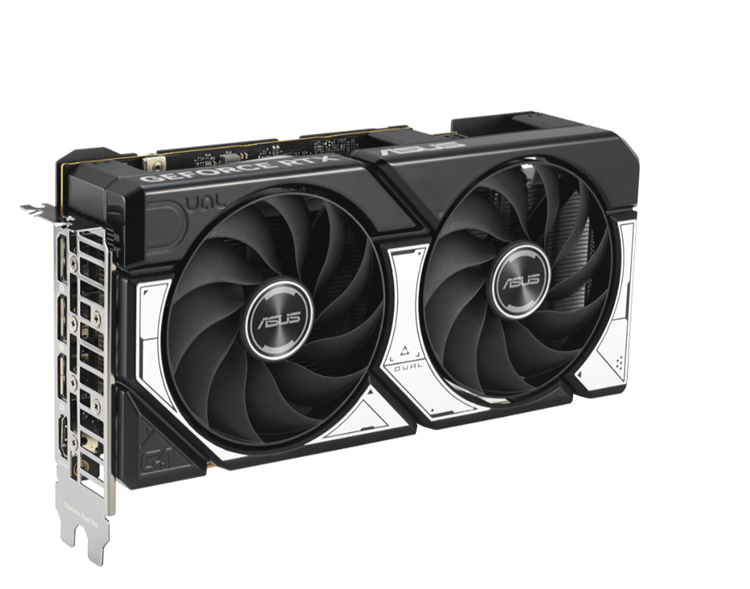

ASUS Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition

Highlights

ASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

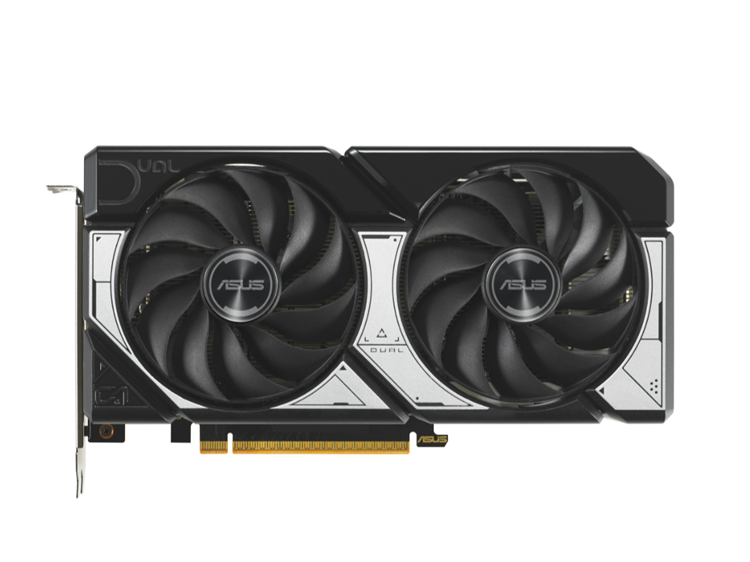

Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology - To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.

Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

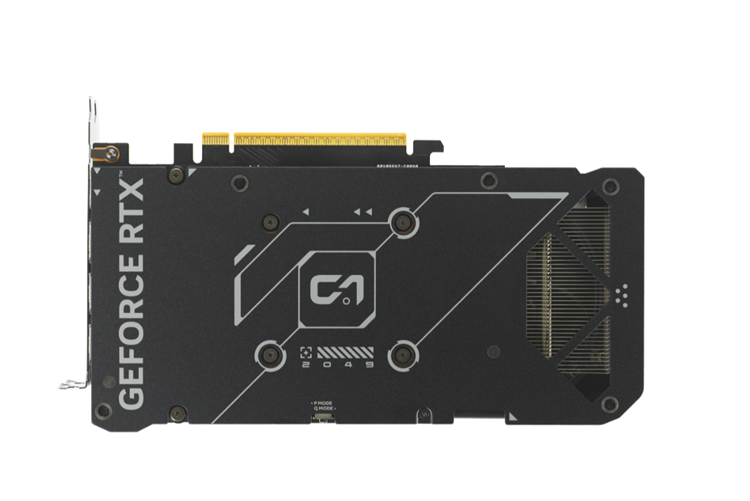

A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows

Specifications

• GPU -GeForce Dual RTX 5060
• NVIDIA GeForce RTX 50 Series
• Architecture - Blackwell
• Boost Clock - OC mode: 2565MHz - Default mode: 2535MHz (Boost Clock)
• CUDA Cores - 3840 Cores
• Memory Size - 8 Gb GDDR7
• Effective Memory Clock - 28 Gbps
• Memory Interface - 128-bit
• DirectX - DirectX 12 Ultimate
• OpenGL - OpenGL 4.6
• Max Resolution - 7680 x 4320
• CrossFireX Support - No
• SLI Support - No
• Virtual Reality Ready - Yes
• Cooler - Double Fans
• Recommended PSU Wattage - 550W
• Power Connector - 8-pin
• HDCP Ready - Yes
• Form Factor - ATX
• Max GPU Length - 228 mm
• Card Dimensions (L x H) - 228 x 123 x 50 mm - 8.98 x 4.84 x 1.97 inches
• Slot Width - 2.5 Slots
• In The Box - 1 x Speedsetup Manual - 1 x Thank You Card
• Warranty: 3 years Limited
