Radeon™ RX 9070 GAMING OC 16G
Highlights
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
Extended heatsink allows air to pass through, providing better heat dissipation.
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

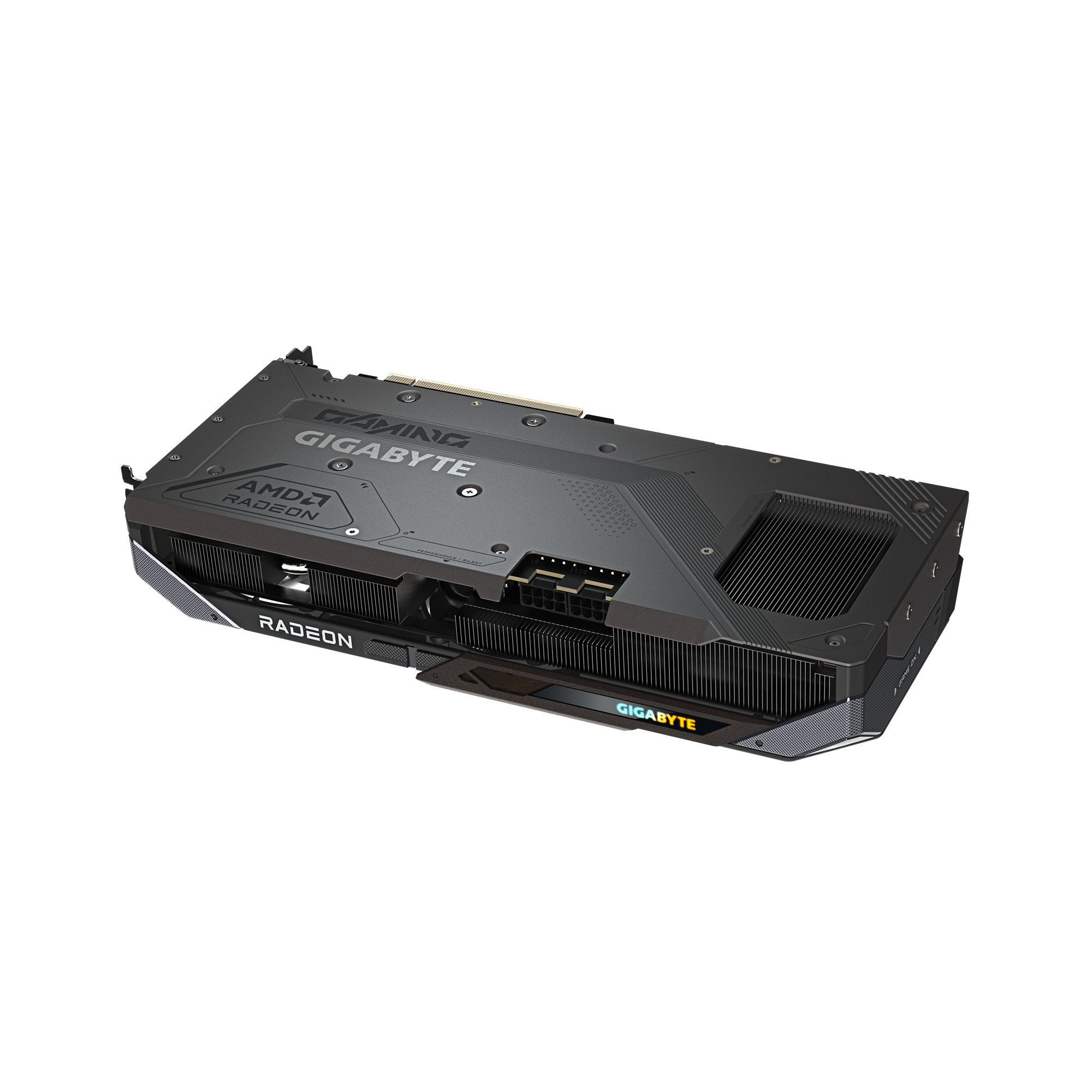

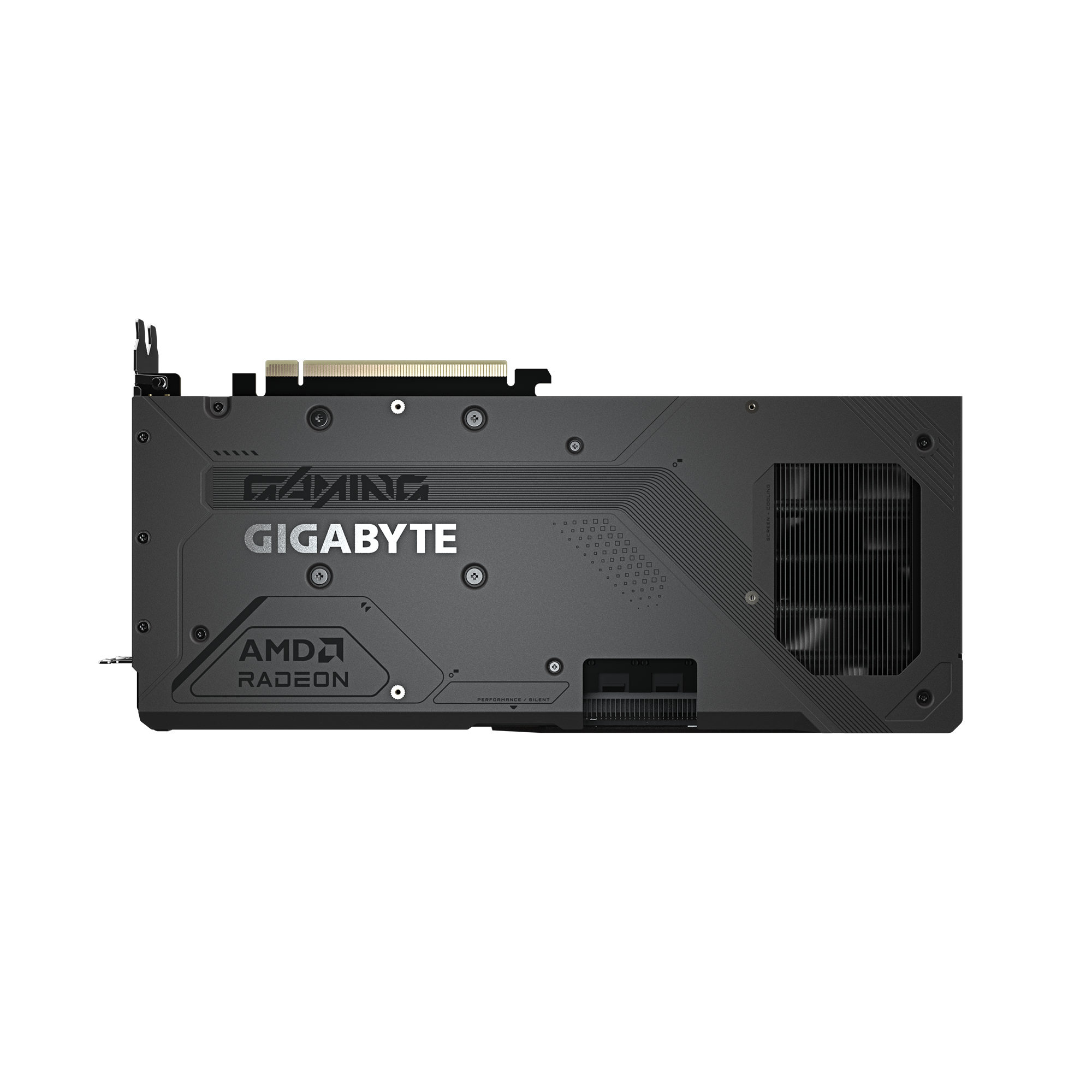

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
- Graphics Processing - Radeon RX 9070
- Core Clock - 2210 MHz (Reference card : 2700 MHz)
- Stream Processors - 3584 ( 56CU)
- Memory Size - 1 GB GDDR6
- Memory Clock - 20 Gbps
- Memory Bus - 256 bit
- Card Bus - PCI-E 5.0
- Digital max resolution - 7680 x 4320
- Multi-view - 4
- Card size - L=288 W=132 H=50 mm
- PCB Form - ATX
- DirectX - DirectX 12 API
- OpenGL - 4.6
- Recommended PSU - 750 W
- Power Connectors - 8 Pin x 2

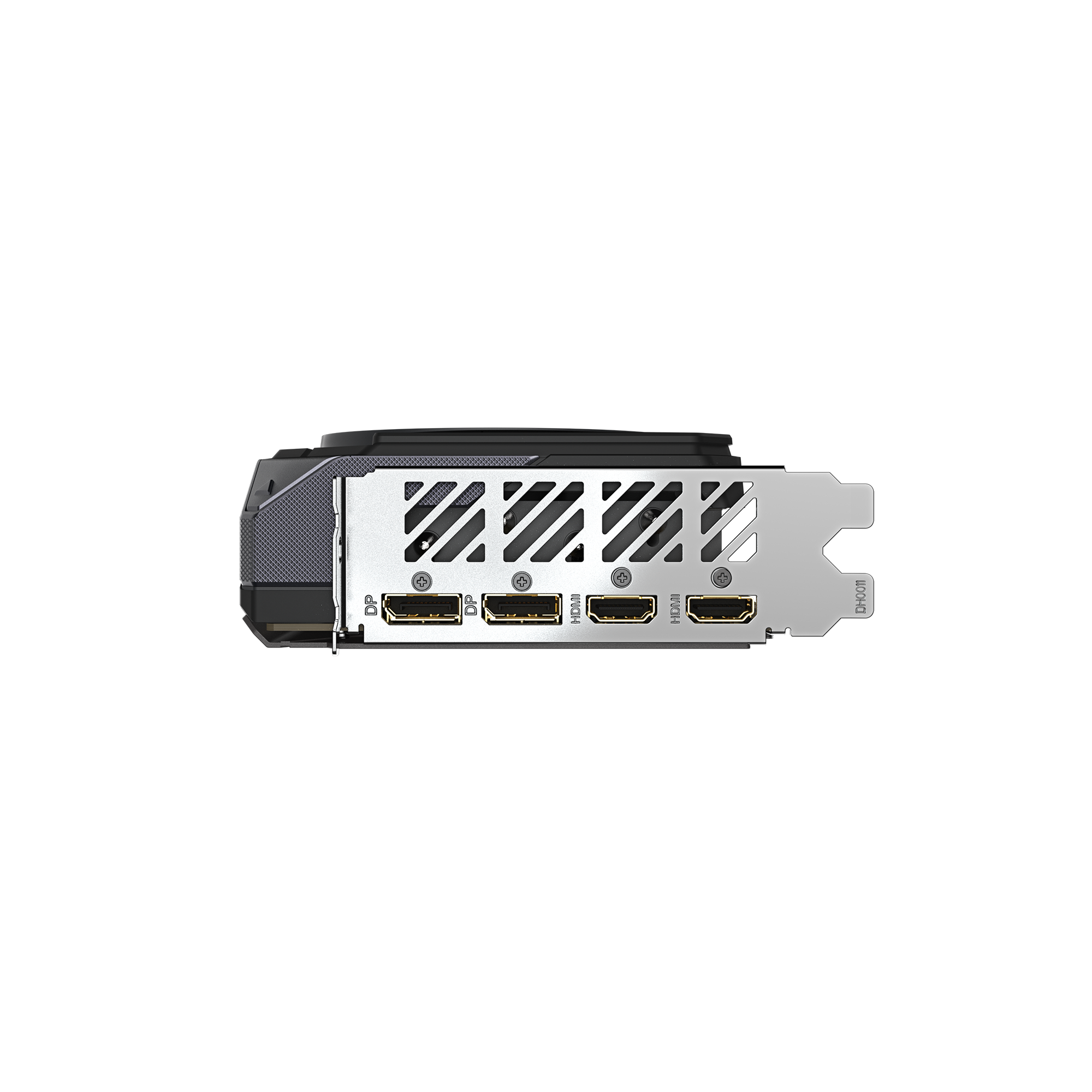

- Output - DisplayPort 2.1a x 2 - HDMI 2.1b x 2
- Accessories - VGA manual
- Warranty - 3 Years
